Custom 4.5 mm / 0.177 in PVC Strip Eyelet Punch Die for Pleated Screen Production KLP00020SinDEL

4.5 mm Eyelet Drilling Die for Precise Hole Preparation

Compatibility and Usage Considerations for the 4.5 mm Eyelet Drilling Die

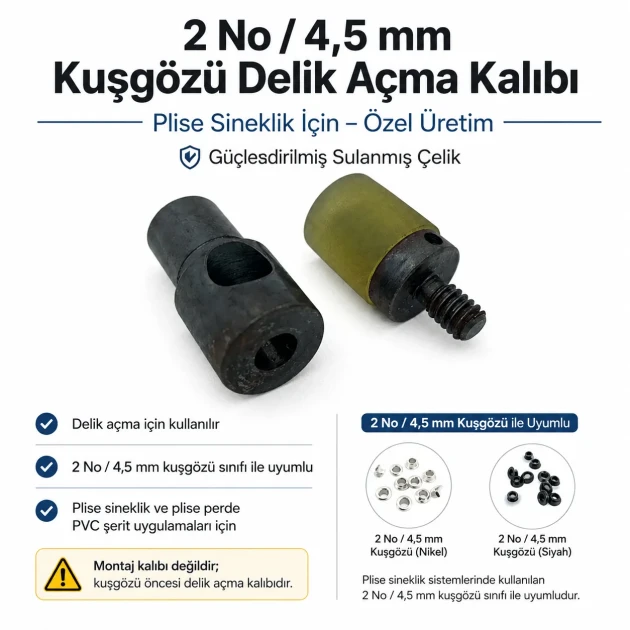

This custom punch die prepares clean round openings in narrow PVC strips before 4.5 mm / 0.177 in pleated screen eyelet installation.

The product-specific cutting profile and heat-treated hardened steel construction help provide controlled and repeatable hole preparation during screen production.

16.09 USD
18.54 USD
Ex Tax: 13.41 USD
  • Stock Quantity: 999
  • Model: KLP00020SinDEL

Available Options

Product Reviews

No reviews yet. Be the first to write a review!

Q&A

Total Questions 0 Answered 0 Unanswered 0

Custom PVC Strip Punch Die for Pleated Screen Manufacturers

This custom punch die is designed to prepare round installation holes in the narrow PVC strips used in pleated insect screens and pleated blind systems.

The prepared hole is intended for an eyelet in the 4.5 mm / 0.177 in opening class. A clean, centred hole helps the eyelet sit more evenly and preserves more supporting material around the installation point.

What Does the Tool Do?

  • Prepares a round hole in a PVC strip
  • Supports repeatable hole placement in production
  • Reduces irregular hand-cut openings
  • Prepares the strip before eyelet and washer setting

This product does not install the eyelet. A separate setting die is required after punching.

Technical Information

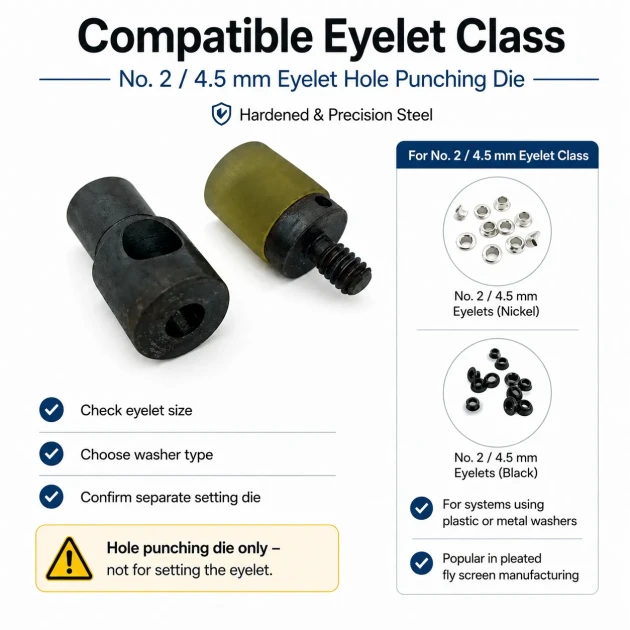

Matching Eyelet Class 4.5 mm / 0.177 in
Hole Shape Round
Primary Industry Pleated insect screen and pleated blind production
Application Surface Narrow PVC strips
Material Heat-treated hardened steel
Eyelet Setting Function No

Why Is Correct Hole Preparation Important?

An oversized opening may reduce the PVC area held between the eyelet and washer. A small or irregular opening may crack or deform when the eyelet is inserted.

The hole should also remain far enough from the strip edge to reduce the risk of tearing during cord movement and screen operation.

Related Products and Categories

Product Scope

This product is the custom PVC-strip punch die. Eyelets, washers, setting dies, PVC strips and presses are supplied separately.

Frequently Asked Questions

What is this tool used for?

It prepares a round hole in a pleated screen PVC strip before 4.5 mm / 0.177 in eyelet installation.

Does it install the eyelet and washer?

No. A separate eyelet setting die is required after the punching operation.

How does it differ from a general-purpose punch?

It is prepared specifically for narrow PVC strips used in pleated screen production rather than general fabric, leather or cardboard work.

Can it be used on every PVC strip?

No. Strip width, thickness, hardness and machine connection must be checked before production.

What material is used?

The die is manufactured from reinforced, heat-treated hardened steel.

Content last updated: July 25, 2026 — E-Buttons

Product Information
Application Area Textile / Bags / Leather / Labels / Craftv
Compatible Equipment Hand Striking Tool / Manual Hand Press / Impact Press / Electric Machine / Pneumatic Machine
Drilling Diameter 4.5 mm / 0.18 in
Matching Eyelet Group 4.5 mm / 0.18 in Inner Diameter Eyeletsv
Notes This is not an eyelet setting die; it is an eyelet drilling die
Usage Surface Fabric / Leather / Synthetic Leather / Cardboard / Labels / Accessories
Product Type Eyelet Drilling Die
MATERIAL
Material iron
Purpose
Purpose Hole Preparation Before Eyelet Installation
