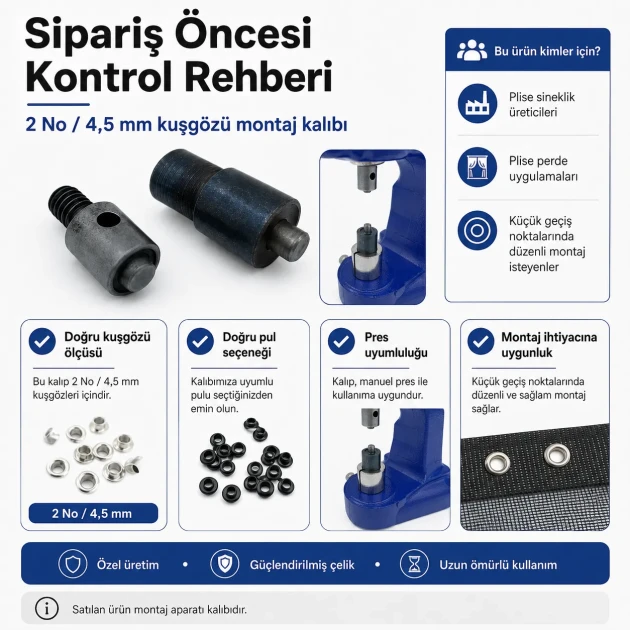

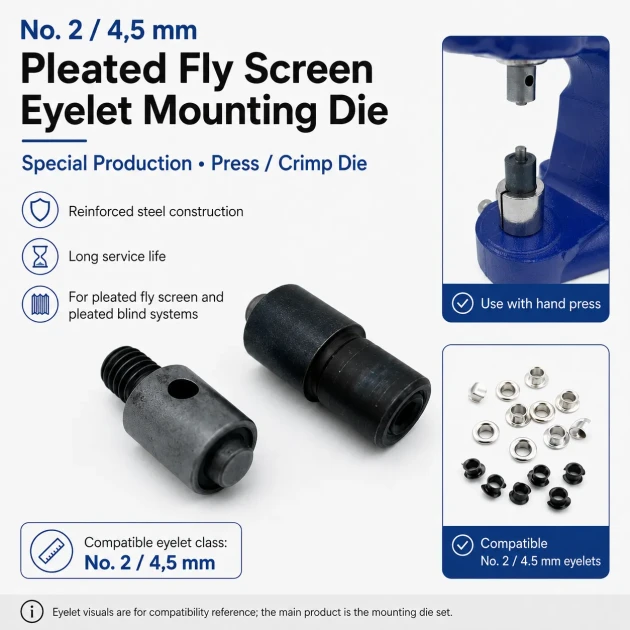

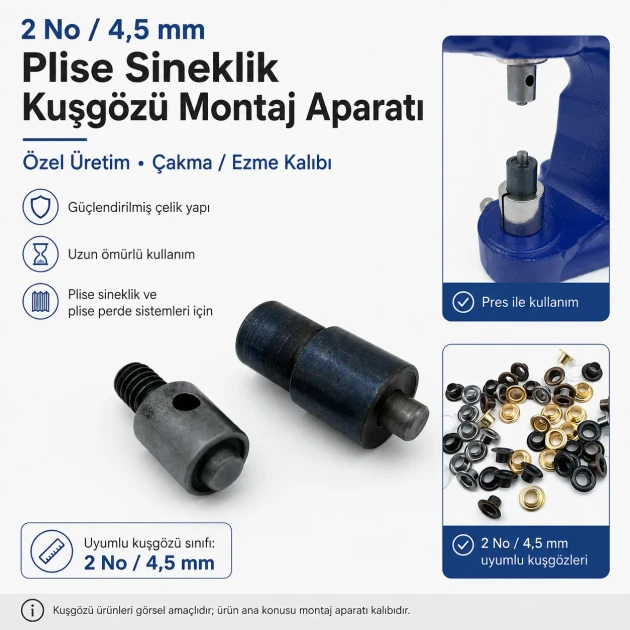

Custom 4.5 mm / 0.177 in Eyelet Setting Die for Pleated Screen Production KLP0002Sin

Custom Pleated Screen Eyelet Setting Die for 4.5 mm / 0.177 in Eyelets – Heat-Treated Steel

Compatibility with Standard Eyelets: 4.5 mm / 0.18 in to 5 mm / 0.20 in

This custom setting die installs standard 4.5 mm / 0.177 in pleated screen eyelets and selected washers onto prepared PVC strips.

Its eyelet-specific working profile and heat-treated hardened steel construction help provide controlled and repeatable setting during narrow-system screen production.

0 reviews - Write a review
12.34 USD
14.74 USD
Ex Tax: 10.28 USD
  • Stock Quantity: 999
  • Model: KLP0002Sin

Available Options

Add to Cart
Add to Wish List Compare this Product

Product Reviews

No reviews yet. Be the first to write a review!

Q&A

Total Questions 0 Answered 0 Unanswered 0
Sheet Steel Eyelet 4.5 mm / 0.177 in Inner Diameter with Plastic or Metal Washer Options 250 Pieces K0003
Sheet Steel Eyelet 4.5 mm / 0.177 in Inner Diameter with Plastic or Metal Washer Options 250 Pieces K0003
This compact sheet steel eyelet finishes lace, cord, ventilation and decorative openings in footwear, bags, garments, leather goods, tags and craft pr..
1.58 USD
Ex Tax:1.43 USD
Add to Cart
Add to Wish List Compare this Product
Long-Barrel Sheet Steel Eyelet 4.5 mm / 0.177 in Inner Diameter with Washer Options 250 Pieces K0003U
Long-Barrel Sheet Steel Eyelet 4.5 mm / 0.177 in Inner Diameter with Washer Options 250 Pieces K0003U
This long-barrel sheet steel eyelet is intended for small openings in thick fabrics, layered textiles, leather, cardboard, belts, bags, footwear, tags..
1.54 USD
Ex Tax:1.40 USD
Add to Cart
Add to Wish List Compare this Product
Eyelet 13/64" Stainless 5 mm (500 Pcs/Pack) ER0002P
Eyelet 13/64" Stainless 5 mm (500 Pcs/Pack) ER0002P
Elevate Your Craft with Eyelet 13/64" Stainless 5 mm (500 Pcs/Pack) ER0002P Discover the superior Eyelet 13/64" Stainless 5 mm (500 Pcs/Pack) ER000..
2.33 USD
Ex Tax:2.12 USD
Add to Cart
Add to Wish List Compare this Product
Long Eyelet 11/64" 4.2 mm Brass (500 Pcs/Pack) ERB0002PRU
Long Eyelet 11/64" 4.2 mm Brass (500 Pcs/Pack) ERB0002PRU
Discover the Versatility of Long Eyelet 11/64" 4.2 mm Brass (500 Pcs/Pack) ERB0002PRU This premium Long Eyelet 11/64" 4.2 mm Brass set, containing ..
11.80 USD
Ex Tax:10.73 USD
Add to Cart
Add to Wish List Compare this Product
Curved Eyelet 3/16" Brass 4,7 mm (500 Pcs/Pack) ERB0002PR
Curved Eyelet 3/16" Brass 4,7 mm (500 Pcs/Pack) ERB0002PR
Elevate Your Craft with the Curved Eyelet 3/16" Brass 4.7 mm (500 Pcs/Pack) ERB0002PR Enhance your textile, leather, bag, and footwear creations wi..
7.81 USD
Ex Tax:7.10 USD
Add to Cart
Add to Wish List Compare this Product
5 mm / 0.20 in Inner Diameter Stainless Metal Eyelet, 1000 pcs/Pack ER0002PPK
On sale
5 mm / 0.20 in Inner Diameter Stainless Metal Eyelet, 1000 pcs/Pack ER0002PPK
5 mm / 0.20 in inner diameter stainless metal eyelet is used on tags, sample cards, small bags, wallets, shoes, textiles, leather goods and craft prod..
4.39 USD 5.85 USD
Ex Tax:3.99 USD
Add to Cart
Add to Wish List Compare this Product
Stainless Eyelet 13/64" Inner Diameter 5 mm Old Silver 1000 Pcs/Pack ER0002PPKKO
On sale
Stainless Eyelet 13/64" Inner Diameter 5 mm Old Silver 1000 Pcs/Pack ER0002PPKKO
⭐ Export-Grade Durability: No 2 Antique Silver Rustproof Eyelets Designed specifically for global apparel and accessory manufacturers, our No 2 (5m..
6.63 USD 8.86 USD
Ex Tax:6.03 USD
Add to Cart
Add to Wish List Compare this Product
Stainless Eyelet 13/64" Inner Diameter 5 mm Antique Brass 1000 Pcs/Pack ER0002PPK
On sale
Stainless Eyelet 13/64" Inner Diameter 5 mm Antique Brass 1000 Pcs/Pack ER0002PPK
⭐ Export-Grade Durability: No 2 Antique Yellow Rustproof Eyelets Designed specifically for global apparel and accessory manufacturers, our No 2 (5m..
6.63 USD 8.86 USD
Ex Tax:6.03 USD
Add to Cart
Add to Wish List Compare this Product
Stainless Eyelet 13/64" Inner Diameter 5 mm Black Oxide 1000 Pcs/Pack ER0002PPKSO
On sale
Stainless Eyelet 13/64" Inner Diameter 5 mm Black Oxide 1000 Pcs/Pack ER0002PPKSO
⭐ Export-Grade Durability: No 2 Black Oxide Rustproof Eyelets Designed specifically for global apparel and accessory manufacturers, our No 2 (5mm i..
6.63 USD 8.86 USD
Ex Tax:6.03 USD
Add to Cart
Add to Wish List Compare this Product
Pleated Insect Screen Eyelet 4.5 mm / 0.177 in with Metal or Plastic Washer Options 250 Pieces/Pack KSAC0002Sin
New
Pleated Insect Screen Eyelet 4.5 mm / 0.177 in with Metal or Plastic Washer Options 250 Pieces/Pack KSAC0002Sin
This 4.5 mm / 0.177 in pleated insect screen eyelet is designed for cord, guide and connection openings in narrow screen systems and narrow screen str..
1.58 USD
Ex Tax:1.43 USD
Add to Cart
Add to Wish List Compare this Product
Long-Barrel Pleated Insect Screen Eyelet 4.5 mm / 0.177 in with Metal or Plastic Washer Options Pack of 250 KSAC0002SiU
New
Long-Barrel Pleated Insect Screen Eyelet 4.5 mm / 0.177 in with Metal or Plastic Washer Options Pack of 250 KSAC0002SiU
This long-barrel eyelet is designed for cord and connection openings in narrow, folded or layered pleated insect screen strips. The 7.3 mm / 0.287 ..
1.54 USD
Ex Tax:1.40 USD
Add to Cart
Add to Wish List Compare this Product
Converter Eyebolt 1/4 to M6 - Converter Suitable for Turkish Machines KLP00M8M6
On sale
Converter Eyebolt 1/4 to M6 - Converter Suitable for Turkish Machines KLP00M8M6
Converter Adapter 1/4 to M6 - Foreign Machine Compatible Converter Developed to enable you to use installation tools designed for Turkish-manufactu..
2.52 USD 3.72 USD
Ex Tax:2.10 USD
Add to Cart
Add to Wish List Compare this Product
Hand-Hit Setting Tool for Snap Buttons Eyelets Rivets and Jeans Buttons KLP00EL01
Hand-Hit Setting Tool for Snap Buttons Eyelets Rivets and Jeans Buttons KLP00EL01
A practical manual tool for small snap, eyelet, rivet and jeans button applications without a press. Use it with compatible dies and a hammer for smal..
4.40 USD
Ex Tax:3.67 USD
Add to Cart
Add to Wish List Compare this Product
Long-Handle Hand-Hit Setting Tool for Snap Buttons Eyelets Rivets and Jeans Buttons KLP00EL01
Long-Handle Hand-Hit Setting Tool for Snap Buttons Eyelets Rivets and Jeans Buttons KLP00EL01
A long-handle manual tool for small snap, eyelet, rivet and jeans button applications without a press. Use it with compatible dies and a hammer for sm..
4.80 USD
Ex Tax:4.00 USD
Add to Cart
Add to Wish List Compare this Product
Manual Eyelet Setting Press for Tarpaulin, Awning and Fabric Covering M00101
On sale New
Manual Eyelet Setting Press for Tarpaulin, Awning and Fabric Covering M00101
Manual eyelet setting press is a heavy-duty press used for tarpaulin, awning, heavy fabric, oval eyelet setting, fabric covering, punching, cutting an..
308.94 USD 369.43 USD
Ex Tax:280.85 USD
Add to Cart
Add to Wish List Compare this Product
Manual Hand Press Machine for Eyelets, Snaps, Rivets and Fabric Covered Buttons M0099
On sale
Manual Hand Press Machine for Eyelets, Snaps, Rivets and Fabric Covered Buttons M0099
Manual hand press machine is used with the correct die for setting eyelets, snaps, rivets, jeans buttons, fabric covered buttons, studs, drops and pun..
23.10 USD 33.75 USD
Ex Tax:19.25 USD
Add to Cart
Add to Wish List Compare this Product
Manual Impact Press Light Type – Eyelet, Snap and Jeans Button Application Press M00100
On sale
Manual Impact Press Light Type – Eyelet, Snap and Jeans Button Application Press M00100
This light type manual impact press is designed for compatible eyelet, snap, jeans button, rivet, hook, fabric button covering, punching, stamping and..
326.93 USD 380.43 USD
Ex Tax:297.21 USD
Add to Cart
Add to Wish List Compare this Product

Custom Setting Die for Narrow Pleated Screen Systems

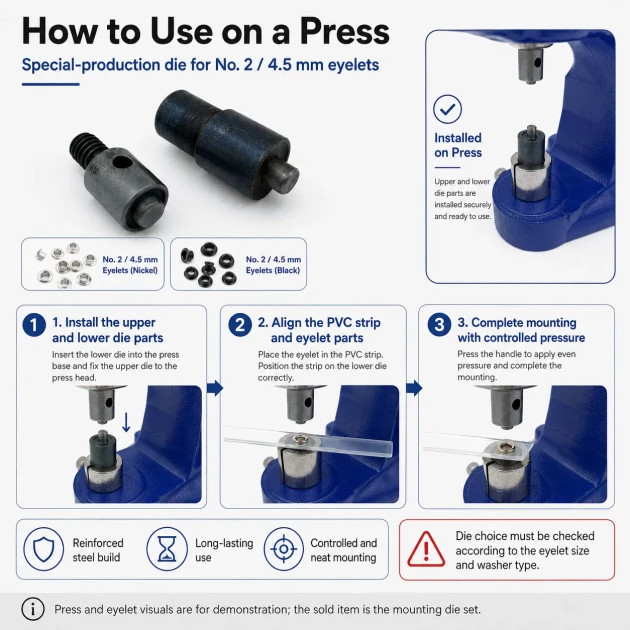

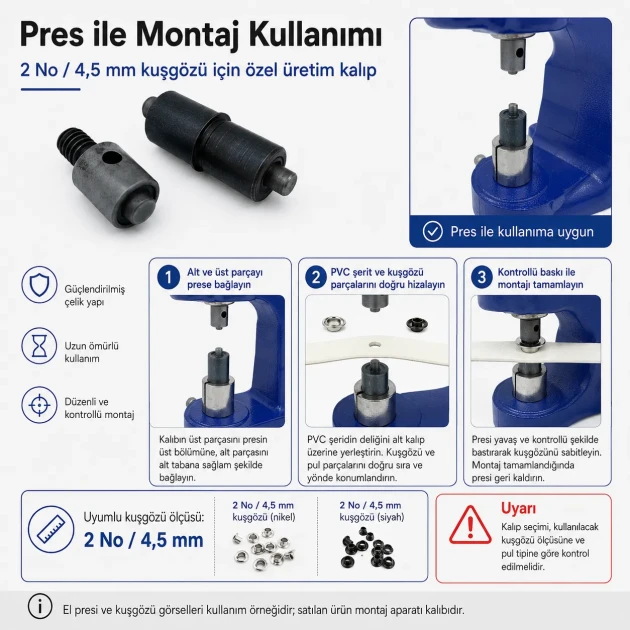

This custom die is used to crimp and close a 4.5 mm / 0.177 in pleated screen eyelet and selected washer onto a prepared PVC strip.

The die supports the visible eyelet face and forms the standard barrel over the washer. It does not punch or cut the PVC strip.

Why Use an Eyelet-Specific Setting Die?

Eyelets with similar inner diameters may have different outer diameters, face profiles, barrel heights and washer constructions.

This product-specific die is prepared around the standard pleated screen eyelet with an 8.3 mm / 0.327 in outer diameter and 5.3 mm / 0.209 in height. The profile helps centre the components and produce a controlled closure during repeated manufacturing.

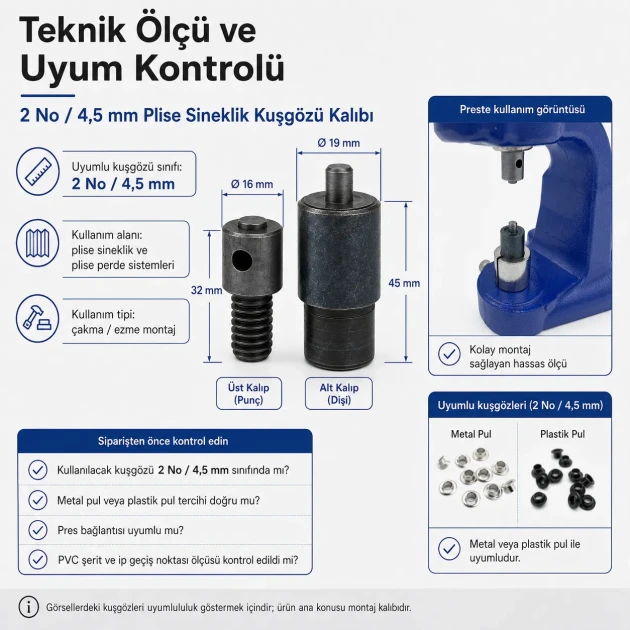

Technical Information

Target Inner Diameter 4.5 mm / 0.177 in
Target Outer Diameter 8.3 mm / 0.327 in
Target Eyelet Height 5.3 mm / 0.209 in
Primary Industry Pleated insect screen and pleated blind production
Function Setting, crimping, clinching and closing
Material Heat-treated hardened steel
Punching Function No

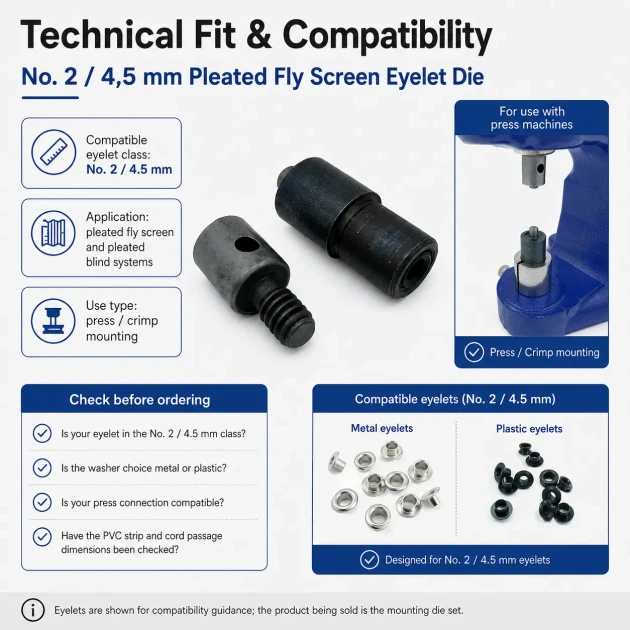

Long-Barrel Eyelet Compatibility

The long-barrel eyelet has the same 4.5 mm / 0.177 in inner diameter but a 7.3 mm / 0.287 in barrel height.

It must not be treated as automatically compatible with this standard-eyelet setting profile. A separate sample test or custom die may be required.

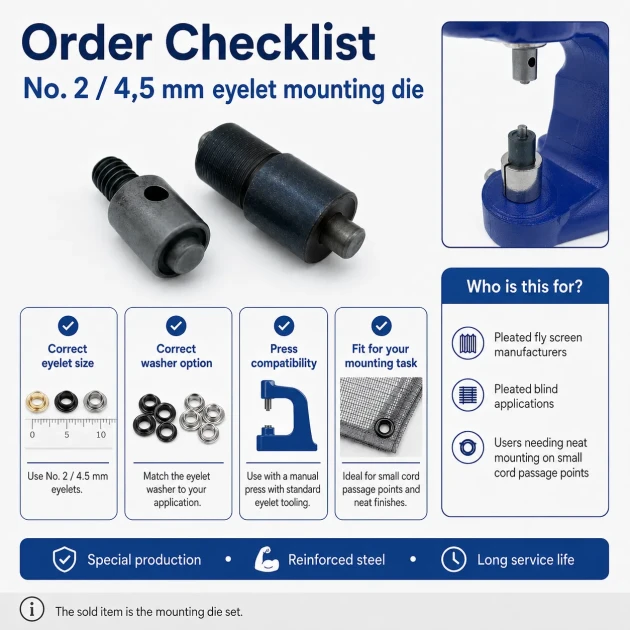

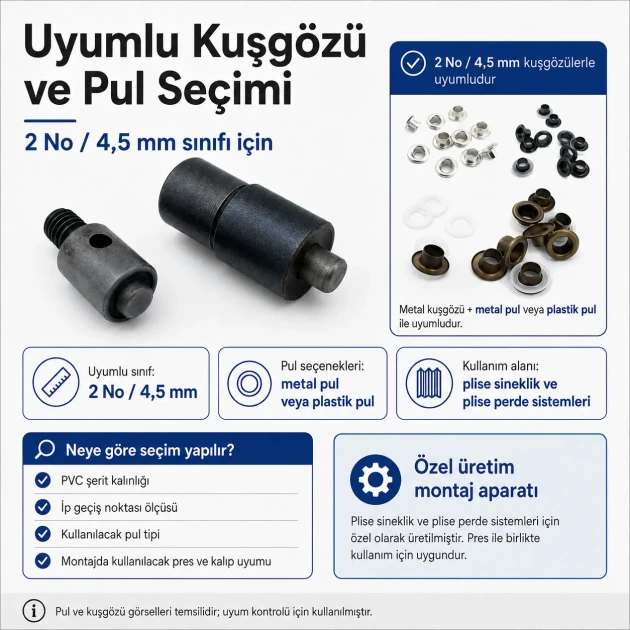

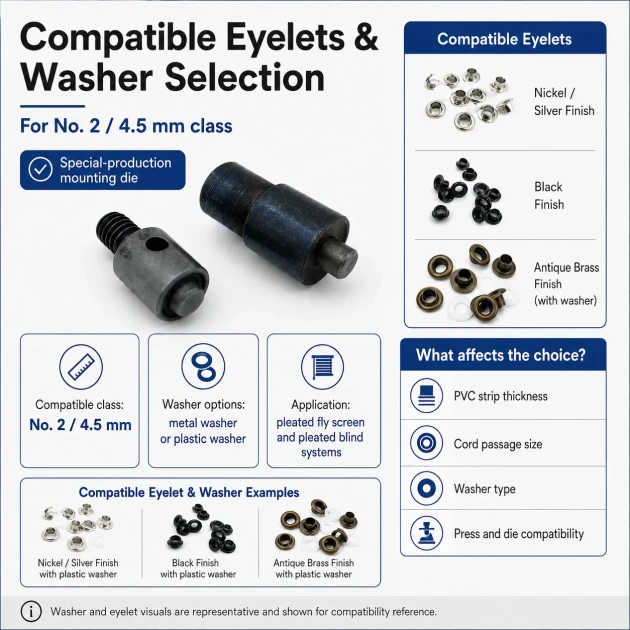

Washer Compatibility

The die may be prepared for the selected metal or plastic washer. Different washer thicknesses, openings and rear profiles require separate compatibility control.

Related Products and Categories

Product Scope

This product is the custom setting die. Eyelets, washers, PVC strips, punching tools and presses are selected separately.

Frequently Asked Questions

What does this die do?

It crimps and closes a pleated screen eyelet and selected washer onto a prepared PVC strip.

Which eyelet is it designed for?

It is designed for the standard eyelet with a 4.5 mm / 0.177 in inner diameter, 8.3 mm / 0.327 in outer diameter and 5.3 mm / 0.209 in height.

Does it punch the hole?

No. A separate punching die or hole-preparation tool is required.

Can it install the long-barrel eyelet?

Compatibility must be tested separately because the long-barrel model requires a different closing distance.

What material is used?

The die is manufactured from reinforced, heat-treated hardened steel.

Content last updated: July 25, 2026 — E-Buttons

Product Information
Product Type Assembly Mold
SIZE / DIMENSION
Size mm / Ligne 13/64" / 5 mm Inner Diam.
MATERIAL
Material Made of iron
Usage Area
Most Frequently Used Area Special molds specific to each model and number of cuff eye are produced. It can be used easily in mass production, hobby and small scale works. It can be used in automatic and manual application machines.

Custom Production Solutions for Your Brand

E-Dugme manufactures custom accessories tailored to the needs of companies and brands. Dimensions, shapes, colors, and application details can be specially developed based on physical samples, technical drawings, or customer requests.

Products prepared with your brand’s logo, text, colors, and surface applications offer solutions that meet both your aesthetic and functional requirements.

Our Product Groups

Zippers

We produce custom zipper accessories for your brand, including logo pullers, special forms, and various plating options.

Snap Buttons

We manufacture branded and custom snap buttons for your brand in both attached and sewable options.

Branded Snap Button
Branded Circle Snap Button
Branded Snap Fasteners
Buttons

In both shank and sew-through button groups, production can be customized with your brand’s logo, pattern, and surface applications.

Jeans Buttons

We offer branded and custom jeans button production in zamak and brass materials.

Branded Jeans Button
Branded Jeans Buttons With Logo
Branded Jeans Button Only Logo
Rivets

We produce branded rivets with logos and various plating options specially developed for companies.

Eyelets and Grommets

Custom production of eyelets and grommets is available for your brand with different sizes, colors, and surface options.

Branded Eyelets
Branded and Dyed Eyelets
Buckles

We provide buckle production in custom dimensions and designs for bras, belts, and various other applications.

Webbing, Braided Belts, and Lace

We offer custom production solutions in textile accessory groups that match your brand’s design language.

Labels, Tapes, and Appliqués

We manufacture branded labels, tapes, and appliqués with your logo or text for garments, jewelry, and accessory groups.

Production Process

Before production, electronic models and sample studies can be provided upon request to support the approval process. Production and delivery schedules are planned according to the product group and application details.

In general, the production and delivery time for accessories ranges between 20–30 days from the date of payment.

Sample Drawing

Sample drawings showing product materials, dimensions, and application details can be prepared.

Project

Please feel free to contact us for logo-branded, size-specific, and design-oriented accessory solutions tailored to your brand.

Dear Customer,

In order to ensure that your ordering process proceeds smoothly and transparently, we would like to share a few important details with you.

The prices stated for our products apply to the standard color options offered. Any requested colors outside the standard range, enamel applications, stone details, or similar custom works are subject to additional charges. Any price difference is determined according to the material and workmanship characteristics of the selected application.

All quoted prices are valid based on the sales unit specified on the product page. Depending on the product, these units may vary as pack, gross, meter, or piece.

Retail Sales

In retail sales, packaged products are shipped in the color specified on the package. For products with a minimum order quantity stated on the product page, the customer’s selected color is only supplied for orders placed at or above the minimum quantity indicated on the page. For color requests placed below the minimum order quantity specified on the product page, shipments are made from the colors available in stock.

In cases where the color and quantity details of your order need to be clarified, our team will contact you promptly by phone or through other communication channels.

Custom Colors and High-Volume Orders

For orders of 5,000 pieces and above, production can be planned in your requested custom color, and the products are generally prepared for shipment within 3–4 business days. This period may vary depending on the product type and the applications required.

For purchases of 20,000 pieces and above, we would be pleased to offer you special pricing.

For colors outside the standard range, as well as special plating, enamel, stone, and rhinestone products, please review the Special Plating Colors section or contact us directly.

For custom logo production and designs tailored specifically to your brand, we provide personalized solutions for bulk orders. To receive detailed information about custom production options for your brand, simply contact us.

Important Note: Due to lighting, screen settings, and shooting conditions, product images may show slight tone differences compared to the actual product.

✦International Shipping Information

We are pleased to offer worldwide shipping for our collections, delivering our products to customers across the globe with care, precision, and reliability.

■Payment

We proudly serve both retail and wholesale clients. Prices are available in Turkish Lira (TRY), US Dollars (USD), and Euros (EUR) for your convenience.

At this time, international orders are accepted via credit card payment only.

Please note that if payment is not completed by credit card, the processing of your order may be delayed until payment is received and the corresponding invoice has been issued.

■Shipping Fees

International shipping charges are calculated based on the selected shipping method, destination, and total shipment weight. The exact shipping cost will be displayed at checkout once your delivery information has been entered and before your order is finalized.

■Customs Duties & Taxes

Please be advised that customs duties, import taxes, and any additional charges that may arise in the destination country are solely the responsibility of the customer.

Our system is unable to calculate customs duties or local import charges applicable in your country.

Orders cannot be returned, canceled, or refunded due to customs duties, import taxes, or any related customs clearance charges.

■Shipping Methods

Available international shipping options include AFS Cargo, DHL, and FedEx. The shipping methods available for your order will be displayed at checkout, depending on your delivery address and order details.

If you are a business customer and require alternative shipping arrangements, please contact our Customer Service team for assistance.

International shipping services may be subject to country-specific weight and size restrictions. Our system may not always detect these limitations automatically, so we kindly recommend checking your email regularly for any shipping-related updates.

■Important Information

Please ensure that you select the appropriate shipping method for your region. The correct shipping cost for your selected option will be shown during checkout before your order is completed.

Once your order has been dispatched, E-Dugme.com cannot be held responsible for delays or losses related to international shipping.

Shipping carriers will transport your parcel to the relevant transfer and customs points; however, we have no control over the final delivery time after the package leaves Turkey.

Once your order has been shipped, you will be able to track your parcel using the tracking number provided to you. Unless the shipment is officially declared lost or damaged according to the regulations of the destination country, we are unable to resend the order. In such cases, an insurance claim will be initiated, and replacement products will only be sent after the claim has been approved.

Still unsure?

Let us help you quickly with product, size, and quantity questions.

REQUEST WHOLESALE PRICING
Get a quote for bulk orders
WhatsApp
Message us for quick support
CALL US
Get help with orders and product details

Articles That Can Help You When Choosing a Eyelets and Grommetrs

05 Aug Special Production Accessories
Murat 1 51470
Special Production Accessories
E-Dugme specializes in producing custom accessories tailored to the needs of companies and brands. We create designs based on physical samples or customer specifications in any size, shape, and color. Our Products: Zippers: Custom pulls for garme..
Read More
01 May Textile Accessories Material Guide: Brass, Stainless Steel, and Mild Steel
Murat 3 18892
Textile Accessories Material Guide: Brass, Stainless Steel, and Mild Steel
Welcome, dear readers! We have prepared a comprehensive guide to help you navigate through the common material confusions encountered in textile accessories. This article explores brass, stainless steel, and mild steel in detail, discussing their adv..
Read More
29 Sep All About Stainless Eyelets
Murat 0 16333
All About Stainless Eyelets
Stainless eyelets are metal rings that are frequently used in the textile industry and hold fabrics together. Stainless eyelets are durable and aesthetic products made of stainless steel. In this article, we will explain how stainless eyelets are cre..
Read More
04 Feb Eyelets: A Versatile Decorative Element for Fashion, Home Décor, and More
Murat 0 23550
Eyelets: A Versatile Decorative Element for Fashion, Home Décor, and More
Eyelets are small, circular rings that are used for a variety of purposes, from adding a decorative touch to clothing and fashion to reinforcing holes in scrapbooking and home décor projects. Eyelets come in a variety of materials, each with its own ..
Read More
12 Oct Differences Between Normal Eyelets and Nailed Eyelets
Murat 0 35399
Differences Between Normal Eyelets and Nailed Eyelets
What is Grommet? : It is the name given to the nailed eyelet type. Nail eyelets are hole reinforcing tools that can be made from a variety of materials including brass, aluminum, stainless steel, and nickel. At E-Dugme.com we sell the highest quali..
Read More
