Galvanized Eyelet with Metal Washer 39.5 mm / 1.56 in Inner Diameter DT00066

Heavy-Duty Galvanized Eyelet for Large Reinforced Openings

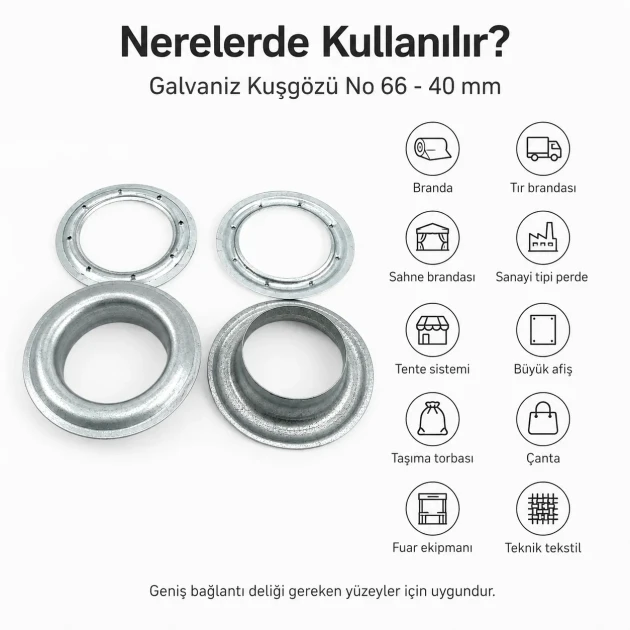

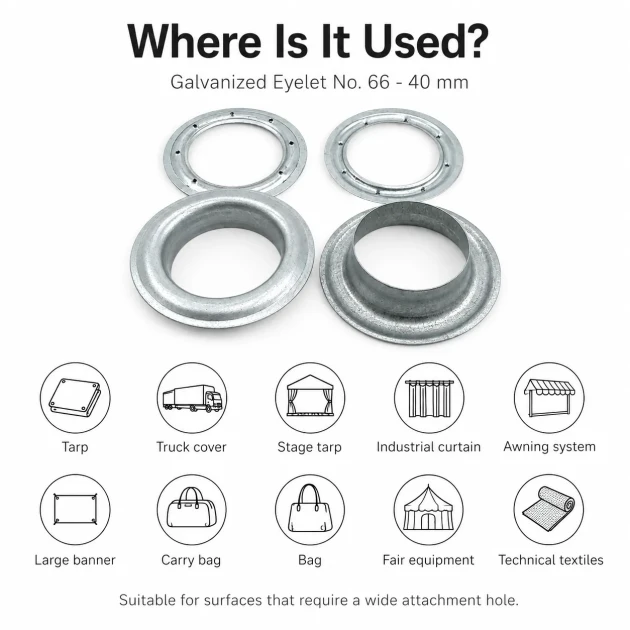

This galvanized eyelet with metal washer is designed for large reinforced openings in truck covers, tarps, stage banners, industrial curtains, awnings, shade systems, large banners, carrier bags, bags, fair equipment, vinyl prints and technical textiles. It is used where ropes, hooks, straps, tensioning cords or fixing accessories pass through the material.

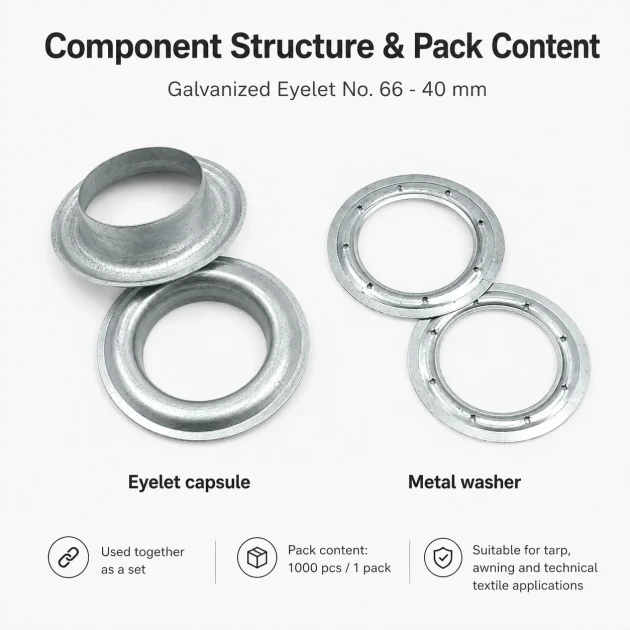

The metal washer supports the back side of the material and helps the eyelet grip a wider surface. Correct installation is especially important in heavy-duty tarp and outdoor products because an incorrect hole size, weak press force or wrong die can cause rotation, tearing or poor washer closure.

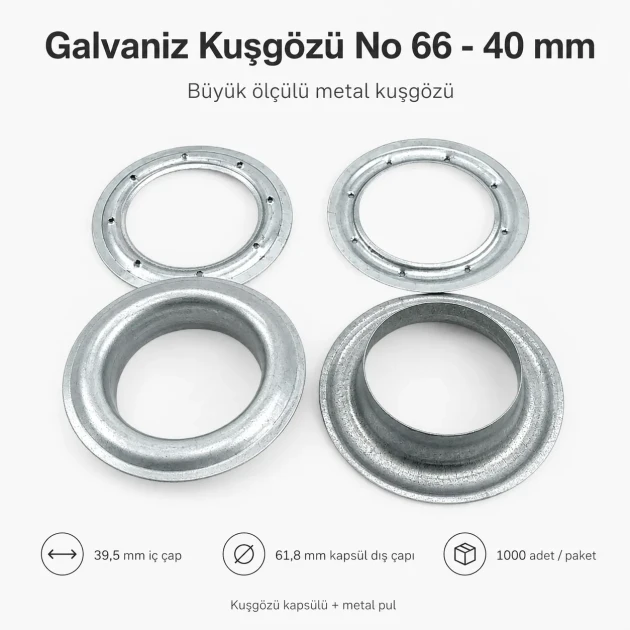

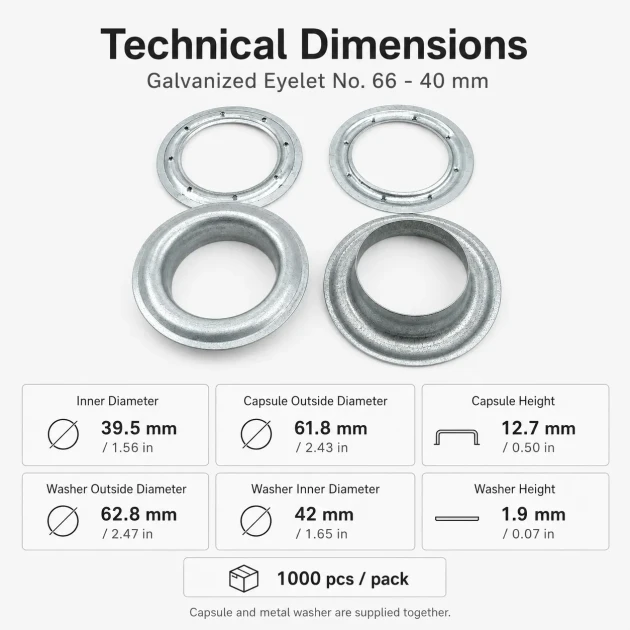

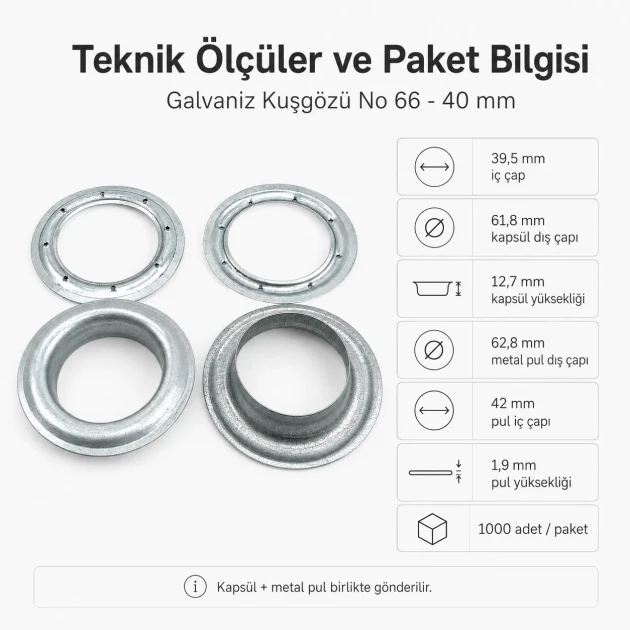

Verified Product Dimensions

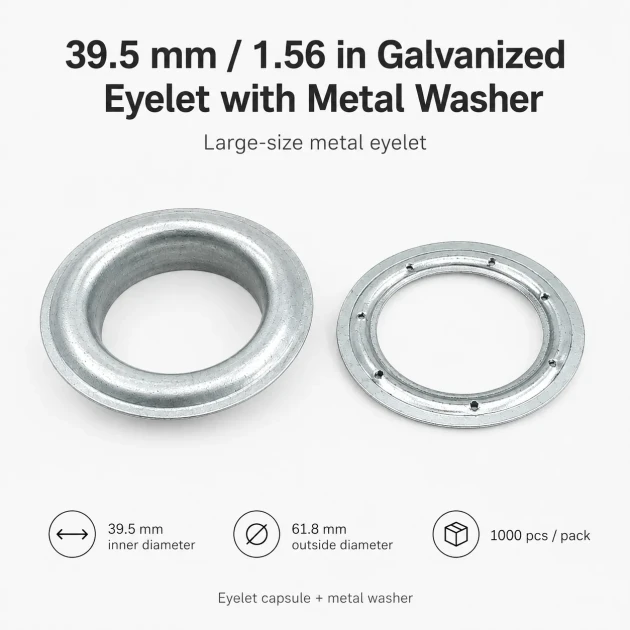

• Eyelet capsule outside diameter: 61.8 mm / 2.43 in
• Eyelet capsule inner diameter: 39.5 mm / 1.56 in
• Eyelet capsule height: 12.7 mm / 0.50 in

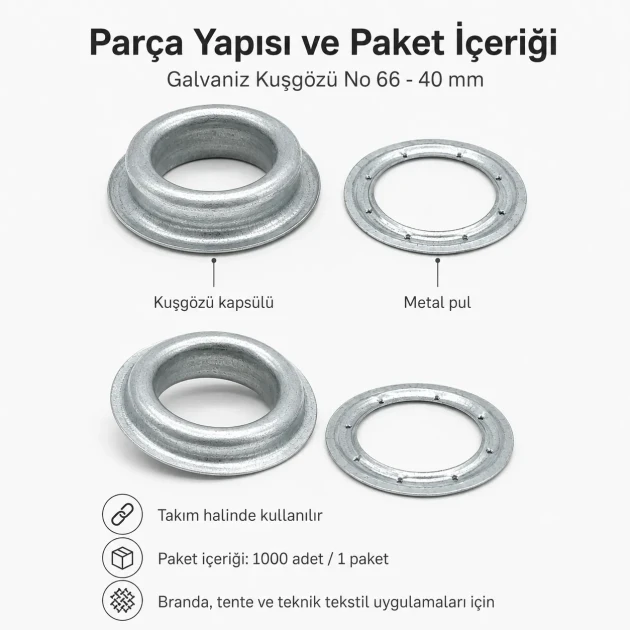

• Metal washer outside diameter: 62.8 mm / 2.47 in
• Metal washer inner diameter: 42 mm / 1.65 in
• Metal washer height: 1.9 mm / 0.07 in
• Material: Galvanized metal
• Package: 1000 pieces per pack

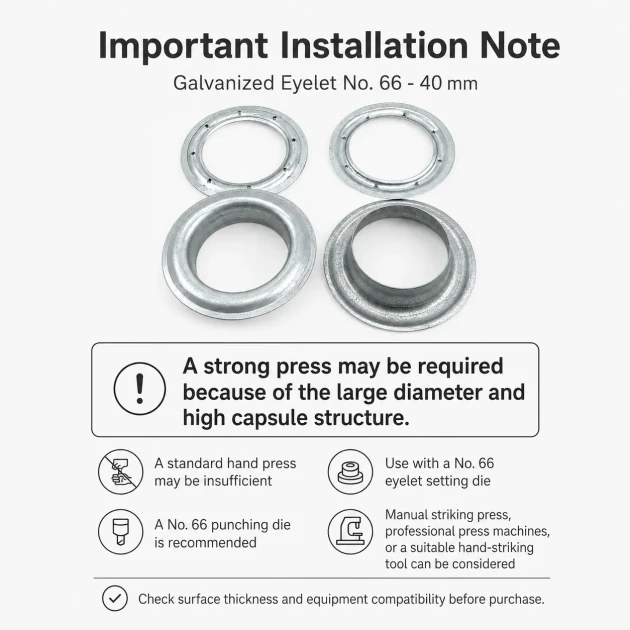

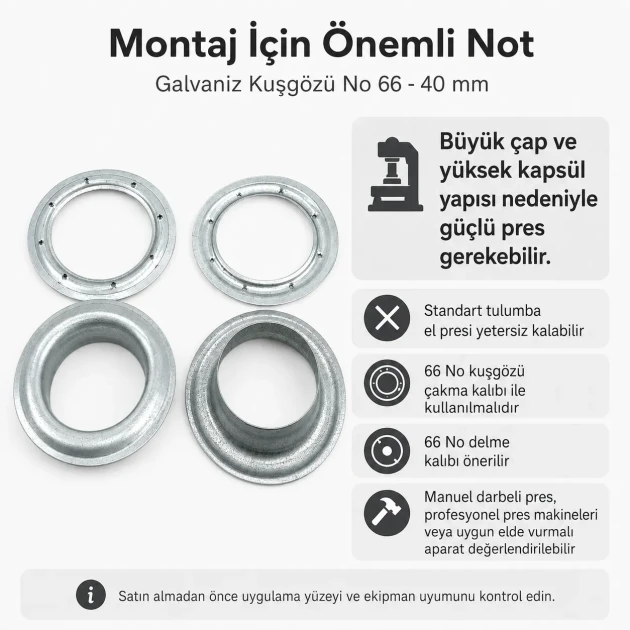

Installation Requires Enough Force

This product is much larger and harder to set than small garment eyelets. On thick tarpaulin, multi-layer canvas, stiff technical textile or leather, a small hand press may not generate enough force to close the galvanized eyelet and metal washer evenly.

For better results, use a compatible 40 mm / 1.57 in Eyelet Setting Die. If a clean material hole is needed before setting, use a 40 mm / 1.57 in Eyelet Punching Die or another suitable hole preparation tool. For applications where a small hand press is not powerful enough, use a manual impact press, lever press, motorized press or professional grommet setting machine.

A hand-striking setting tool may be selected for small batches or field-type applications when the correct size is available. For production work, however, a stronger press and correct die usually provide a more repeatable and secure setting result.

Setting Die, Punching Die and Press Selection

A punching die prepares the material hole before installation. A setting die closes the eyelet and washer after the hole is ready. The press or hand-striking tool provides the force needed for the setting die. These are separate parts of the installation process.

The hole must be matched to the eyelet capsule, washer opening and fabric behavior. A hole that is too small may prevent proper seating, while a hole that is too large may weaken the grip and allow the eyelet to rotate or pull out under load.

Common Questions Before Ordering

What is the inner diameter?

The eyelet capsule inner diameter is 39.5 mm / 1.56 in.

Is the metal washer included?

Yes. The product is sold as eyelet and metal washer sets in a 1000-piece pack.

Can it be installed with a small hand press?

Some thin materials may be possible after testing, but this large galvanized eyelet may require more force than a small hand press can provide. A manual impact press, stronger professional machine or suitable hand-striking setting tool should be considered.

Which die is required?

A 40 mm / 1.57 in eyelet setting die is required for installation. A separate punching die or hole cutter may be required for preparing the material hole.

Can it be used for truck covers, tarps and awnings?

Yes. It is suitable for truck covers, tarps, stage banners, industrial curtains, awnings, carrier bags, large banners and technical textiles after testing material thickness and setting force.

Is galvanized metal the same as stainless steel?

No. Galvanized metal has a protective coating, while stainless steel has a different material structure. For marine, salt or chemical exposure, stainless alternatives should be evaluated.

Can a hand-striking tool be used?

It can be considered for small quantities or field applications when the correct tool size is available. For consistent production, a stronger press is usually safer.
