10mm - 0,39" VT2 Snap Fastener Press Die - Mini 54 System Installation Tool KLP00VT2-10

Name: 10mm VT2 Snap Press Die - Mini 54 System Installation Tool
Brand: E-Dugme
SKU: KLP00VT2-10
Price: 3.5 USD
Availability: InStock

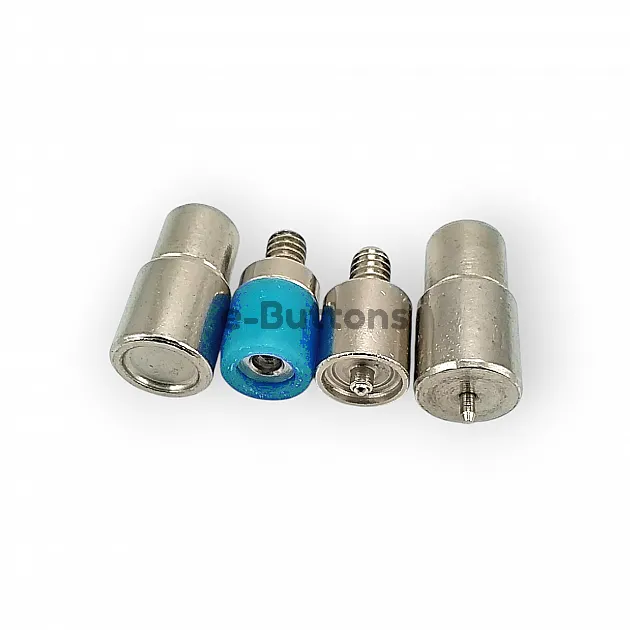

Snap Fasteners VT2 Mounting Dies 10 mm - 0,39 " Fastening Mold KLP00VT2-10

🔩 Approximate Inch Equivalents for M6 and M8 Metric Thread Sizes

🌍 Recommendation for International Use

In countries like the USA and the UK that use inch-based systems, or when working with imported equipment, M6 metric threads are more commonly used. For compatibility with international machinery and standards, it is recommended to choose M6 or its closest inch equivalent (1/4"-20 UNC).

📌 Recommendation for Turkey

In Turkey, M8 metric threads are more commonly used in manufacturing and assembly. Choosing M8 provides easier sourcing and compatibility with locally available machines and tools.

he approximate inch (UNC) equivalents of M6 and M8 metric thread sizes help you compare diameters when working on international projects or with imported equipment. However, since the thread pitches and standards differ, metric and inch threads are not interchangeable — they only provide approximate diameter equivalence.

🔹 M6 (~6 mm diameter)
M6 outer diameter: 6 mm → 6 / 25.4 ≈ 0.236 inch
Closest UNC size: 1/4"-20 UNC
1/4" outer diameter ≈ 0.250 inch → slightly larger than M6.
20 TPI (threads per inch) → Thread pitch ≈ 1.27 mm.

🔹 M8 (~8 mm diameter)
M8 outer diameter: 8 mm → 8 / 25.4 ≈ 0.315 inch
Closest UNC size: 5/16"-18 UNC
5/16" outer diameter ≈ 0.3125 inch → very close to M8.
18 TPI → Thread pitch ≈ 1.41 mm.

🔎 Thread Pitch Comparison (approximate)
M6 standard pitch → 1.0 mm → 25.4 / 1.0 = 25.4 TPI equivalent.
M8 standard pitch → 1.25 mm → 25.4 / 1.25 = 20.32 TPI equivalent.

As you can see, while 1/4"-20 and 5/16"-18 UNC sizes are similar in diameter to M6 and M8 respectively, the thread pitches (TPI) and profiles differ. Therefore, they are not mechanically compatible — they only offer an approximate comparison.

Tags: 10mm snap installation die , VT2 system die , mini 54 press die , wallet snap tool , leather snap installation die , single cap snap die , size 16 snap die , leatherworking tool , wallet installation die , VT2 snap press die , mini 54 installation die , leather accessory die , snap fastening tool , 10mm installation die

10mm - 0,39" VT2 Snap Fastener Press Die - Mini 54 System Installation Tool KLP00VT2-10

Based on 0 reviews. - Write a review

⚙️ 10mm -0,39” VT2 System Snap Installation Die - For Wallets & Leather Goods!

Specially designed press die for Mini 54 / VT2 system single-cap snap fasteners. Professional results in leatherwork, wallet production, and accessory installation. Ideal for mass production and hobby projects!

✓ Upper and lower die set
✓ Iron alloy durability
✓ 10mm – 0,39” / Size 16 dimensions
✓ Full VT2 system compatibility

3.50 USD/pcs

5.36 USD/pcs

: In Stock
Model: KLP00VT2-10

Available Options

Tools

Hand Tools (+2.62 USD)

Hand Press Machines (+24.64 USD)

Qty

Add to Cart

Add to Wish List Compare this Product

Request Wholesale Price

For Bulk Purchase
Request a Quote

Call Us

No Questions in Your Mind
Call Now

Ask Question

For Products and Other Services
Write Us

MATERIAL
Material	Made of iron
Product Shape
Sanp Fasteners Type	VT2 Systems - Mini 54
Product Type	Single Cap Snaps Fasteners
SIZE / DIMENSION
Size mm / Ligne	10 mm / 16L / 0,39"
Usage Area
Most Frequently Used Area	This product is used to mount Mini 54, or VT2, snaps with a 10mm cap. It's also known as a wallet snap mounting device in leather hobbyists and many other industries.

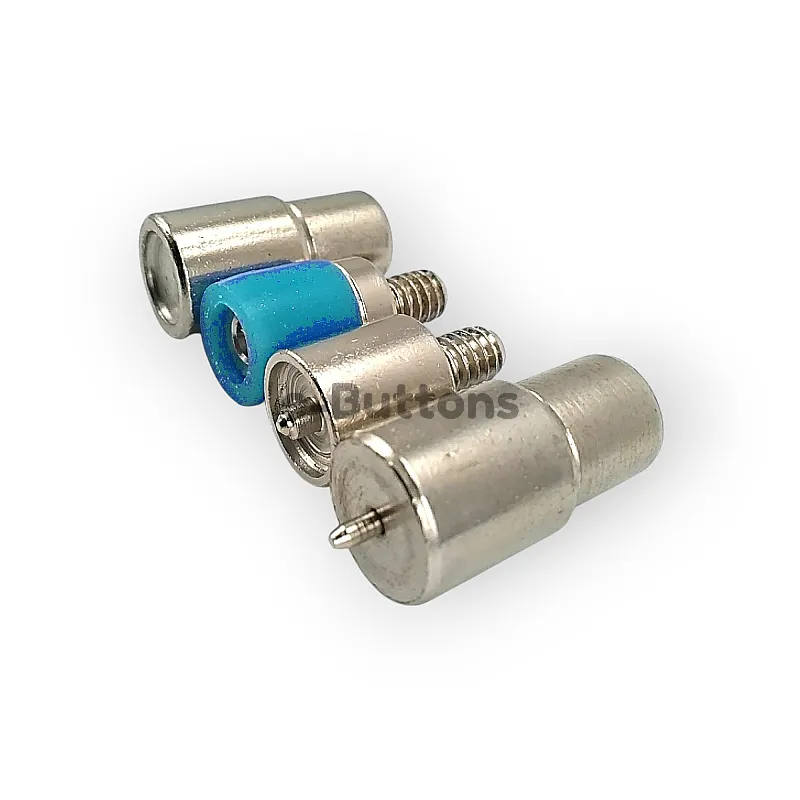

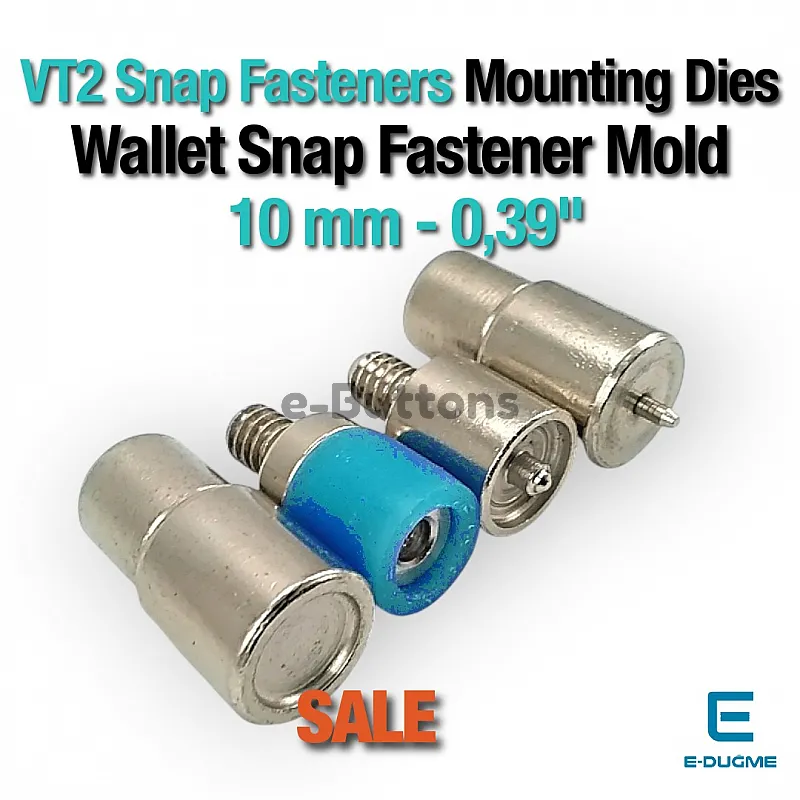

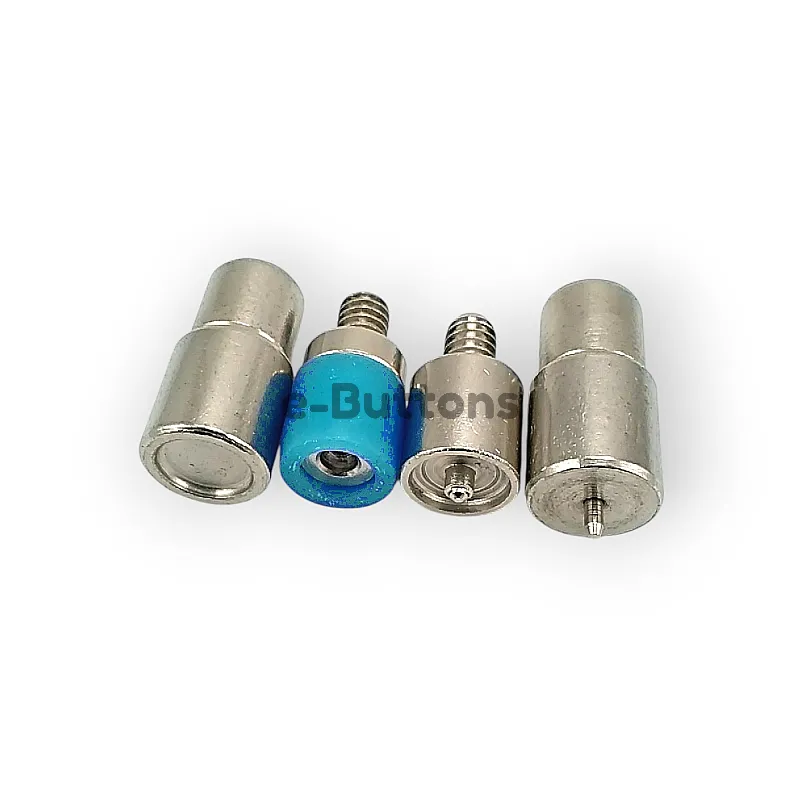

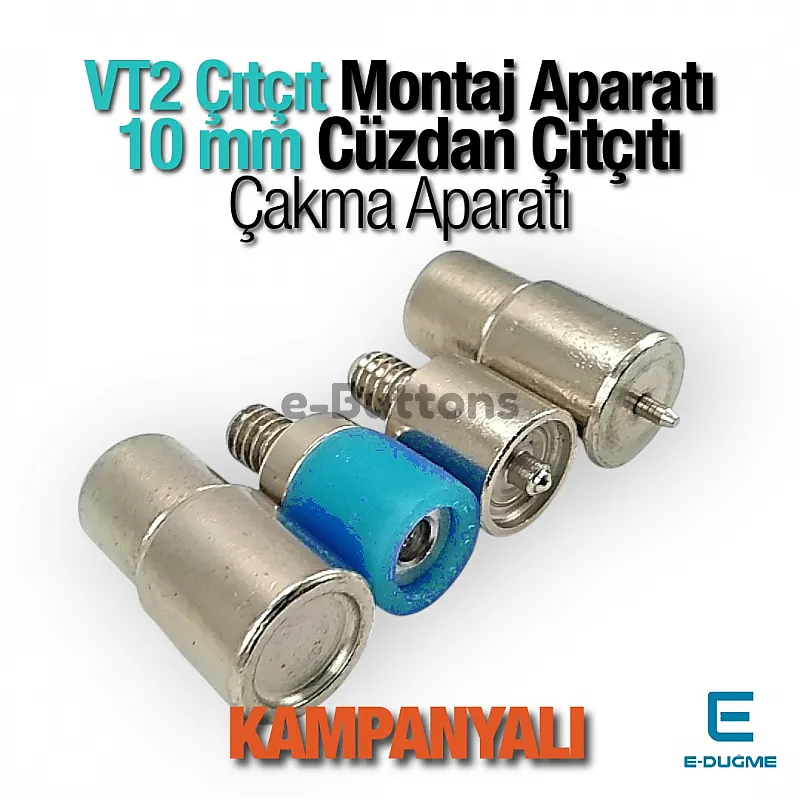

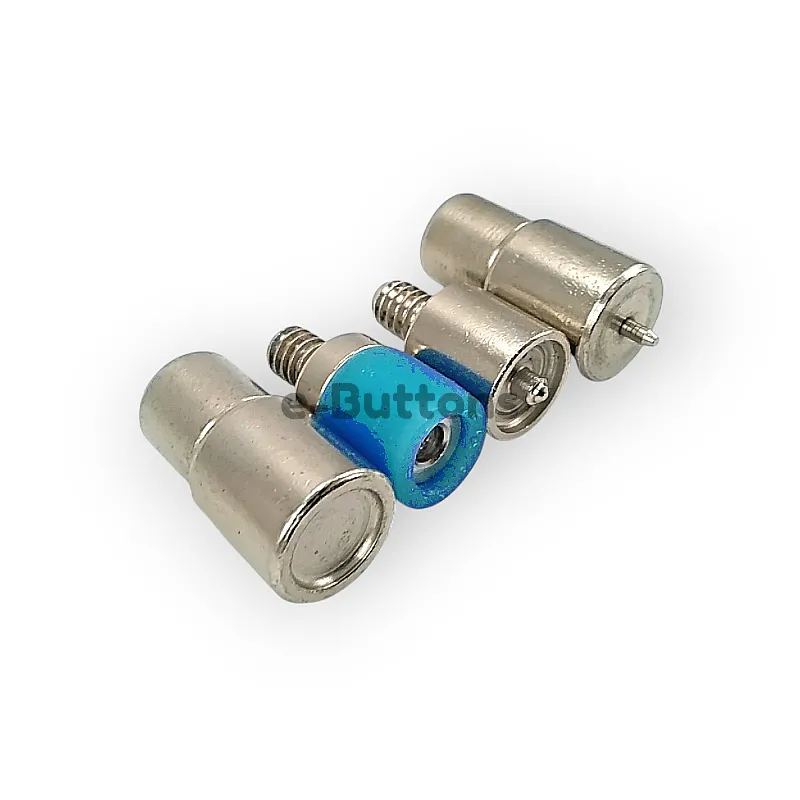

10mm VT2 Snap Fastener Press Die - Mini 54 System Installation Tool

Specially developed for professionals in leatherworking, wallet manufacturing, and accessory design, this press die ensures flawless installation of 10mm capped VT2 system (Mini 54) snap fasteners. This die set, which you can safely use in both mass production lines and home workshops, guarantees professional results.

Package Contents:

1 Upper Die: Precision die designed to secure the snap cap to fabric or leather
1 Lower Die: Special design die to position the snap socket and complete installation

Technical Specifications:

Snap Type: VT2 System (Also known as Mini 54)
Snap Style: Single-cap snap models
Size Standard: 10mm diameter / Size 16
Manufacturing Material: High-strength iron alloy
Die Type: Upper-lower dual die system

Application Areas:

Leather wallet and money clip production
Card holder and business card case assembly
Leather bag and belt accessories
Handcrafted leather products
Hobby leather crafting projects
Small leather goods manufacturing
Keychain and leather accessory design

What is VT2 System (Mini 54)? The VT2 system is a single-cap snap installation standard preferred in leather and heavy fabric applications. Also called Mini 54, this system is widely used especially in wallets and small leather accessories. The 10mm cap diameter provides a sleek and aesthetic appearance while offering a secure connection.

Product Advantages: ✓ Specific System Compatibility: Precision die design optimized exclusively for VT2 / Mini 54 snaps ✓ High Durability: Iron alloy construction, non-deforming structure through thousands of installations ✓ Perfect Installation: Equal pressure distribution and excellent fastening in every use ✓ Versatile Usage: Wide usage range from mass production to hobby workshops ✓ Easy Application: Works comfortably with manual press or hammer ✓ Long-Lasting: High resistance to wear and impact

Who Is It Suitable For?

Leatherworking workshops and manufacturers
Wallet and leather accessory producers
Hobby leatherworkers
Arts and crafts enthusiasts
Small-scale leather goods entrepreneurs
Designers and prototype makers

How to Install:

Position snap parts on leather or fabric at desired location
Place lower die under snap socket, upper die over cap section
Apply controlled strike with manual press or hammer
Verify snap parts are firmly joined

Which Press to Use? This die set can be used with manual plier presses, lever press devices, or hammer method. If you're unsure about usage method, guidance will be provided if you specify in order notes.

Important Order Note: When ordering, please specify in the order notes which snap product (product code) you're requesting the die for. If you have doubts about proper die selection, you can indicate in the notes your request to be contacted. Our expert team will assist you in selecting the correct die.

Compatibility Information: This die is only compatible with 10mm diameter, VT2 system (Mini 54) single-cap snaps. Not suitable for different sizes or systems. Check your snap product code to ensure you've selected the correct die.

E-Buttons Assurance: Manufactured to E-Buttons quality standards, this die set is designed to provide uninterrupted service for many years. Each product that passes rigorous quality control reaches you ready for professional use.
