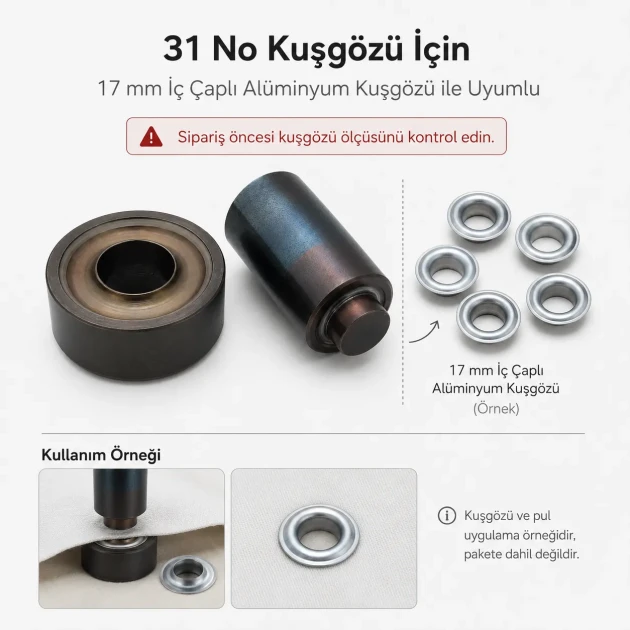

Hand Punch and Setting Tool for Size 31 Aluminum Eyelets 17 mm / 0.67 in AL31TDE

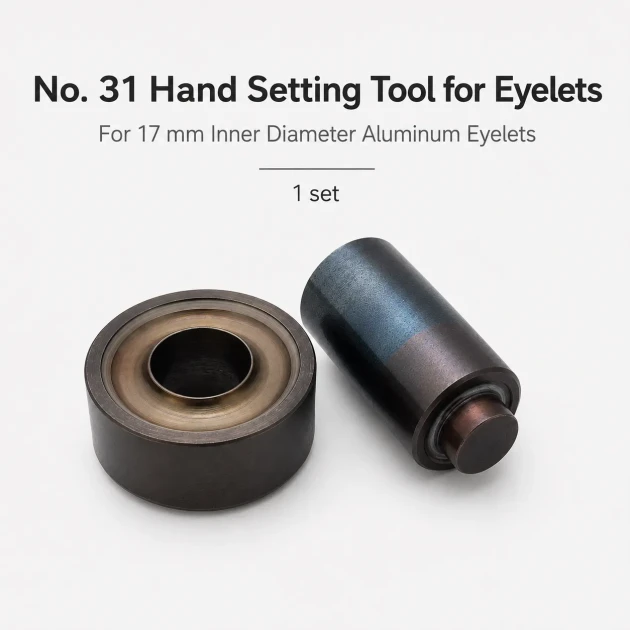

Portable Punching and Setting Tool for Size 31 Eyelets

This hammer-operated hand tool is designed for the matching Size 31 aluminum eyelet used on tarpaulins, tents, awnings, banners, vinyl signs, protective covers and suitable heavy textile surfaces.

Its reversible construction provides two working functions. The conical side helps prepare the opening required for the eyelet barrel, while the raised side helps flare and secure the barrel over the matching metal washer.

The tool does not require a hand press, electric machine or pneumatic equipment. It is a practical option for mobile repairs, samples and occasional installations where the workpiece cannot be placed beneath a fixed press.

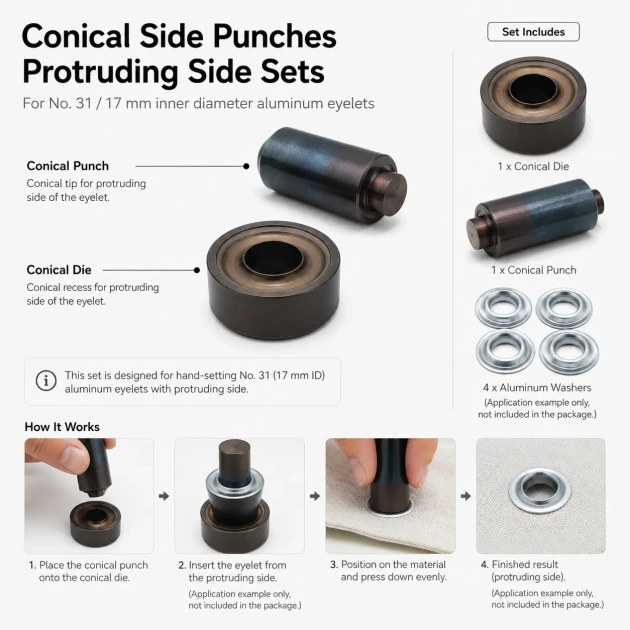

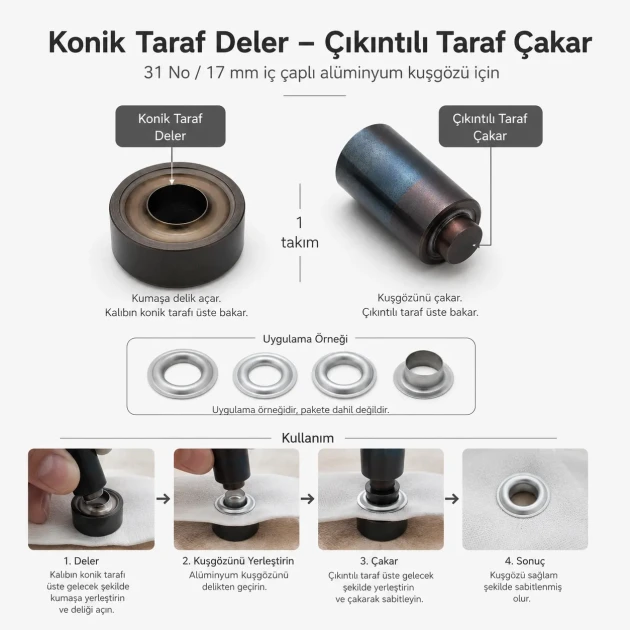

Two Functions in One Hand Tool

Conical side for hole preparation

The conical working side helps prepare the opening through which the eyelet barrel will pass. Place the material on a flat, solid and impact-resistant support before punching.

Raised side for setting the eyelet

After inserting the eyelet and positioning its matching washer, turn the tool to the setting orientation. Centre the raised side over the eyelet barrel and apply controlled hammer strikes to gradually flare the barrel over the washer.

This reversible construction helps complete small punching and setting jobs without carrying two separate manual tools.

When Is This Tool a Practical Choice?

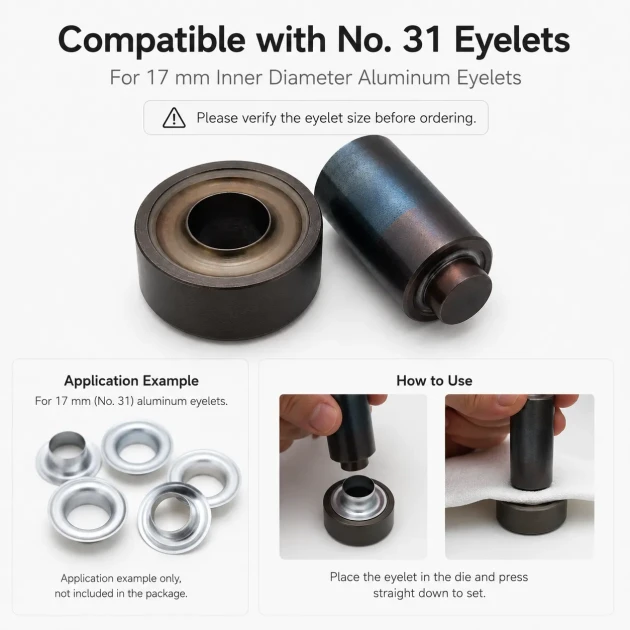

• When installing the matching Size 31 aluminum eyelet
• When a fixed hand press is unavailable
• When the repair area cannot be placed beneath a machine
• For tarp, tent and awning field repairs
• For samples and occasional installations
• When a compact tool is required for a repair kit

Matching Eyelet and Washer Dimensions

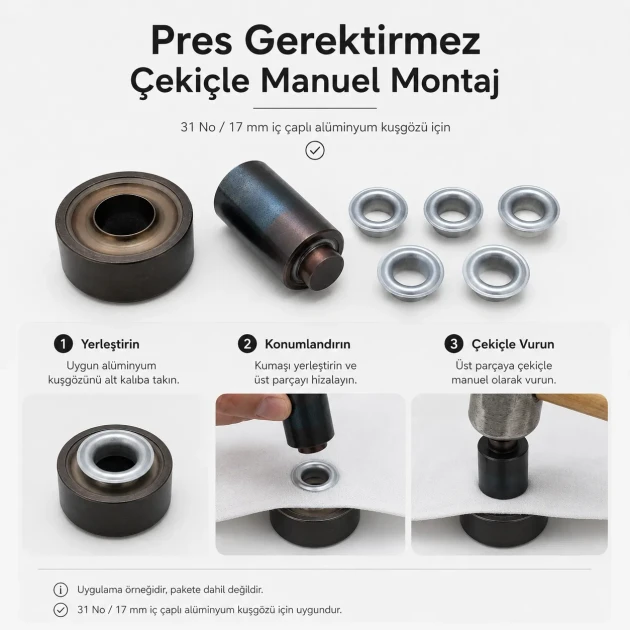

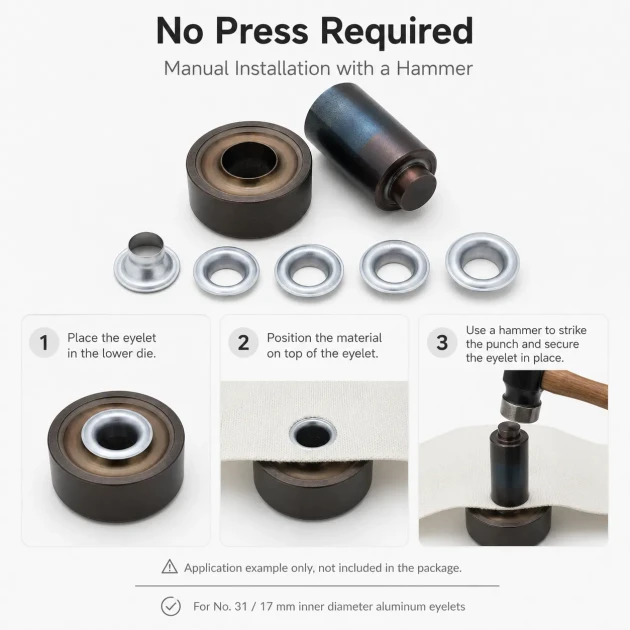

How to Use the Tool

1. Mark the position where the eyelet will be installed.
2. Place the material on a flat, solid and impact-resistant support.
3. Position the conical side vertically over the marked point.
4. Use light, controlled hammer strikes to prepare the opening.
5. Insert the matching Size 31 aluminum eyelet through the prepared area.
6. Place the matching washer over the eyelet barrel.
7. Turn the tool to the setting orientation.
8. Centre the raised side over the eyelet barrel.
9. Keep the tool vertical and apply several controlled hammer strikes.
10. Check that the barrel has opened evenly over the washer.

How Is It Different from Other Eyelet Tools?

This product is different from a punching-only die because it also has a working side that assists with eyelet setting.

It is also different from a threaded upper and lower die set used with a hand press. This tool is held manually and struck directly with a hammer.

It is convenient for repair work, sampling and low-volume installation. A compatible press and professional die may provide more repeatable alignment and pressure for continuous production.

Typical Applications

• Tarpaulin edging and vehicle-cover repairs
• Tent cord and fastening points
• Awning and shade textile applications
• Banner and vinyl hanging openings
• Protective covers and equipment covers
• Camping and outdoor textile products
• Bags and carrying cases
• Heavy fabrics and technical textiles
• Home, workshop and mobile repair kits

Selection and Installation Warnings

• Do not force the tool onto another eyelet size.
• Do not confuse the punching and setting orientations.
• Keep the tool vertical during every hammer strike.
• Use several controlled strikes instead of one excessive blow.
• Do not prepare an opening larger than required.
• Confirm that the eyelet and washer belong to the same system.
• Do not work directly on glass, tiles or brittle surfaces.

Safety Information

• Keep your holding hand away from the hammer impact area.
• Wear suitable eye and hand protection.
• Do not strike the tool while it is leaning to one side.
• Do not use a damaged or deformed tool.
• Secure the work surface before starting.
• Keep the product out of the reach of children.

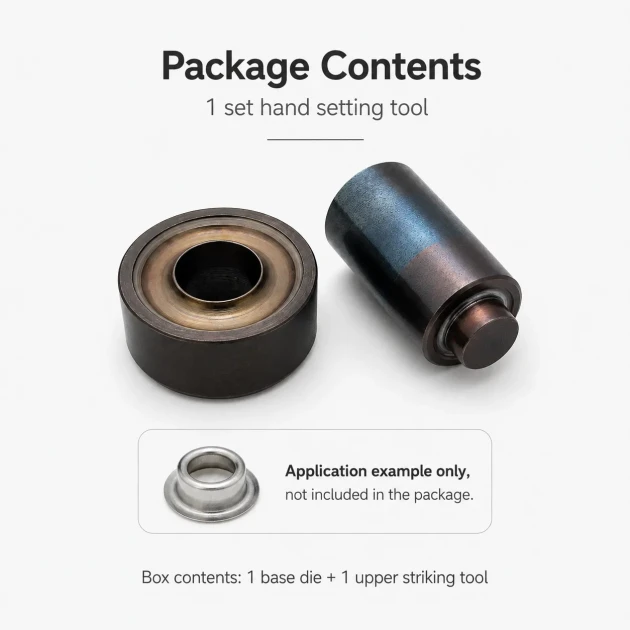

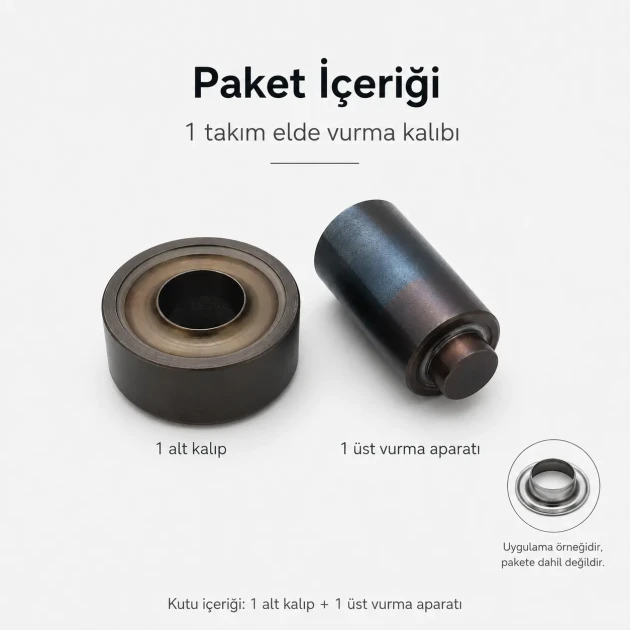

Package Contents

• 1 Size 31 hand punching and eyelet setting tool

Aluminum eyelets, metal washers, hammer, hand press and other installation equipment are not included.

Matching Products and Related Equipment

• Size 31 aluminum eyelet with a 17 mm / 0.67 in inner diameter
• Professional 17 mm / 0.67 in eyelet setting die
• 17 mm / 0.67 in eyelet punching die
• Size 31 self-piercing eyelet die
• Grommet setting dies and tools
• Aluminum eyelets and grommets

The matching eyelet and washer are sold separately.

Frequently Asked Questions
