9.5 mm / 0.37 in Cap Rivet Setting Die KLP00R95

9.5 mm Cap Rivet Setting Die

This Cap Rivet Setting Die is made for controlled installation of compatible 9.5 mm / 0.37 in cap rivets. Its upper and lower die surfaces support accurate positioning during pressing, helping create a cleaner and more centred result on leather goods, bags, textiles, canvas and accessory products.

It is a Rivet Setting Die, not a Punching Die. Rivets are sold separately, and the material hole must be prepared before installation.

Match the Actual Rivet to the Die

The 9.5 mm / 0.37 in measurement identifies the intended cap-rivet size group. It does not guarantee that every rivet with a 9.5 mm visible cap will fit this die.

Confirm the real cap profile, reverse-side construction, post or nail geometry and closure method before production. Nail rivets, single cap rivets and double cap rivets can require different setting surfaces.

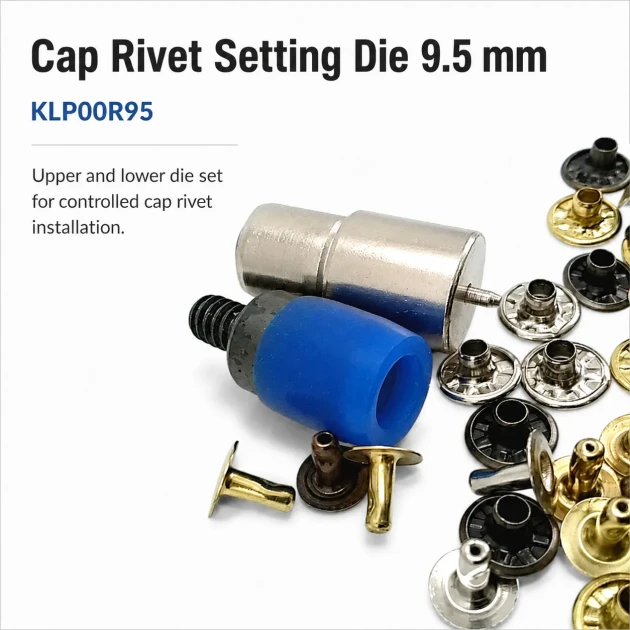

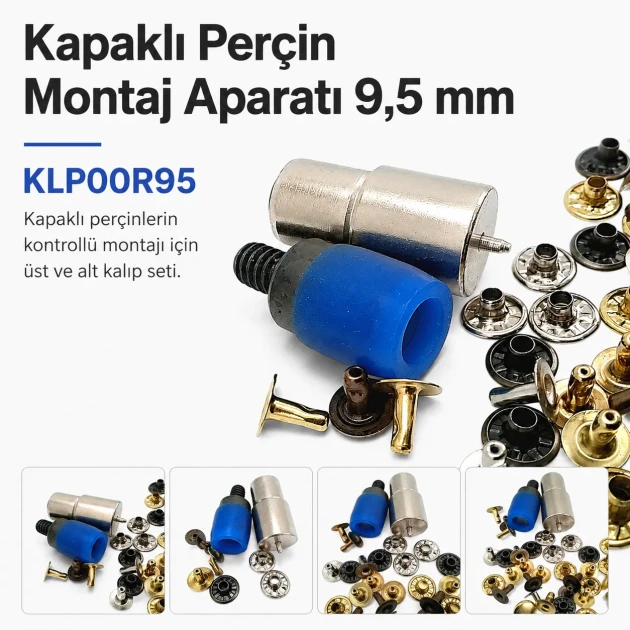

Upper and Lower Setting Surfaces

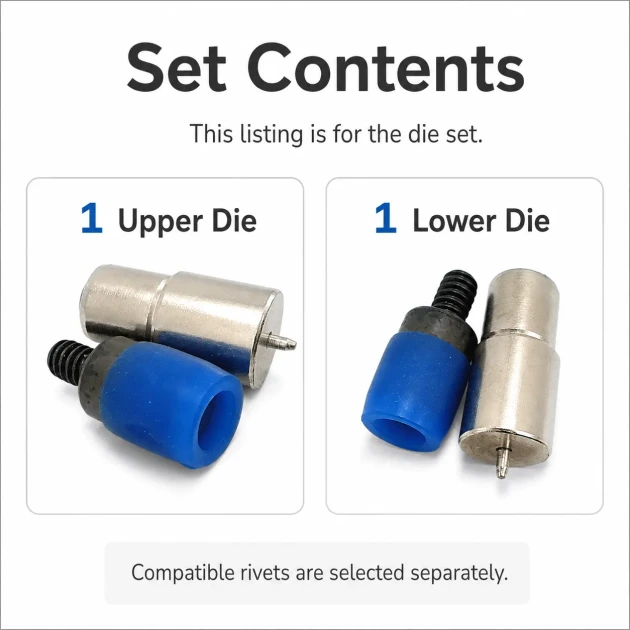

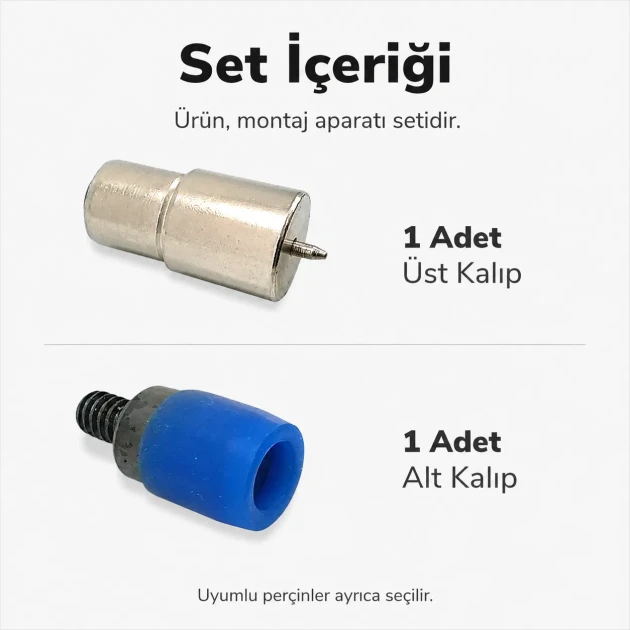

The set contains one upper setting die and one lower setting die. The two parts support the cap and reverse component while controlled pressure is applied.

Correct alignment helps reduce off-centre closure and cap deformation. Perform a sample installation with the actual rivet and material before repeated production.

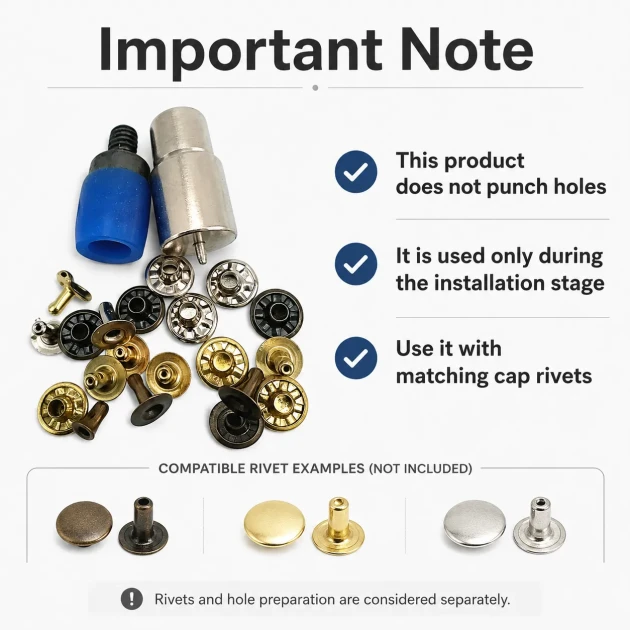

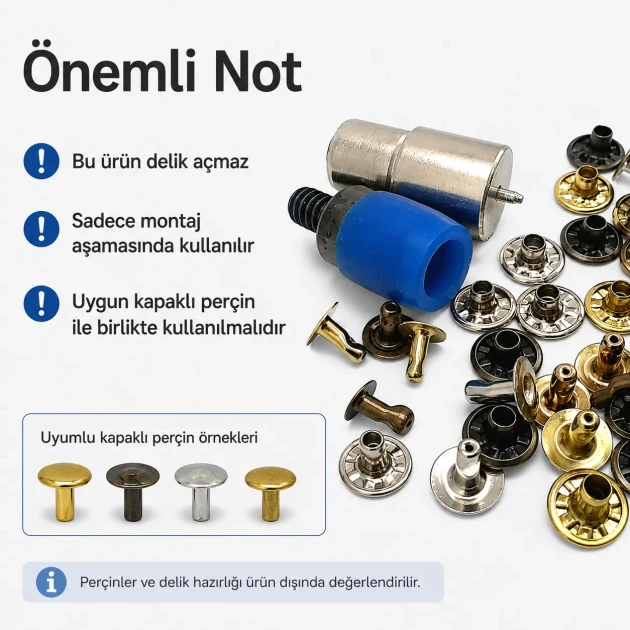

This Tool Does Not Punch Material

Prepare the required hole separately with a suitable Punching Die or punch selected for the actual rivet post, nail or fastening section.

Do not choose the hole size from the cap diameter. The correct hole depends on the fastening section and the thickness and structure of the material stack.

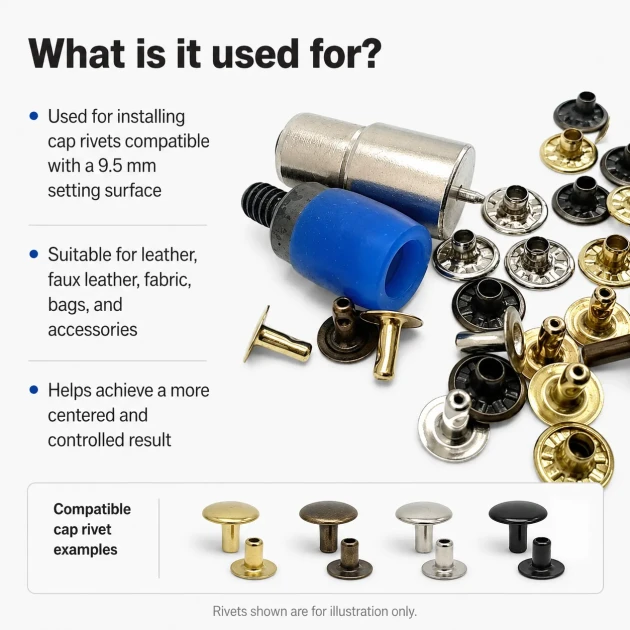

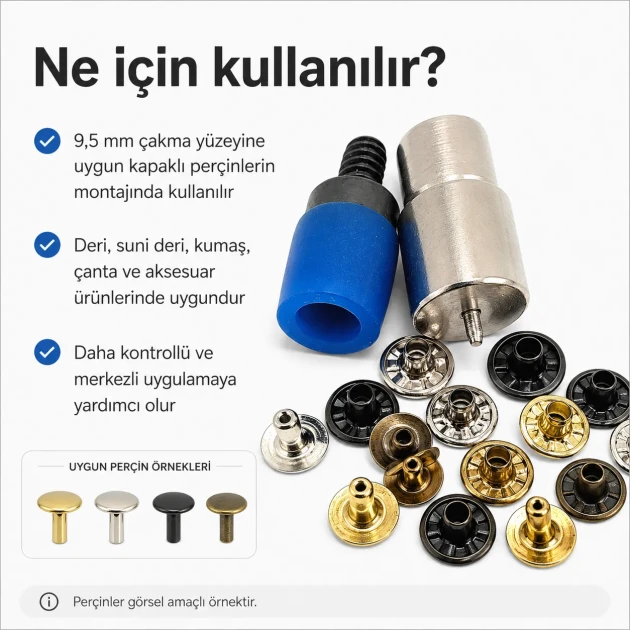

Suitable Applications

• Leather bags, handles, straps and reinforcement points
• Belts, webbing, canvas and textile accessories
• Wallets, card holders, cases and organiser products
• Visible fastening details in craft and workshop production
• Sample making, repair work and small-batch production

Hand Press and Table Press Use

Use this die with a physically compatible hand press or table press. Check the die holder, thread type and press alignment before use.

The M6 and 1/4 in options should be treated as separate die-connection standards. They are not automatically interchangeable without confirming the actual thread and holder structure.

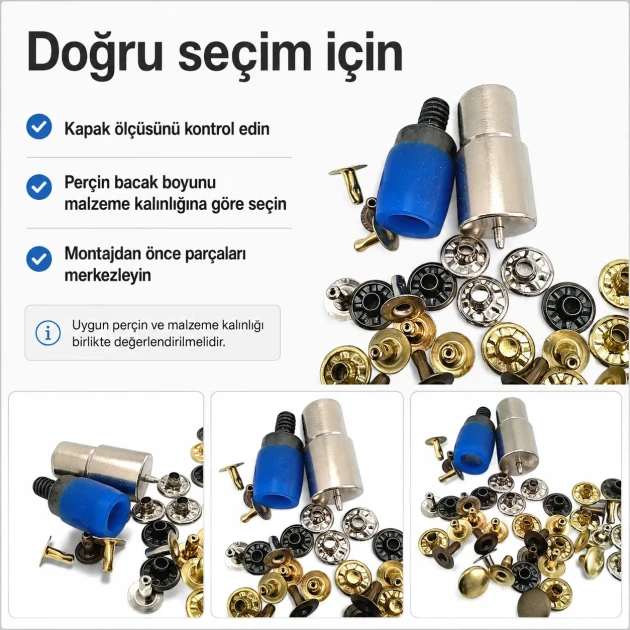

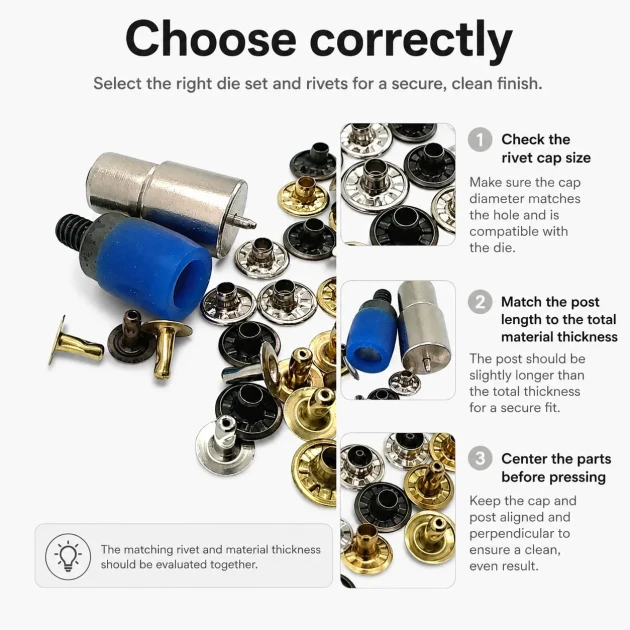

Installation Checklist

1. Select a cap rivet whose real geometry matches the die.
2. Check post or nail length against total material thickness.
3. Prepare the correct hole.
4. Place the rivet components into the upper and lower die surfaces.
5. Align the material stack.
6. Apply controlled pressure.
7. Check cap alignment, closure security and surface condition.

Frequently Asked Questions

What rivets is this die for?

It is for compatible cap rivets in the 9.5 mm / 0.37 in cap-size group.

Does every 9.5 mm rivet fit this die?

No. Cap diameter alone does not confirm compatibility. The cap profile and fastening geometry must match.

Can I use it with nail rivets?

Only after confirming the actual nail-rivet geometry against the die.

Can it set double cap rivets?

Not automatically. Double cap rivets may require a dedicated Double Cap Rivet Setting Die.

Does the die make the rivet hole?

No. Hole preparation requires a separate Punching Die or punch.

Are rivets included?

No. The package contains the upper and lower setting dies only.
