Wide Flat Brass Eyelet Setting Die for 6.2 mm / 0.24 in Eyelets KLP004DUZ

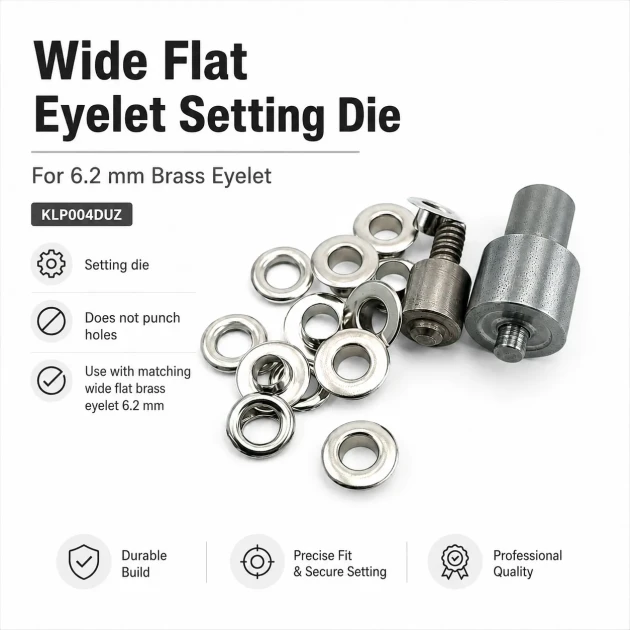

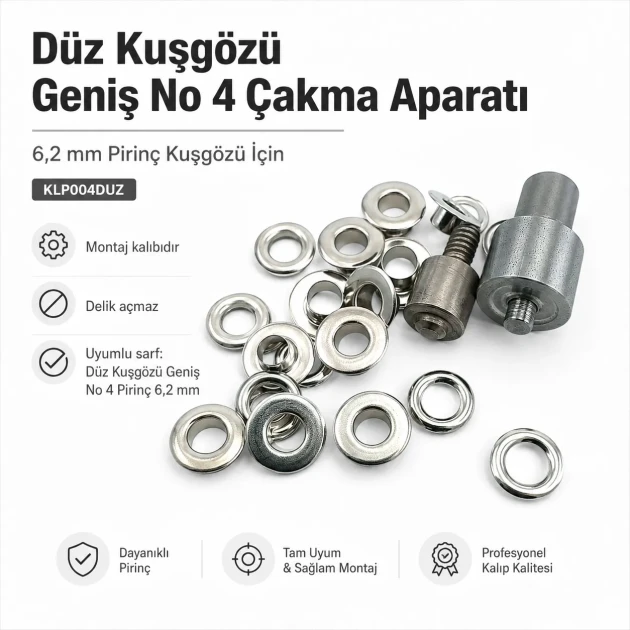

Wide Flat Eyelet Setting Die for 6.2 mm / 0.24 in Brass Eyelets

This Wide Flat Eyelet Setting Die is designed for controlled installation of compatible brass eyelets. It closes the eyelet barrel evenly over the matching washer and helps create a clean, stable fastening point on tarpaulin, awning fabric, leather goods, bags, textile accessories and decorative applications.

This product is a setting tool only. It installs the eyelet and washer but does not prepare the opening in the material. Use a separate Punching Die only where the selected eyelet system and material require a pre-hole.

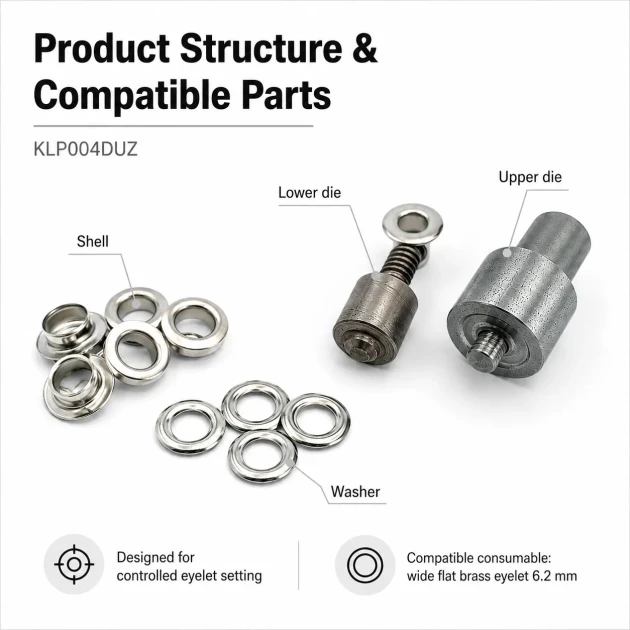

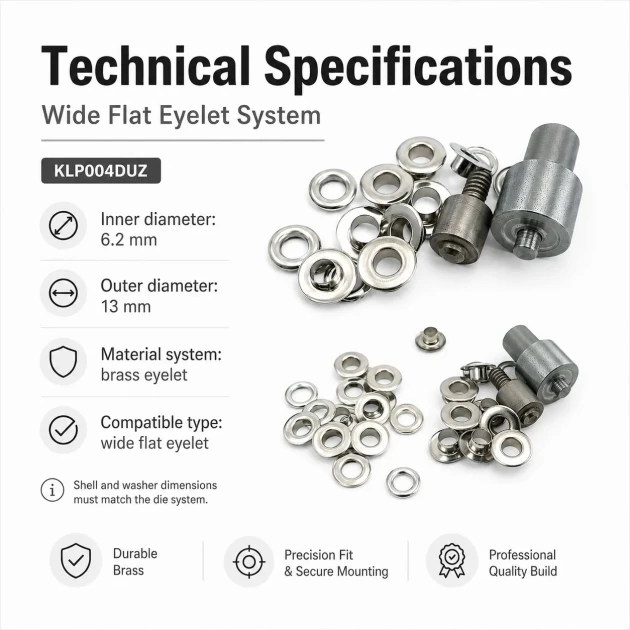

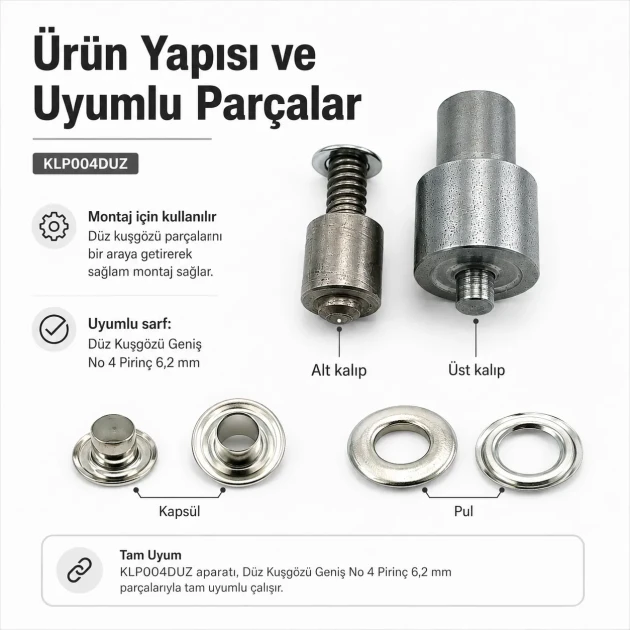

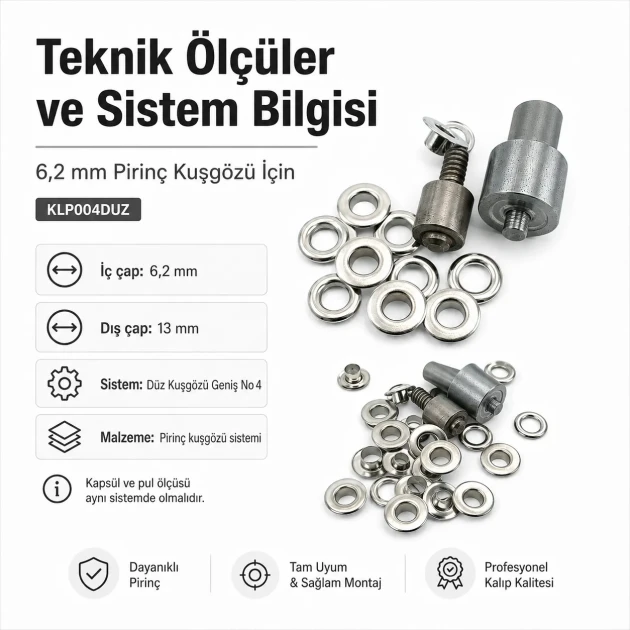

Compatible Eyelet Dimensions

• Eyelet outer diameter: 13 mm / 0.51 in
• Eyelet inner diameter: 6.2 mm / 0.24 in
• Eyelet barrel height: 5 mm / 0.20 in
• Washer outer diameter: 13 mm / 0.51 in
• Washer inner diameter: 7.5 mm / 0.30 in
• Washer height: 1 mm / 0.04 in

Use this tool only with matching wide flat brass eyelets. A standard flat eyelet with a 5.2 mm / 0.20 in inner opening has different eyelet-and-washer geometry and should not be installed with this die.

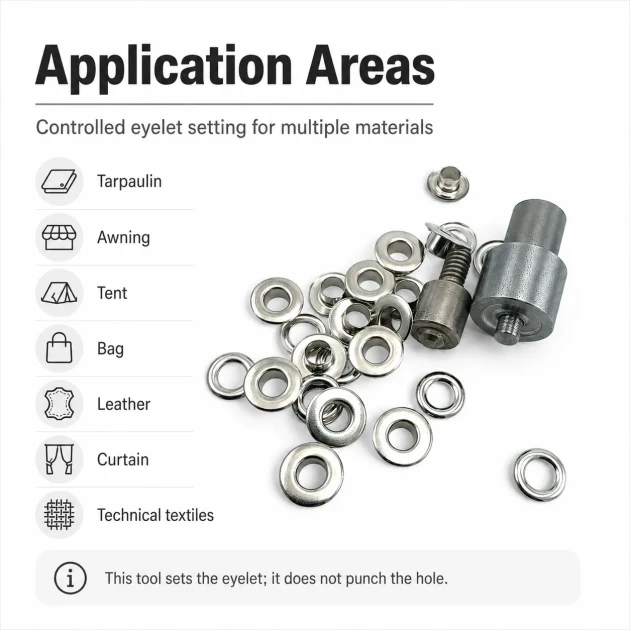

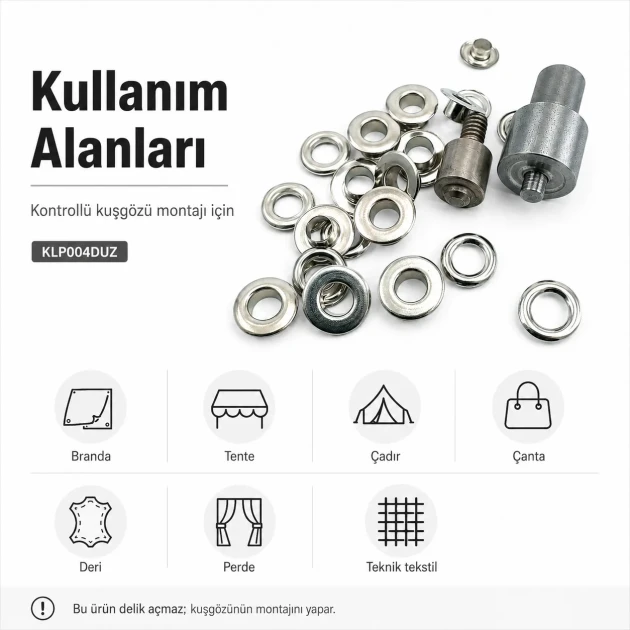

Suitable Applications

• Tarpaulin, awning and protective-cover fastening points
• Tent and outdoor textile equipment
• Leather bags, pouches and accessory details
• Curtains, decorative textiles and home textile products
• Rope, cord, lacing and tie-down passages
• Repair, sample and workshop applications

Press Compatibility

Use this setting die with a compatible hand-hit tool, manual hand press, impact press, electric machine or pneumatic machine after confirming the actual die-holder and press connection.

Do not assume metric and inch-thread systems are interchangeable. Similar outside diameters do not guarantee mechanical compatibility because thread pitch and thread profile can differ.

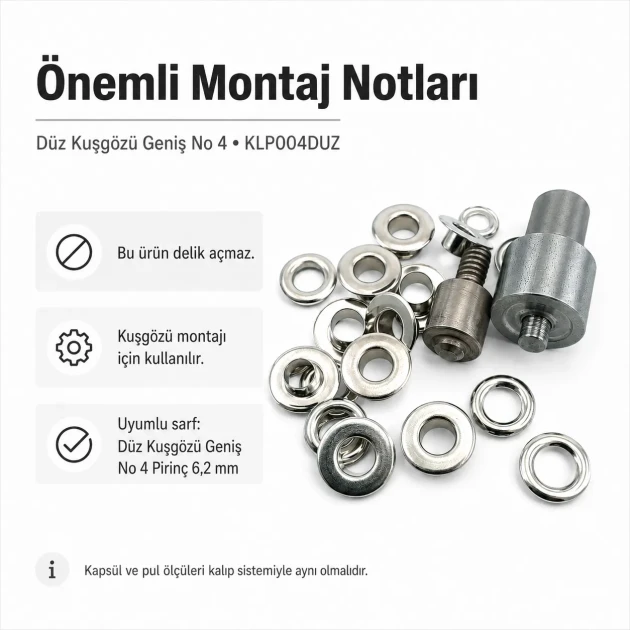

Before Ordering

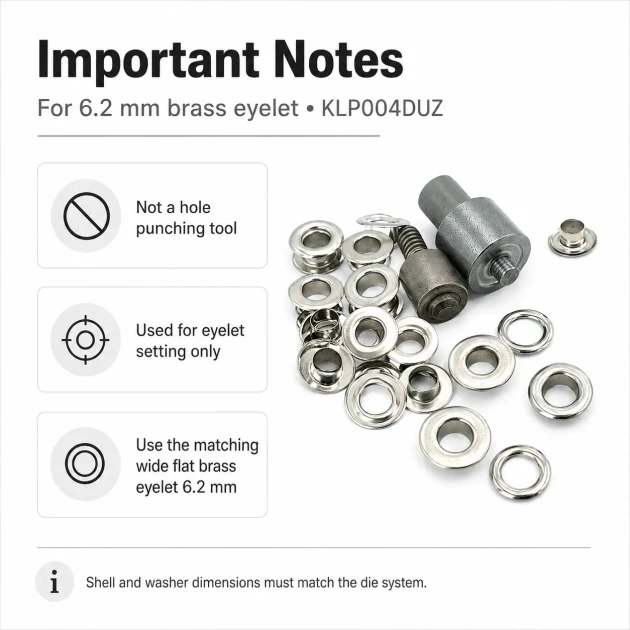

• This is an Eyelet Setting Die, not a Punching Die.
• Confirm inner diameter, outer diameter, barrel height and washer geometry together.
• Use only with compatible wide flat brass eyelets.
• Do not use with standard 5.2 mm / 0.20 in inner-diameter flat eyelets.
• Test thick, coated, rigid or multilayer materials before production.
• Eyelets, washers, presses, adaptors and Punching Dies are separate products unless explicitly included.

Frequently Asked Questions

Which eyelets does this die install?

It installs compatible wide flat brass eyelets with a 6.2 mm / 0.24 in inner diameter and 13 mm / 0.51 in outer diameter.

Can it install standard 5.2 mm eyelets?

No. The standard 5.2 mm eyelet system has different dimensions and washer geometry.

Does this tool punch the material?

No. It installs the eyelet and washer. Use a separate Punching Die where a pre-hole is required.

Can it be used with a manual hand press?

Yes, when the die connection and press connection are physically compatible.

Is it suitable for tarpaulin work?

Yes, when used with the matching eyelet system, suitable material preparation and an appropriate press setup.
