Extra-Long Domed Sheet Metal Eyelet 5.3 mm / 0.209 in with Washer Options MT0003EUS

Extra-Long Eyelet for Thick and Layered Materials

This extra-long domed sheet metal eyelet provides a neat metal finish around small lace, cord and fastening openings on footwear, bags, leather goods, faux leather, thick fabrics, layered textiles, protective cases and suitable accessory products.

The 5.3 mm / 0.209 in inner opening supports compatible thin cords and laces. Its 9.7 mm / 0.382 in domed outer surface covers the edge of the prepared opening, while the 7.5 mm / 0.295 in extra-long barrel is formed over the selected washer during installation.

The extended barrel can be considered when a standard eyelet is too short to pass through the complete material stack. Final compatibility still depends on the compressed material thickness, washer type, setting-die profile and press adjustment.

When Should This Eyelet Be Selected?

• When an eyelet in the 5–5.5 mm / 0.197–0.217 in inner-diameter class is required
• When a standard barrel is too short for the material layers
• For thick fabrics and multi-layer textile applications
• When additional barrel length is required for leather or faux leather
• When a domed and visible front profile is preferred
• When a plastic or metal washer option is required
• For footwear, bags, garments and accessory production

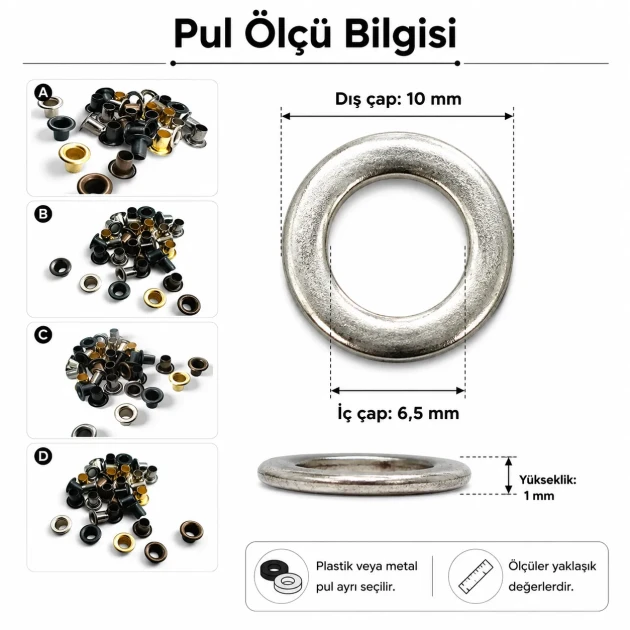

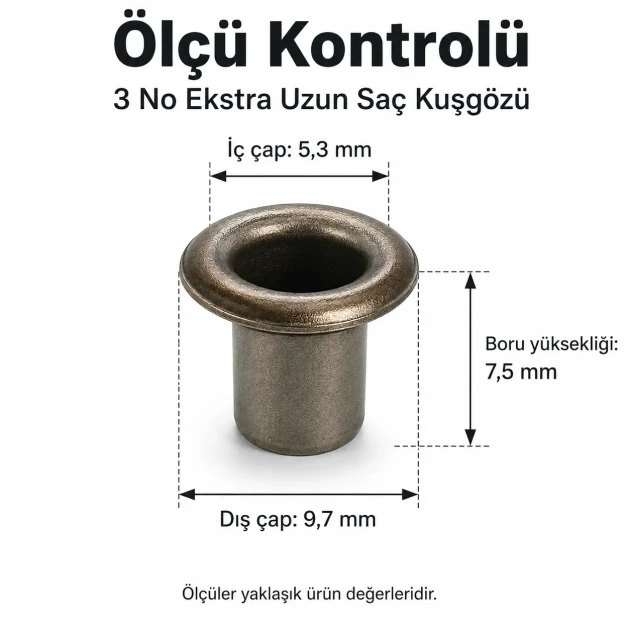

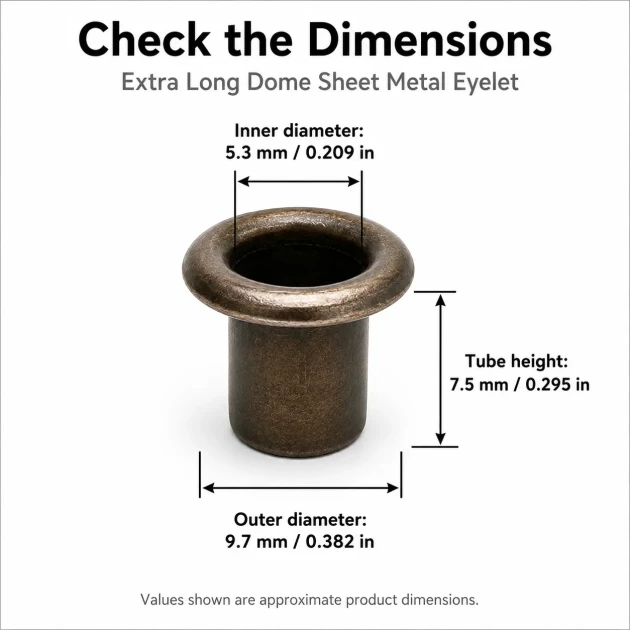

Eyelet and Washer Measurements

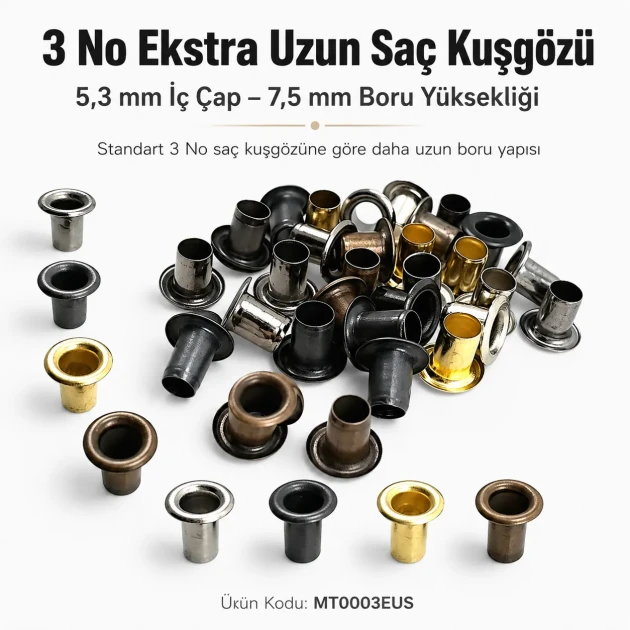

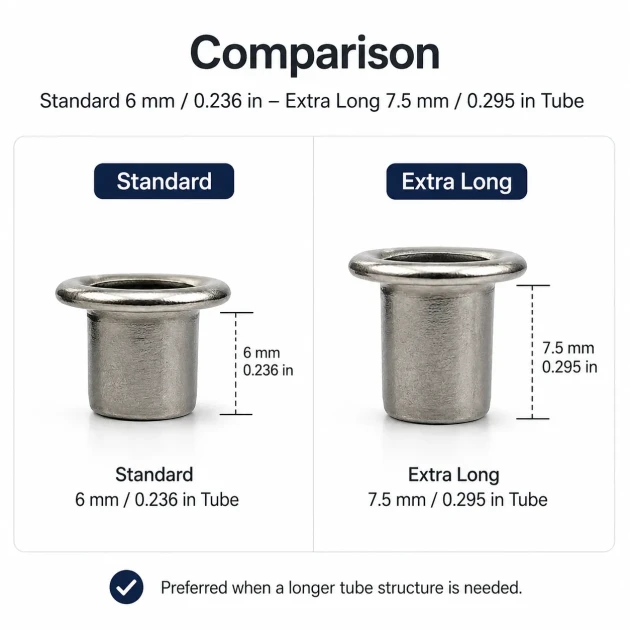

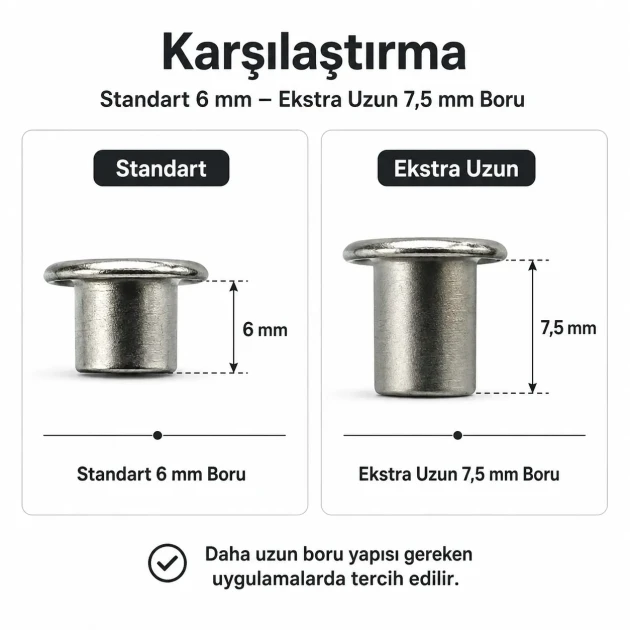

How Does It Differ from the Standard Version?

The standard sheet metal eyelet measures 5.3 mm / 0.209 in inside diameter, 9.2 mm / 0.362 in outside diameter and 6 mm / 0.236 in in barrel height.

This extra-long version retains the 5.3 mm / 0.209 in inner opening but increases the outer diameter to 9.7 mm / 0.382 in and the barrel height to 7.5 mm / 0.295 in.

The barrel is approximately 1.5 mm / 0.059 in longer. This additional length may help when working with thicker or more heavily layered materials.

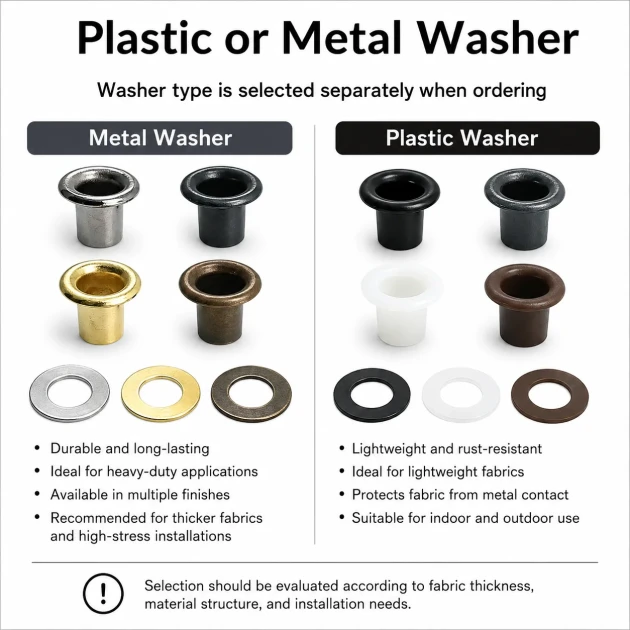

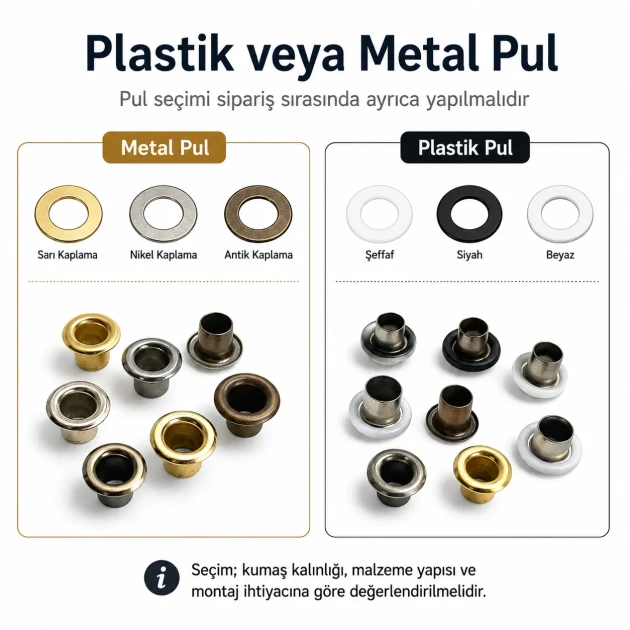

Plastic Washer or Metal Washer?

Plastic washer

A plastic washer can be considered when a lighter and softer rear support is preferred for suitable garments, textiles, tags and accessory applications.

Metal washer

A metal washer may be selected when a conventional all-metal connection and metal rear finish are preferred for footwear, bags, leather accessories and similar products.

Plastic and metal washers are alternative product options. Do not assume that both washer types are supplied together.

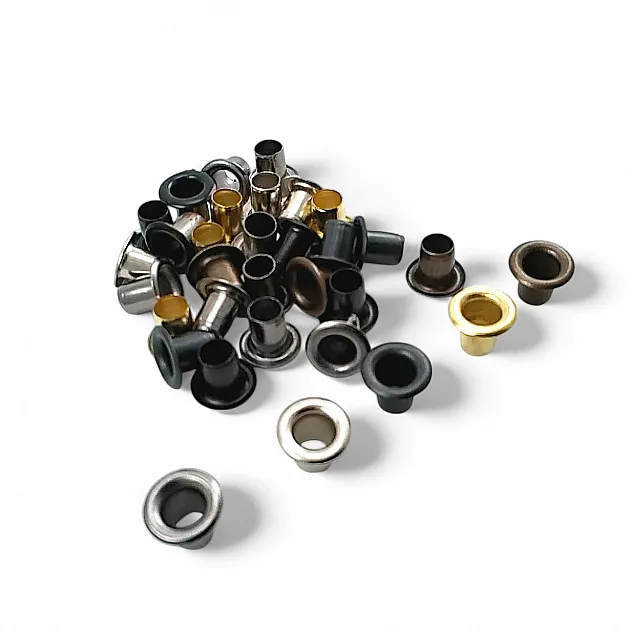

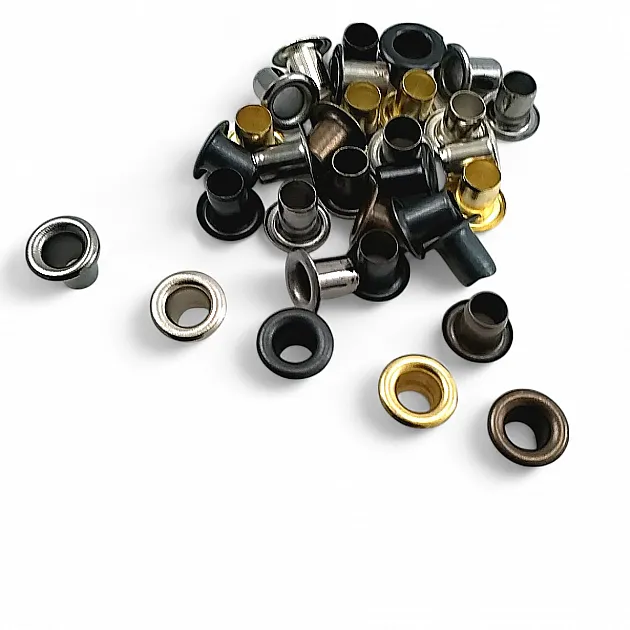

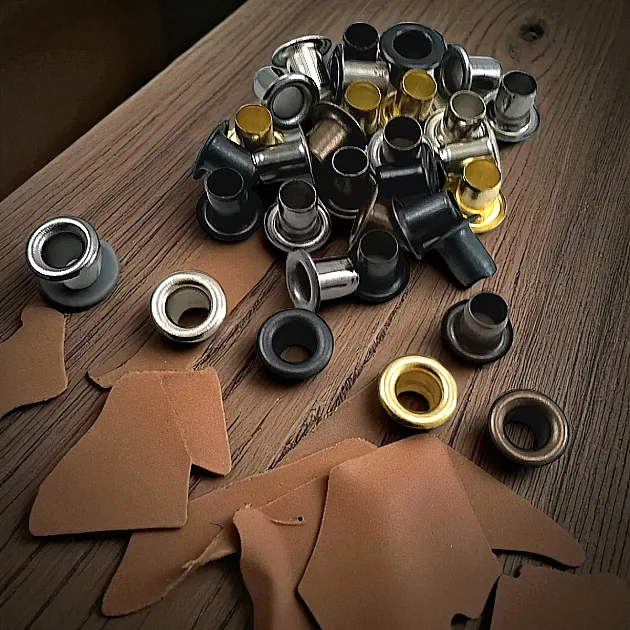

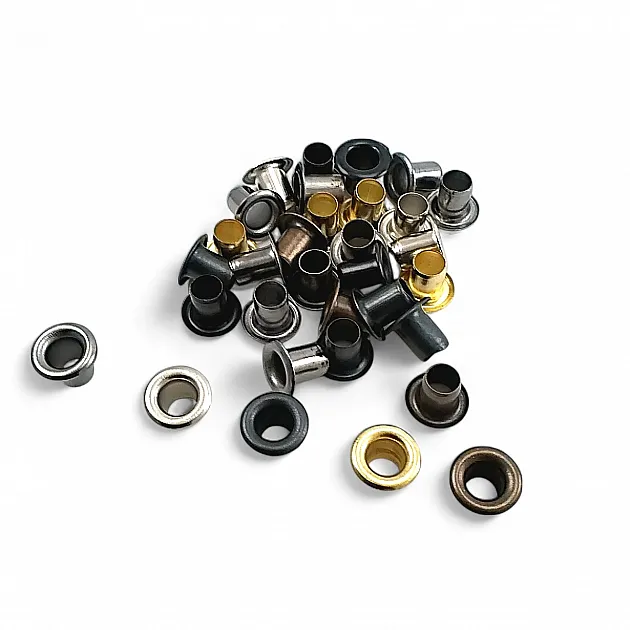

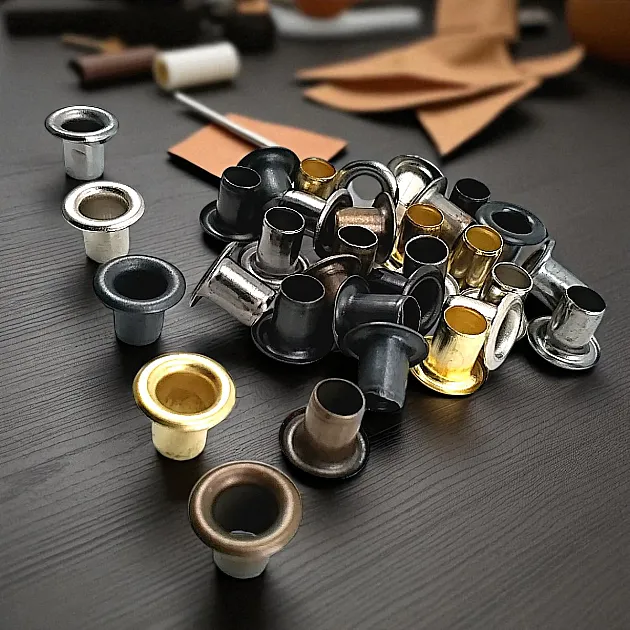

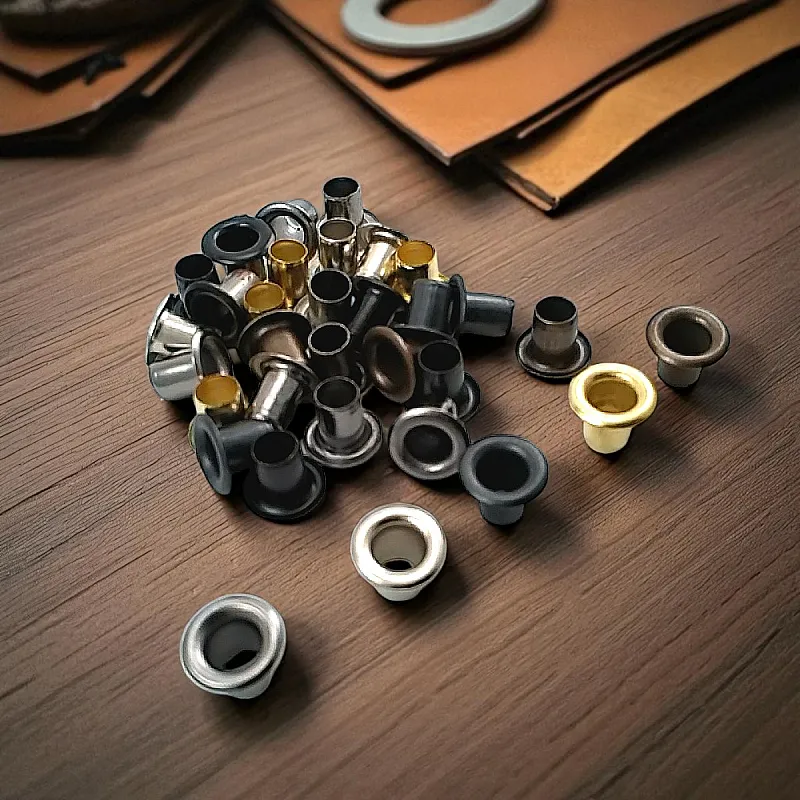

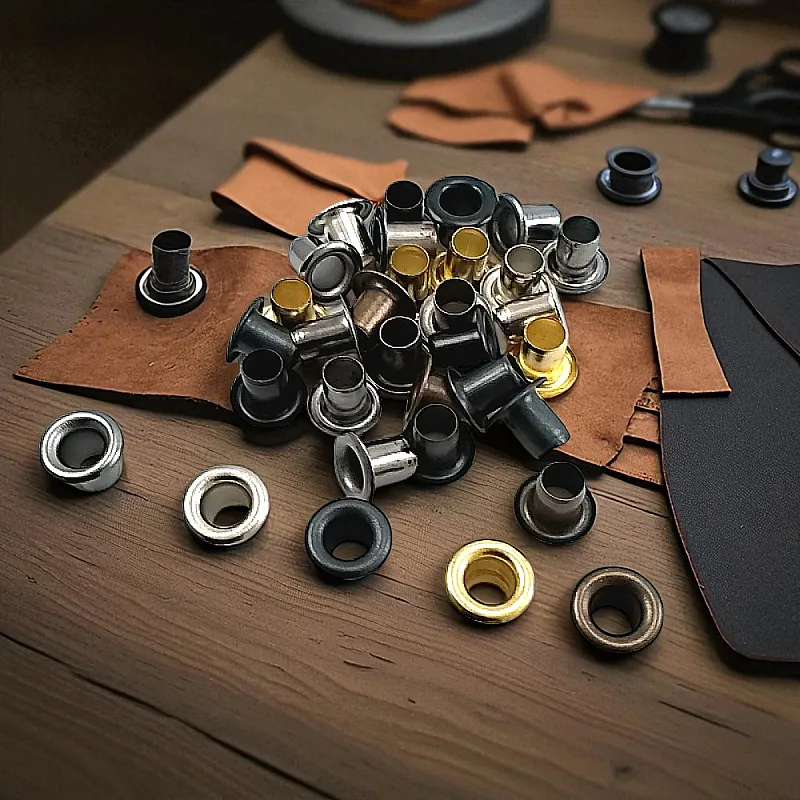

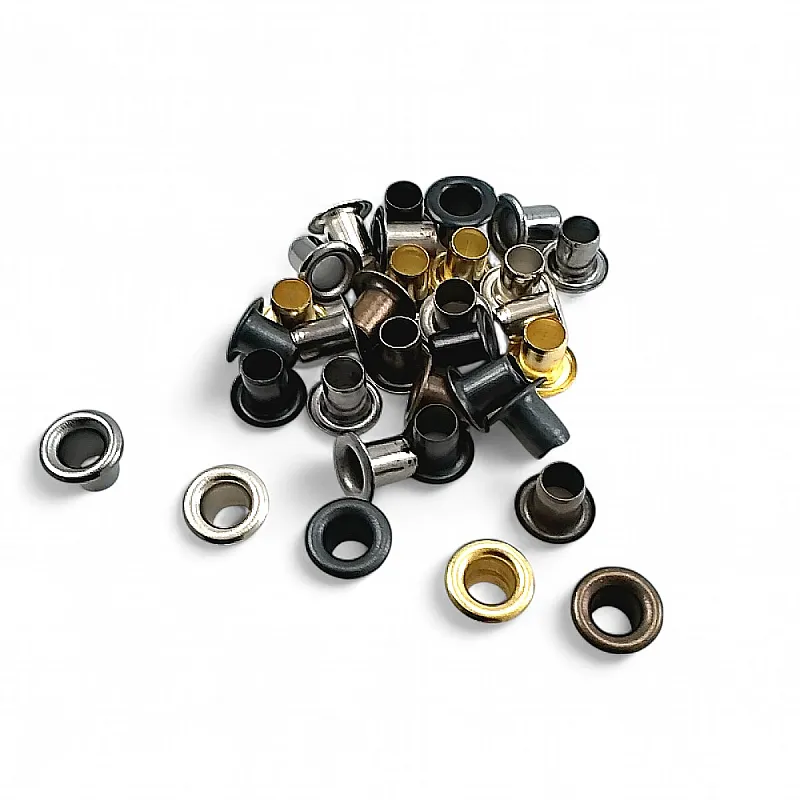

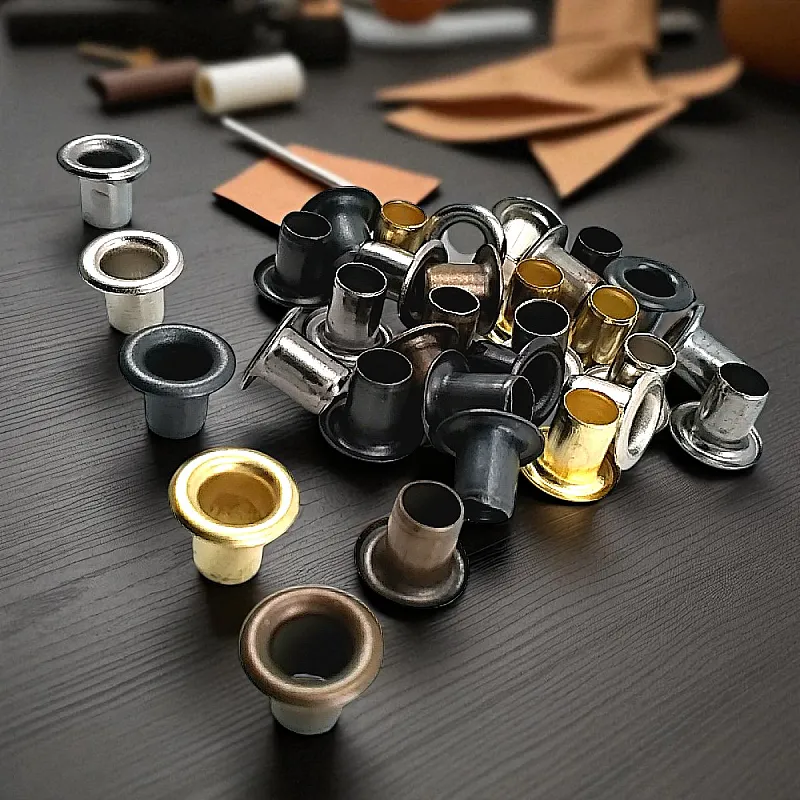

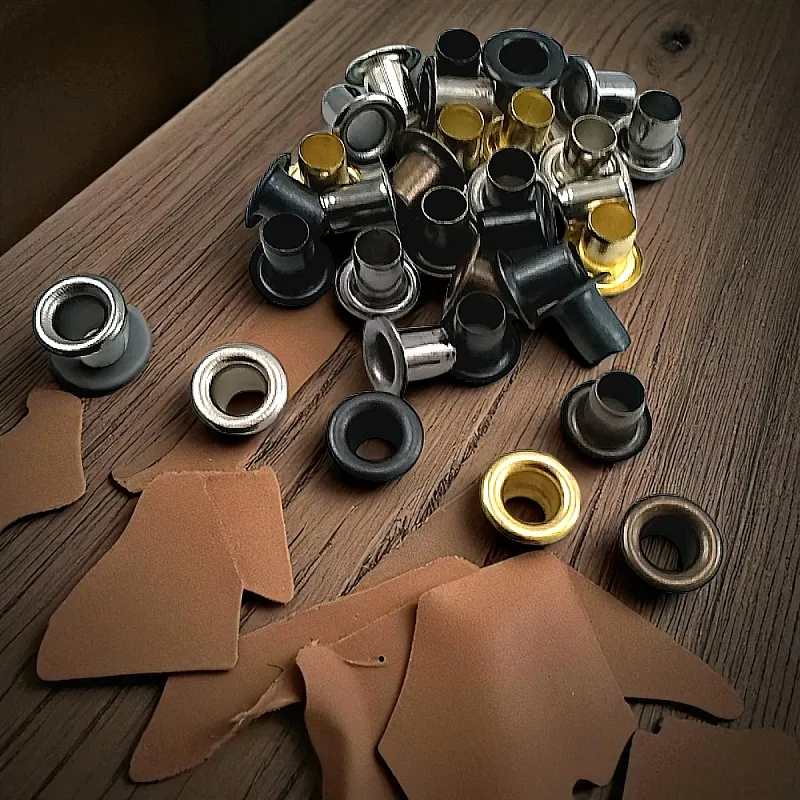

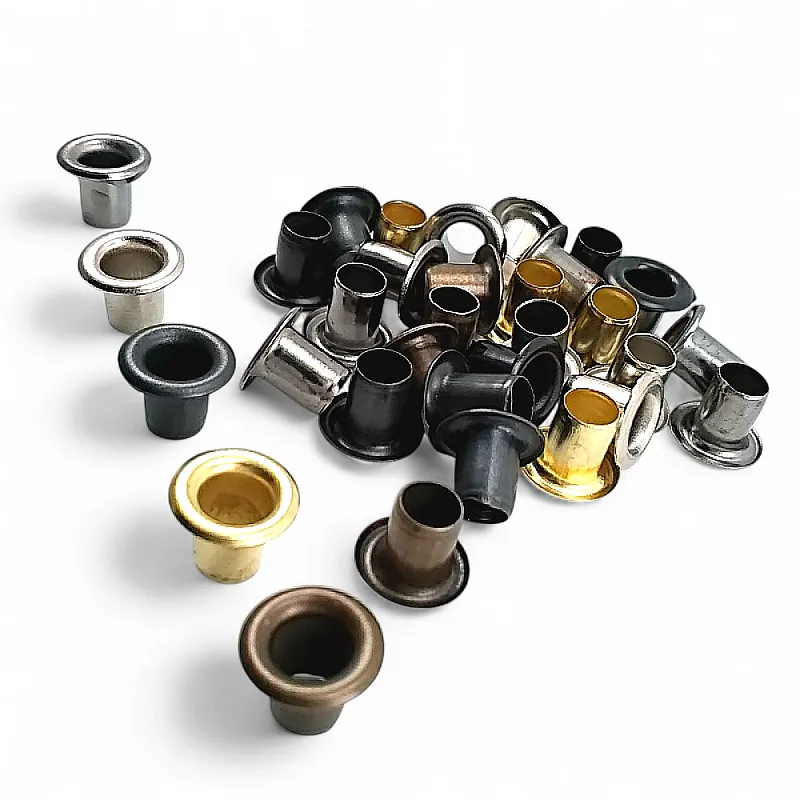

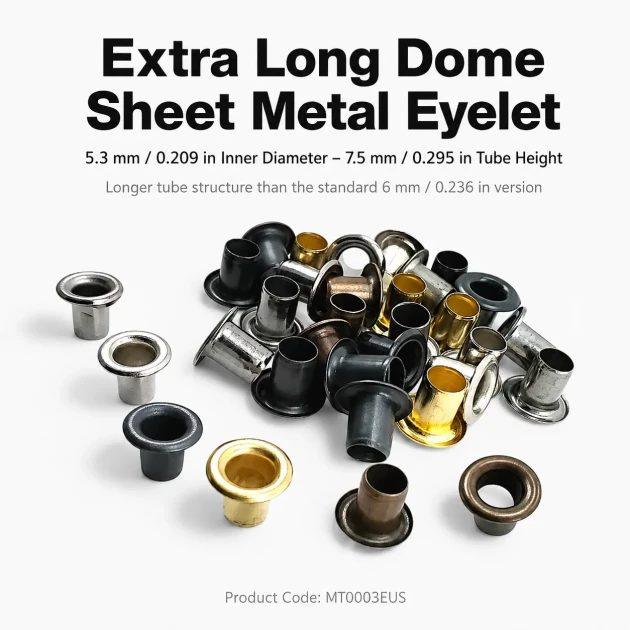

Finish Options

• Nickel
• Black Nickel
• Gold
• Antique Brass
• Gun Metal

The selected finish changes the appearance of the eyelet. It does not change the sheet-metal base material into brass or stainless steel.

Typical Applications

• Footwear lace and cord openings
• Bags, wallets and carrying cases
• Leather and faux-leather accessories
• Thick fabrics and multi-layer textiles
• Jackets, coats and workwear details
• Tags, sample cards and thick cardboard
• Protective and camping textile products
• Craft and decorative accessory projects

Compatible Setting and Punching Tools

A setting die suitable for eyelets in the approximately 5–5.6 mm / 0.197–0.220 in inner-diameter class may be used to form the barrel over the selected washer.

A 5 mm / 0.197 in punching die or hole cutter can be considered for preparing the opening. Material thickness, stretch, fibre structure and number of layers can affect the required hole size.

• Setting die for 5–5.6 mm / 0.197–0.220 in eyelets
• 5 mm / 0.197 in eyelet punching die
• 5 mm / 0.197 in hole cutter
• Sheet metal eyelets
• Extra-long brass eyelet alternative

The diameter class may match the standard setting die, but the 7.5 mm / 0.295 in extra-long barrel may require a compatible die profile and adjusted press pressure. Test the complete system before production.

Installation Steps

1. Mark the required eyelet position.
2. Measure the total compressed thickness of the material layers.
3. Prepare a controlled opening with a compatible punching tool.
4. Insert the eyelet through the front of the material.
5. Position the selected plastic or metal washer on the rear side.
6. Centre the eyelet and washer in the setting die.
7. Begin with low press pressure.
8. Increase the pressure gradually until the barrel opens over the washer.
9. Check that the barrel remains centred and closes evenly.
10. Begin full production only after a successful sample installation.

Selection and Installation Warnings

• Do not select the product using only a traditional size number.
• Check the inner diameter, outer diameter and barrel height together.
• Do not assume that the extra-long barrel is suitable for thin materials.
• Do not prepare an opening larger than required.
• Keep the eyelet and washer centred in the setting die.
• Do not position the setting die at an angle.
• Do not apply excessive pressure in one step.
• Do not describe the product as brass or stainless steel.

Package Contents

• Extra-long domed sheet metal eyelets according to the selected quantity
• The selected plastic or metal washer option

Available quantity options are 1,000, 3,000 or 10,000 pieces. The setting die, punching tool, press and other installation equipment are not included.
