Sheet Metal Eyelet 5.3 mm / 0.209 in Inner Diameter with Washer Options Pack of 250 K0008

Compact Sheet-Metal Eyelet for Textile and Accessory Applications

This sheet-metal eyelet is designed to finish the edges of small openings on footwear, garments, bags, leather goods, tags, packaging, craft products and other suitable surfaces.

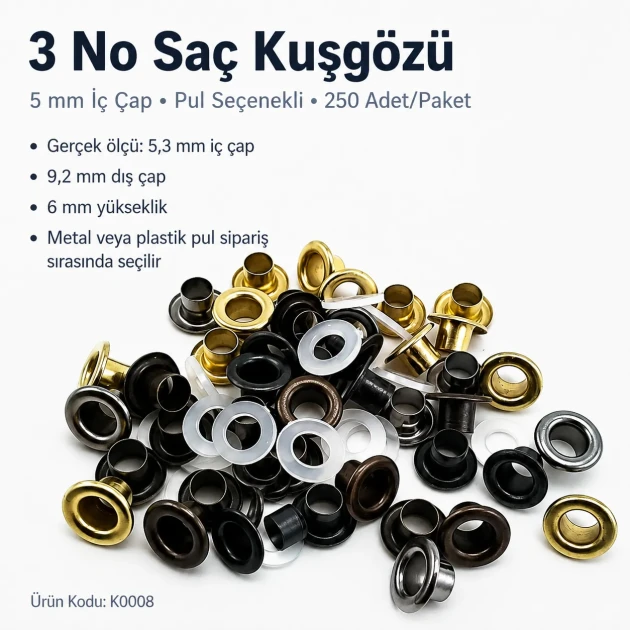

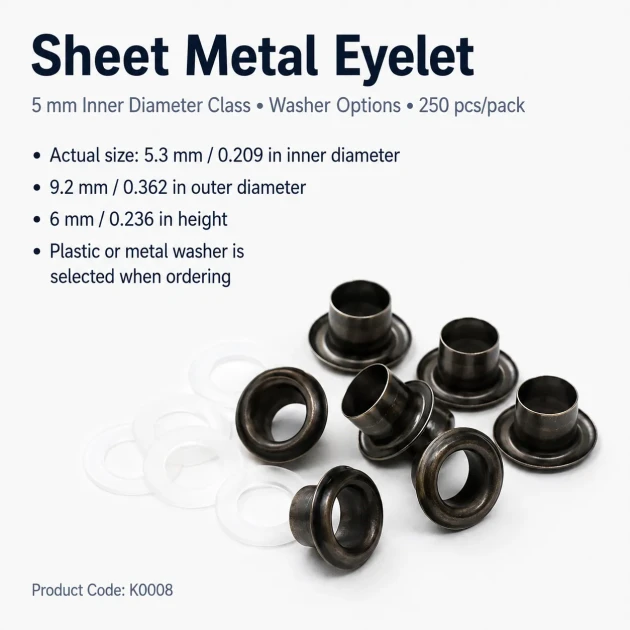

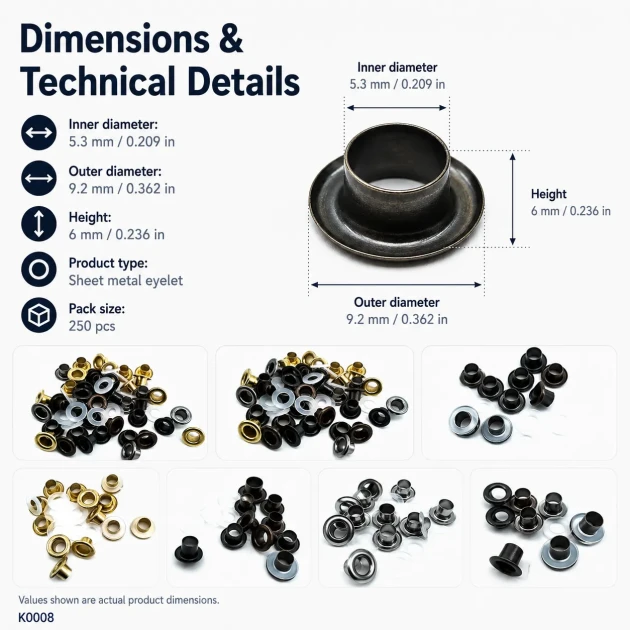

Its 5.3 mm / 0.209 in inner opening can be used for thin cords, laces and similar components. The 9.2 mm / 0.362 in outer diameter covers the edge of the prepared hole, while the 6 mm / 0.236 in barrel is formed over a compatible washer during installation.

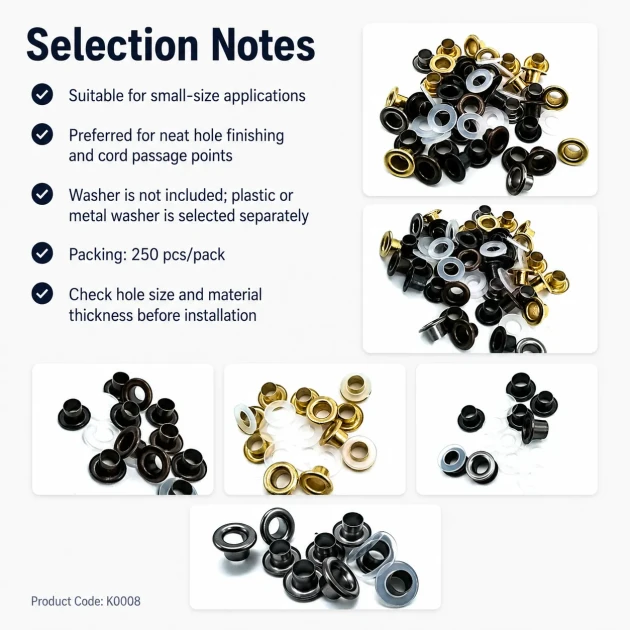

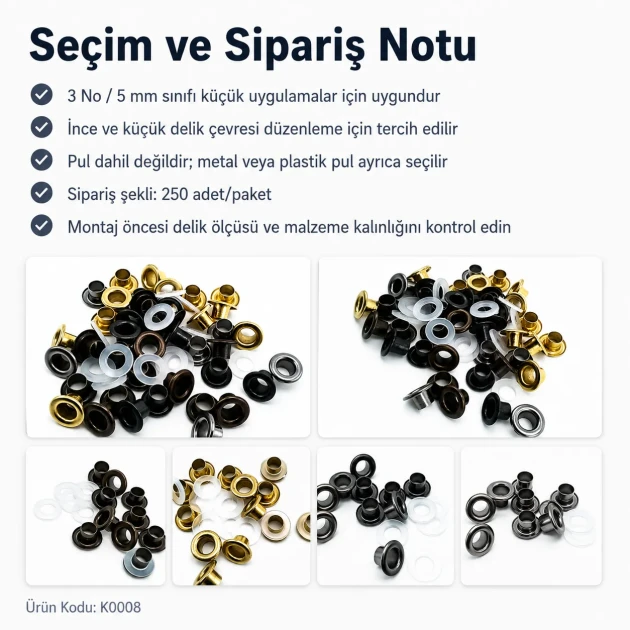

The product is supplied in packages of 250 eyelet capsules. A plastic washer or metal washer can be selected according to the application and the required back-side finish.

When Should This Eyelet Be Selected?

• When an opening in the 5–5.5 mm / 0.197–0.217 in class is required
• For small shoe-lace or cord passage points
• When a compact metal finish is required on garments or accessories
• For bags, leather goods, textile labels, card tags or craft products
• When an economical sheet-metal eyelet is preferred
• When a choice between plastic and metal washers is required

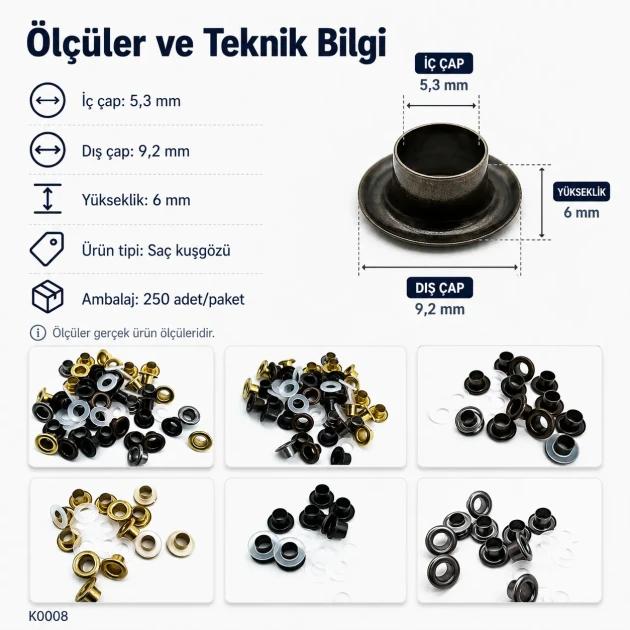

Technical Measurements and Package Information

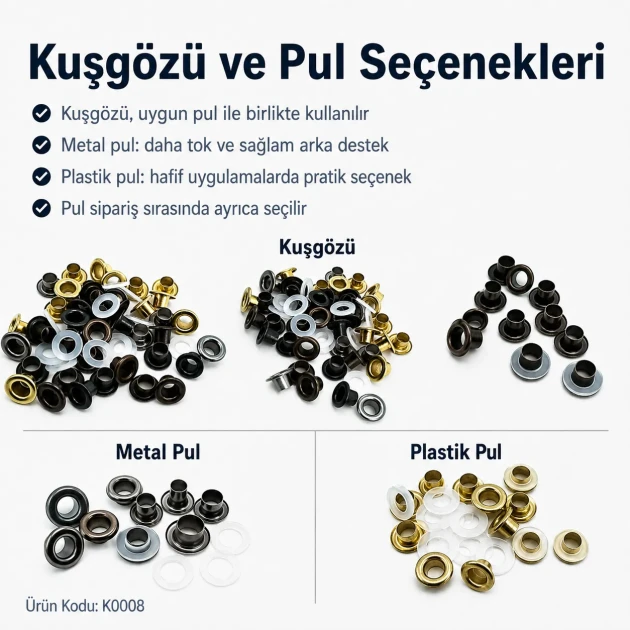

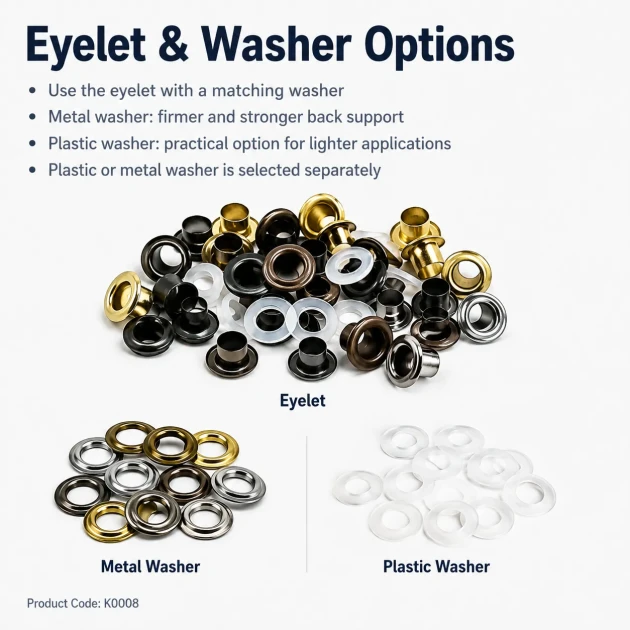

Plastic Washer or Metal Washer?

Plastic washer

A plastic washer can be considered when a lighter and softer supporting component is preferred on suitable textile or accessory surfaces.

The washer dimensions, material thickness and installation die must still be checked before production.

Metal washer

A metal washer can be selected when a conventional all-metal connection and a metal back-side finish are preferred.

The required washer type must be selected from the product options. Confirm that the selected washer matches the eyelet and installation die before use.

How Does It Differ from Brass and Stainless-Steel Eyelets?

Sheet-metal eyelets provide an economical option for garments, footwear, bags, tags, packaging, lightweight textile products and craft applications.

Brass eyelets may be considered when a different material structure, forming behaviour or premium finish is required. Stainless-steel eyelets may be more suitable when the application involves demanding moisture, washing or outdoor conditions.

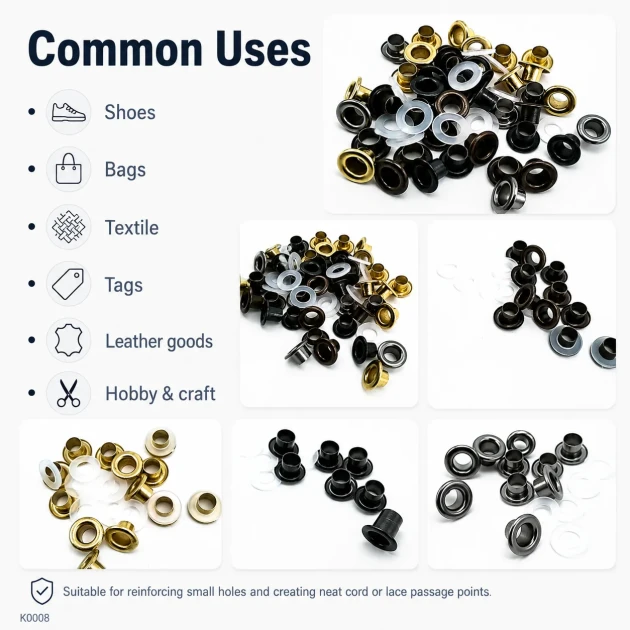

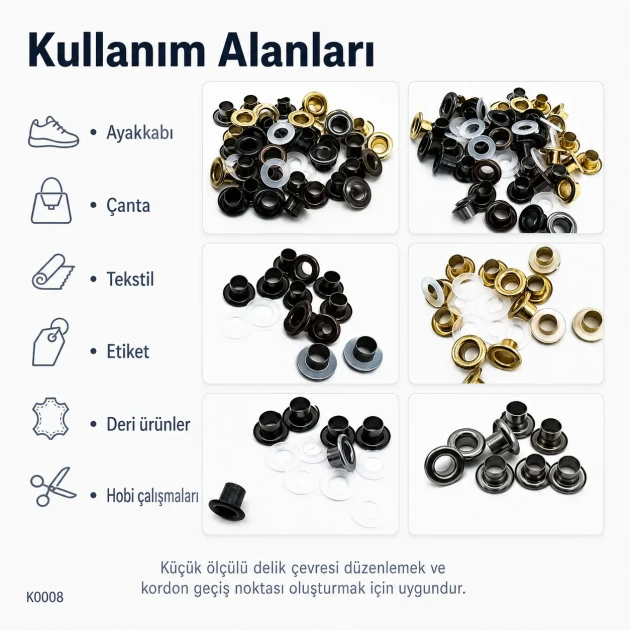

Typical Applications

• Shoe-lace openings
• Shirts, blouses and fashion garments
• Workwear and uniforms
• Bodysuits and knitted garments
• Denim shirts and casual clothing
• Baby and children’s products
• Bags, wallets and small leather accessories
• Thin cord and lace passage points
• Tags, card products and packaging
• Craft and decorative textile projects

Compatible Installation Equipment

A compatible eyelet setting die must be used to form the barrel evenly over the selected washer. The live compatible die is specified for standard eyelets in the 5–5.6 mm / 0.197–0.220 in inner-diameter class.

A separate 5 mm / 0.197 in punching die can be used to prepare the installation hole before setting. Hole size may require testing according to the material’s thickness, stretch and number of layers.

• Eyelet setting die for the 5–5.6 mm / 0.197–0.220 in class
• 5 mm / 0.197 in eyelet hole-punching die
• Manual hand press for eyelet installation
• All eyelets and grommets

Installation Steps

1. Mark the required eyelet position.
2. Check the material thickness and number of layers.
3. Prepare an approximately 5 mm / 0.197 in opening with a compatible punching die.
4. Insert the eyelet capsule through the front of the material.
5. Position the selected plastic or metal washer on the back.
6. Place the eyelet centrally into the compatible setting die.
7. Apply the press gradually to form the barrel over the washer.
8. Check that the eyelet is straight, secure and does not cut into the material.

Selection and Installation Warnings

• Do not treat the product as an eyelet with a 10 mm / 0.394 in inner diameter.
• Use the verified 5.3 mm / 0.209 in inner diameter when selecting accessories.
• Check the 9.2 mm / 0.362 in outer diameter and 6 mm / 0.236 in height.
• Confirm that the eyelet, washer and setting die belong to compatible systems.
• Do not prepare an opening larger than required.
• Do not position the setting die at an angle.
• Test thin, flexible or layered materials before final production.

Package Contents

• 250 sheet-metal eyelet capsules

A plastic or metal washer must be selected through the product options. The setting die, punching die and hand press are not included.

Frequently Asked Questions

Content last updated: July 23, 2026 — E-Buttons Technical Content Team
