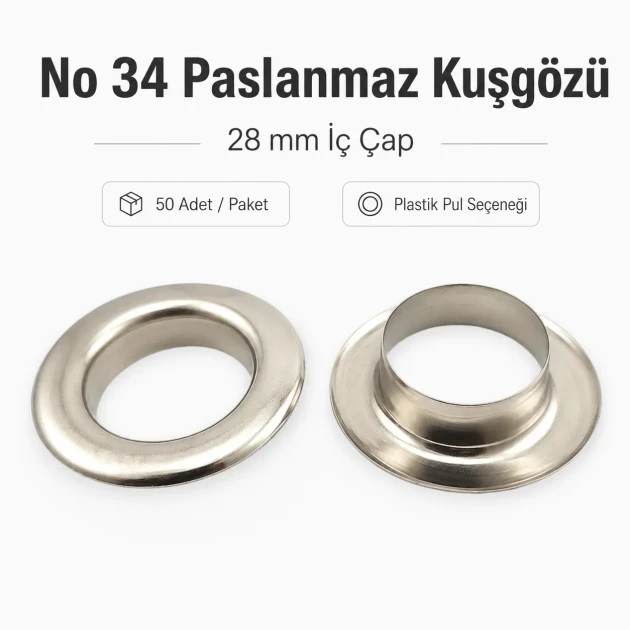

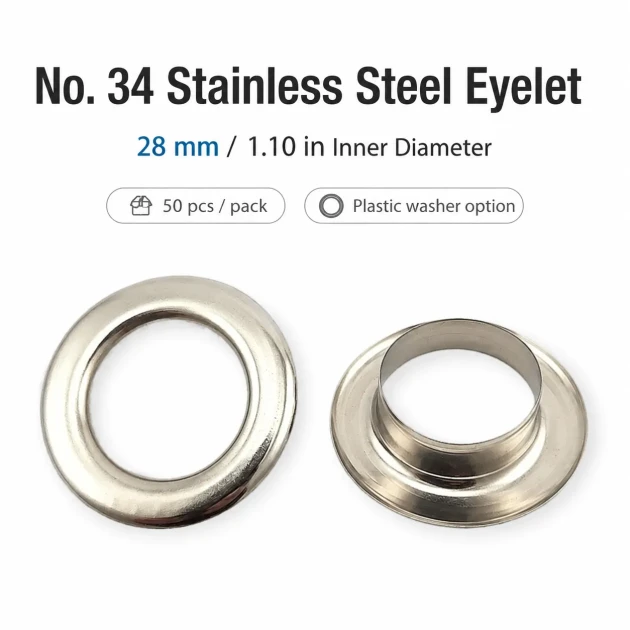

Stainless Steel Eyelet 28 mm / 1.10 in Inner Diameter with Plastic Washer Option, 50 Pieces Pack ER0034PPK

28 mm / 1.10 in Stainless Eyelet for Large Reinforced Openings

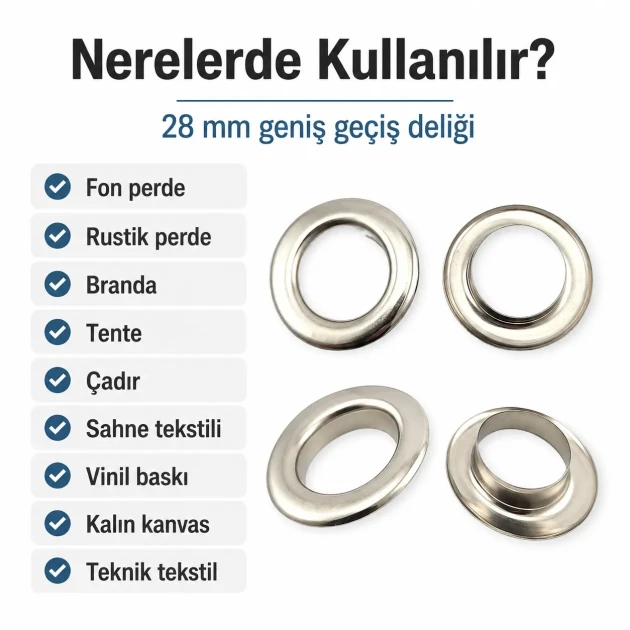

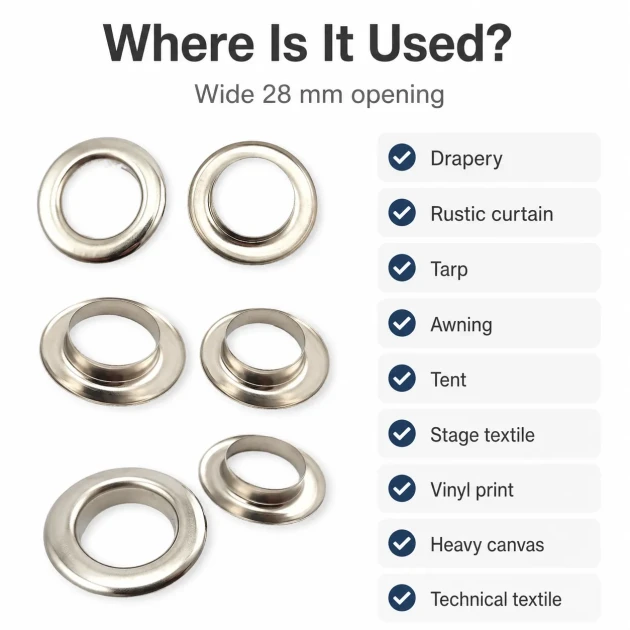

This stainless steel eyelet is designed for large reinforced openings in curtains, drapery, stage curtains, tarps, truck covers, awnings, tents, shade systems, vinyl banners, heavy canvas and technical textiles. It is used where cords, rods, hooks, ropes or tensioning accessories pass through the material.

The large 28 mm / 1.10 in inner diameter makes it suitable for projects that require a wide, clean and stable opening rather than a small garment eyelet.

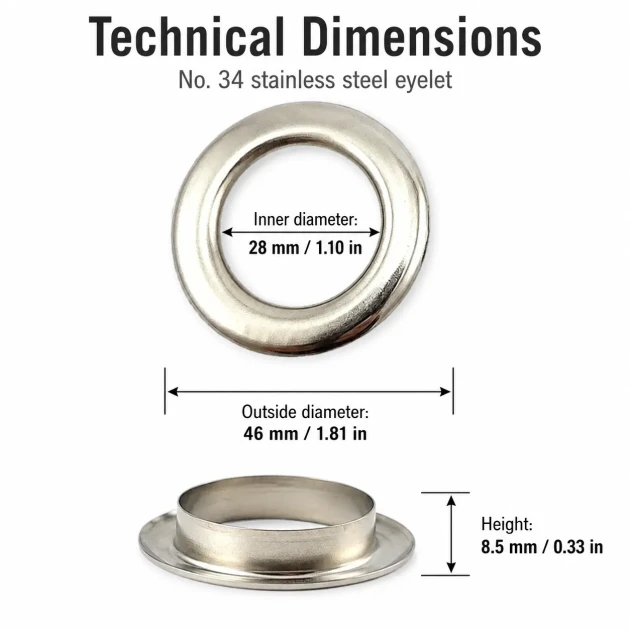

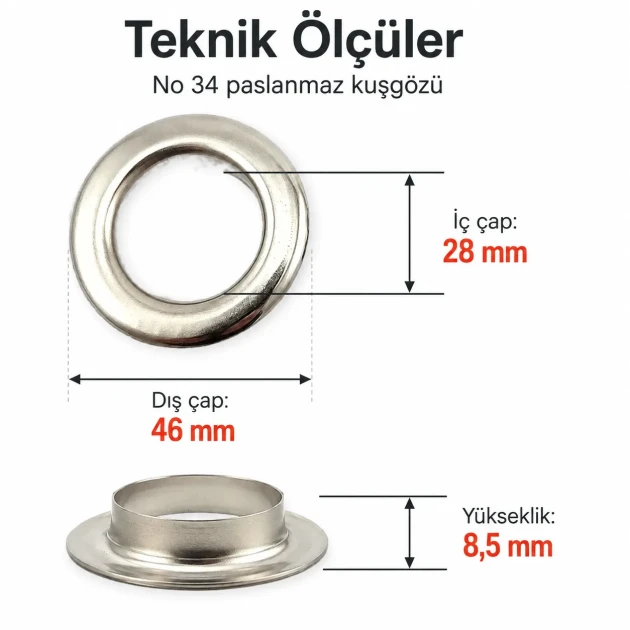

Technical Dimensions

• Eyelet size group: No 34
• Eyelet capsule outside diameter: 46 mm / 1.81 in
• Eyelet capsule inner diameter: 28 mm / 1.10 in
• Eyelet capsule height: 8.5 mm / 0.33 in
• Material: Stainless steel
• Color: Nickel / silver appearance

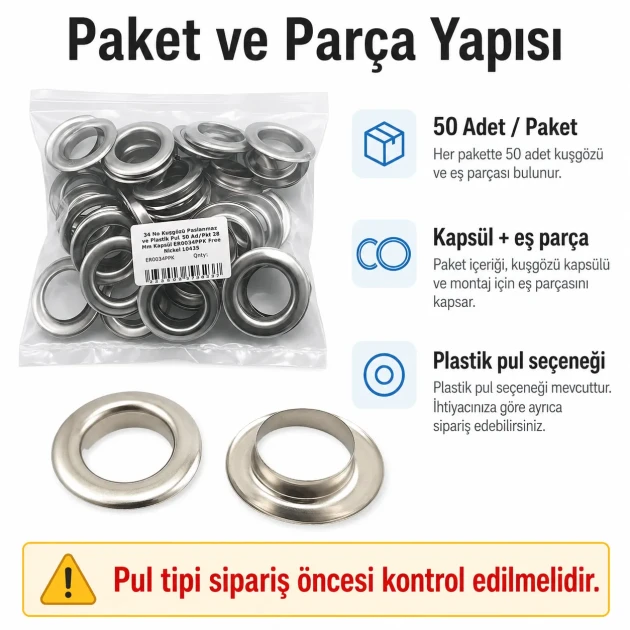

• Package: 50 pieces per pack

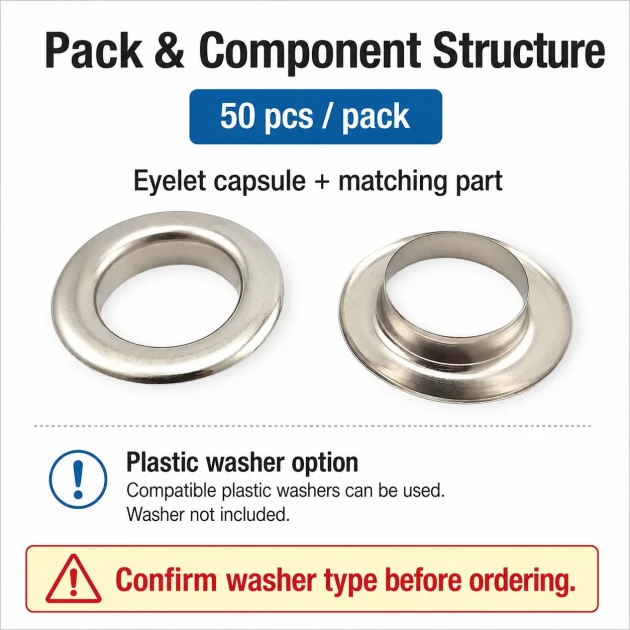

Important: Plastic Washer Option

These eyelet capsules are sold with a plastic washer option. The washer type must be checked before ordering, especially when the final product requires stronger back-side support.

A plastic washer option can be suitable for many curtain, drapery and decorative textile uses. For tarps, awnings, tents, stage textiles and high-tension technical fabrics, washer choice, material thickness, hole size and setting force become critical.

Important: Wrong washer selection, incorrect hole size or weak setting force may cause uneven closing, rotation or pull-out during use.

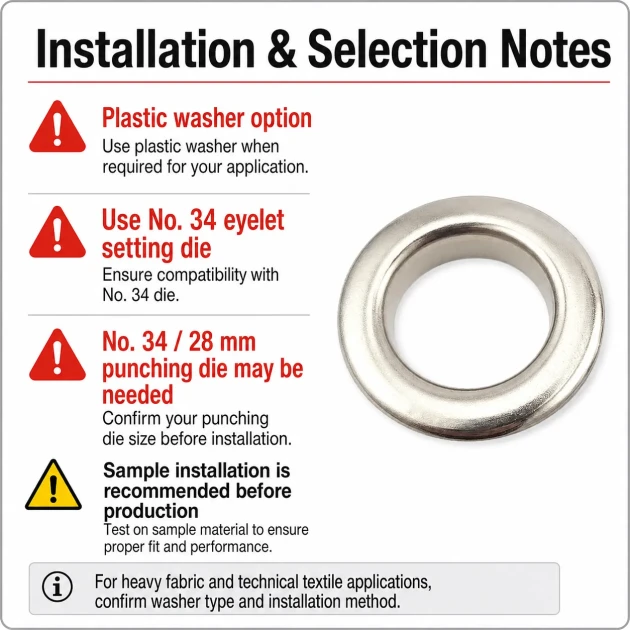

Installation Requires the Correct Die

A compatible No 34 / 28 mm setting die is required for installation. If the fabric hole needs to be prepared before setting, use a matching 28 mm punching die or a suitable hole cutter.

Installation Warning: This is a large eyelet. Thick tarpaulin, dense drapery, multilayer canvas, stiff technical textile or leather may require stronger press force than a basic hand press can provide.

It can be installed with a hand press, lever machine, motorized machine or automatic machine when the correct dies are used. For small quantities or field work, a suitable hand-striking tool may be considered. For repeatable production, press installation with correct die alignment is safer.

Common Questions Before Ordering

What is the inner diameter?

The eyelet capsule inner diameter is 28 mm / 1.10 in.

How many pieces are in one pack?

The product is supplied as 50 pieces per pack.

Is it sold with a plastic washer?

Yes. These eyelet capsules are sold with a plastic washer option. If a metal washer is needed, washer type and application compatibility should be checked before ordering.

Can it be used for curtains and drapery?

Yes. It is suitable for curtains, drapery and stage curtain applications that need a large 28 mm / 1.10 in opening.

Can it be used for tarps and awnings?

Yes. It can be used for tarps, awnings, tents and technical textiles after checking washer type, material thickness, hole size and setting force.

Which die is required?

A compatible No 34 / 28 mm setting die is required. A matching punching die may also be needed for hole preparation.

Can it be installed with a hand press?

It can be installed with a hand press when the correct die and suitable material are used. For thick or hard materials, stronger lever, motorized or professional machines may be required.

Is stainless steel suitable for outdoor use?

Yes, it provides better resistance to standard moisture and rain. Long exposure to sea salt, chlorides or harsh chemicals may still create corrosion risk.
