20 mm / 0.79 in Narrow Rectangular Frame Buckle for Bag Straps AL4157

This 20 mm (0.79 in) narrow rectangular metal frame is intended for bag makers, leather workers, strap manufacturers, and accessory brands that need a compact fixed hardware connection rather than an adjustment buckle. The verified catalog size is 2.20 × 20 × 9 mm. The frame has no tongue, roller, or moving center bar. It functions as a fixed rectangular ring that can guide, anchor, or connect a strap within a finished product. It is suitable for evaluation with 20 mm webbing, leather straps, synthetic leather, textile bands, and similar narrow strap systems. Final compatibility depends on the actual finished strap width, thickness, fold construction, edge treatment, and mounting method, so production approval should be based on a physical sample rather than the nominal width alone.

A compact hardware choice for 20 mm strap systems

In bag and accessory construction, not every piece of hardware needs to adjust or close a strap. Many designs require a simple fixed frame that creates a neat transition point, gives the strap a controlled path, or provides a place to secure a folded end. This component is designed for that role. Its narrow outline keeps the visible metal footprint relatively small, which can be useful on compact purses, crossbody straps, wallets, pouches, handmade leather goods, and minimal bag collections.

The product should be thought of as a fixed rectangular strap ring. If the design requires a pin to engage holes in a belt, a roller pin buckle is the correct hardware family. If the strap must slide through a moving center bar for length adjustment, a slider is the better choice. This frame has neither mechanism, so its value comes from simplicity, compact dimensions, and a clean rectangular connection point.

Verified dimensions

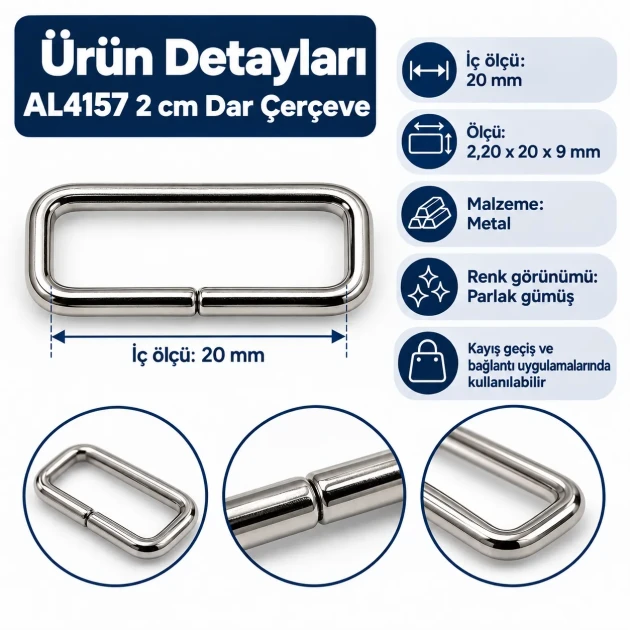

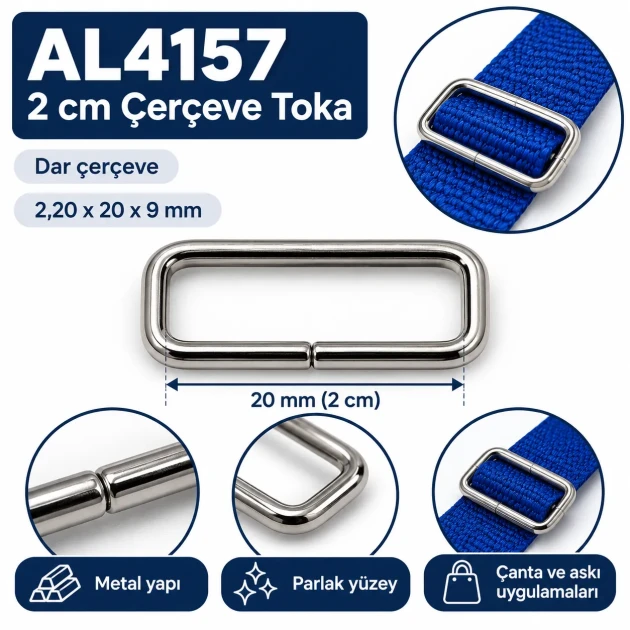

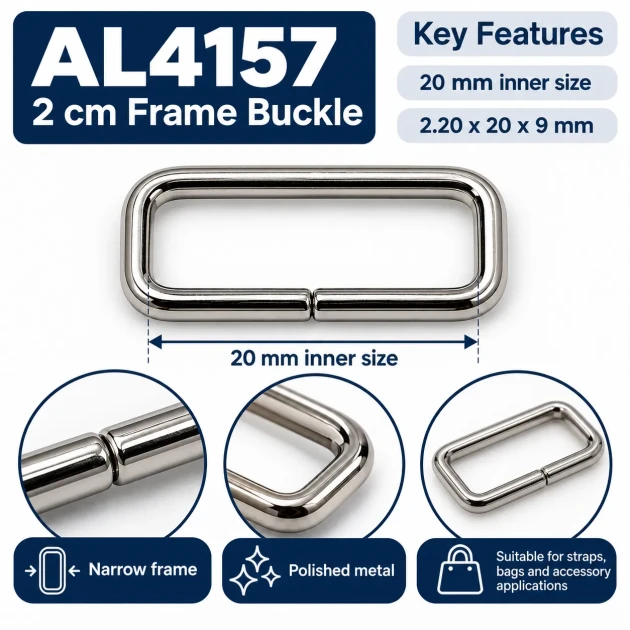

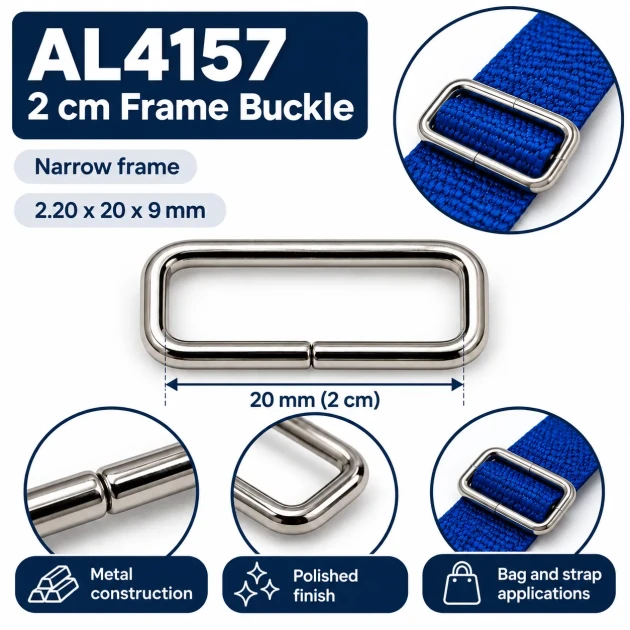

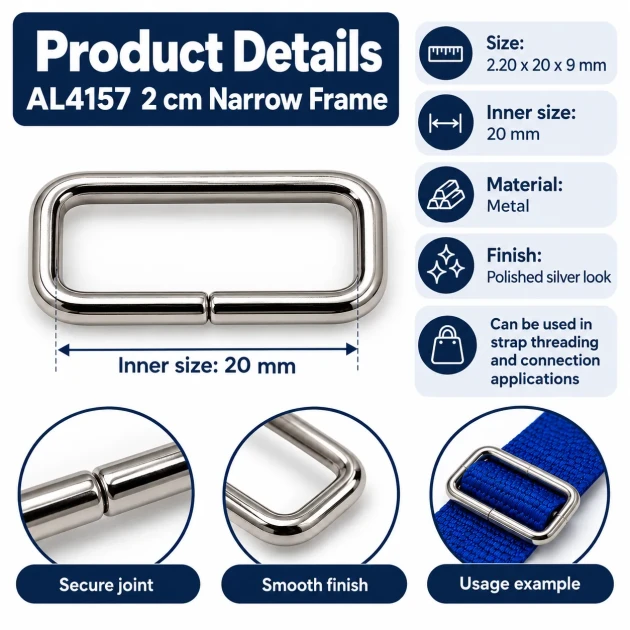

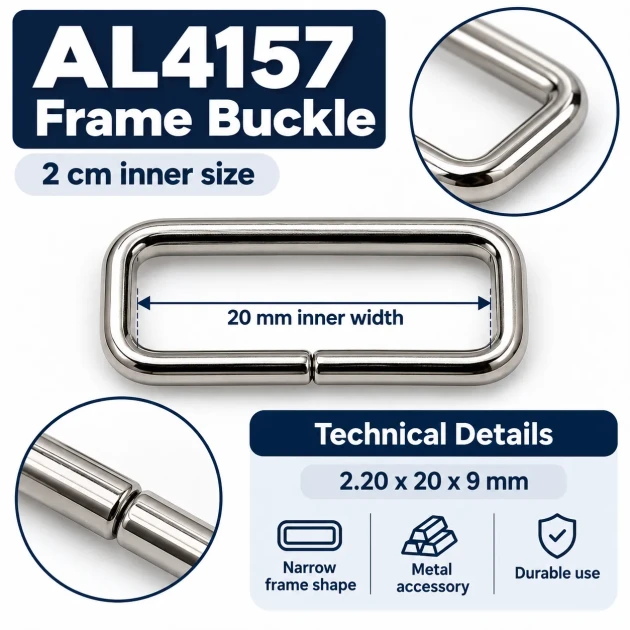

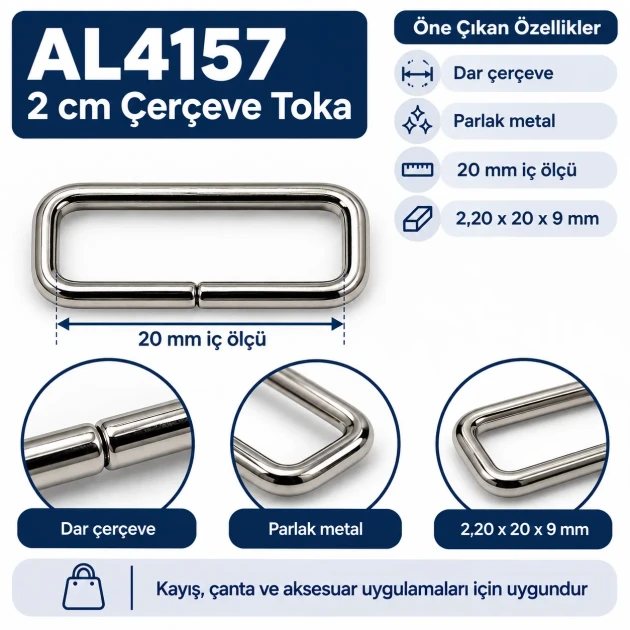

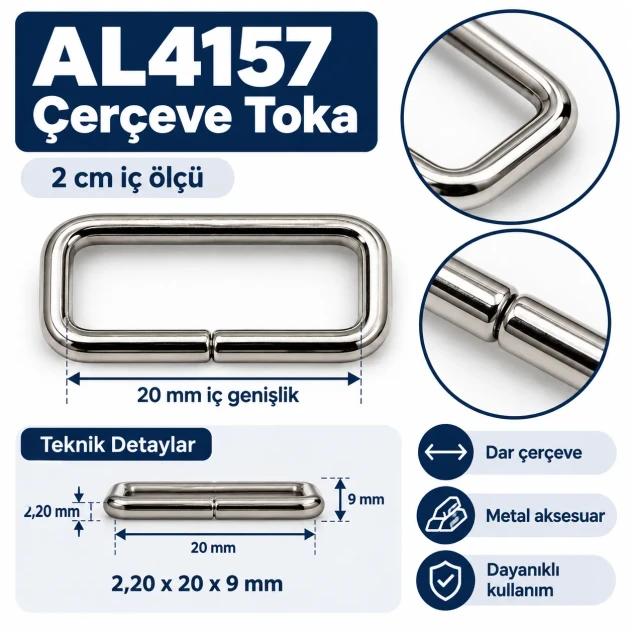

The artwork supplied for the product confirms 2.20 × 20 × 9 mm. The 20 mm measurement identifies the nominal strap passage and corresponds to approximately 0.79 in. The 2.20 mm and 9 mm values describe the physical profile of the frame. These measurements should be entered into a technical specification or bill of materials so the approved hardware can be identified consistently in future production.

Why actual strap size matters

“20 mm” is a nominal hardware class, not a guarantee that every strap sold as 20 mm will behave the same way. Woven webbing can vary because of weave density, edge construction, coating, and manufacturing tolerance. Leather can become noticeably thicker after lining, edge paint, reinforcement, or folding. Synthetic leather may include backing fabrics or laminations that affect the final cross section.

The best practice is to measure the finished section that will actually pass through the frame. If the strap wraps around the frame and doubles back, the doubled thickness should be evaluated. If stitching sits close to the fold, include the seam build-up. A strap that fits easily as a single layer can become too tight in the completed construction.

Bag strap applications

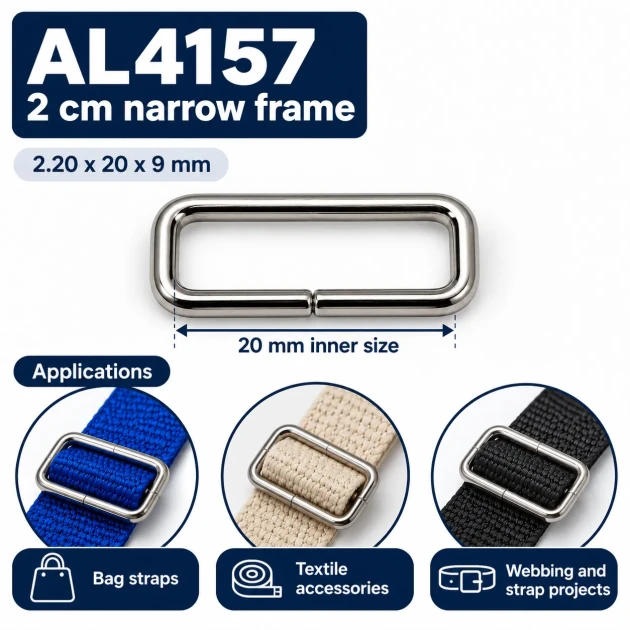

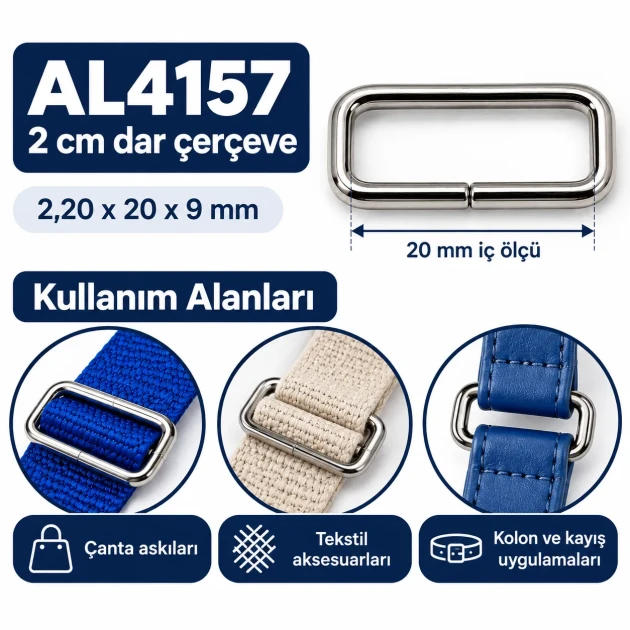

This frame can be incorporated into shoulder straps, crossbody straps, purse handles, wallet straps, pouch attachments, and decorative webbing systems. One common construction is to feed the strap through the frame, fold the end back, and secure the fold with stitching or a suitable rivet. In that configuration, the frame serves as a fixed connection point within the strap assembly.

The strength of the final product does not come from the frame alone. Strap material, fold length, stitching, rivet quality, hole placement, and overall bag construction all contribute to performance. No verified load rating is available for the frame, so a finished prototype should be tested when the application carries meaningful weight.

Leather goods and small-batch production

Leather workers should pay close attention to thickness and fold behavior. A 20 mm vegetable-tanned strap and a 20 mm soft chrome-tanned strap may interact with the same frame very differently. Lining, skiving, edge finishing, and adhesive layers can change the effective thickness. If the strap is folded around the frame, the bend radius should look natural and should not force the leather into an excessively sharp crease.

For workshop production, create a complete test end using the same leather, lining, adhesive, edge finish, rivet, and tooling planned for the finished product. This reveals issues that cannot be seen by comparing the frame with a flat raw strip.

Webbing and textile strap use

For nylon, polyester, cotton, or blended webbing, nominal width is only one part of the fit. Stiffness and weave density affect how the webbing turns around a metal frame. A dense coated webbing may need more room than a soft woven tape of the same width. If the strap is folded and sewn, test the sewn stack because the seam can add bulk close to the hardware.

In repeat production, it is useful to check several points along a new roll of webbing. Small width changes may be insignificant in open hardware but noticeable in a narrow frame. A quick incoming measurement can prevent assembly problems later on the sewing line.

Using the frame with a roller pin buckle

A 20 mm roller pin buckle can be used in the same strap family when the design needs closure or adjustment. The two pieces do not replace one another. The roller pin buckle uses a tongue and roller to work with a strap, while this part remains a fixed rectangular connection point. A bag strap or leather accessory can therefore use both components in different locations.

When they are used together, confirm that the same strap works comfortably with both hardware pieces. A strap that is acceptable in the fixed frame may behave differently around the roller and tongue assembly, especially if it is thick or stiff.

Choosing a finish

The available finish names in the product system are Nickel, Black Nickel, Gun Metal, Antique Brass, and Gold. Nickel is currently stocked. The remaining options currently show zero inventory. For a coordinated product, finish selection should be made together with the rest of the bag hardware, such as rivets, D-rings, O-rings, chains, zipper pulls, hooks, and buckles.

Metal finishes are reflective, so online photos can look different depending on studio lighting, camera settings, and monitor calibration. Production lots can also show slight visual variation. If a collection requires a close finish match, compare physical samples before placing a large order.

Nickel

Nickel offers a bright, neutral metal look that works with many common bag colors and materials. It can pair well with black, gray, white, navy, tan, and natural leather tones. Because it is the currently stocked finish, it may also be the simplest choice for projects that need immediate availability. Large orders should still be checked against live inventory before production is scheduled.

Black Nickel versus Gun Metal

Black Nickel and Gun Metal are separate finish options and should not be treated as identical. Both fall into the darker metal family, but the visual undertone and surface character can differ. If other dark hardware is already approved for the product, compare the frame physically with those pieces to determine the closest match.

Antique Brass versus Gold

Antique Brass is a warm, aged-looking finish that can complement vintage, heritage, or rustic leather goods. Gold produces a brighter decorative appearance. They serve different visual directions and should not be substituted without approval. When several metal parts appear close together on the same bag, small finish differences become easier to notice.

Mounting with stitching

For textile and some leather constructions, the strap can wrap around the frame and be secured with stitching. The stitch box or seam pattern should be selected based on strap material and expected use. The seam should not be positioned so close to the metal that the fold cannot move naturally. Reinforcement can be added where appropriate, but any added layer should be included in the thickness check.

Mounting with rivets

Rivets are another possible fastening method for a folded strap end. Correct rivet selection requires more than cap diameter. Post length must suit the total stack thickness, and the setting die must match the rivet system. A rivet that is too short may fail to engage properly; one that is too long may set poorly or leave an unstable joint.

Seven-millimeter rivet options can be evaluated as companion hardware for this type of strap connection. However, the 7 mm designation alone does not guarantee compatibility. Review cap size, post length, material, finish, and setting method with the actual strap sample.

Prototype workflow

Start with production-intent material. Cut the strap to the final width and complete any lining, edge paint, lamination, or stitching that will be present. Feed it through the frame and form the intended fold. Temporarily secure the fold and inspect alignment, clearance, and visual proportion. Then install the planned rivet or stitch pattern and test the completed section by hand.

This workflow is especially useful because hardware problems often come from the interaction between multiple small tolerances. A few tenths of a millimeter in strap width, an extra lining layer, or a thick seam can change how the assembly behaves.

What to inspect on a sample

Check whether the strap enters the frame without forcing. Make sure it does not twist unexpectedly. Inspect the fold for cracking or excessive compression. Confirm that the frame sits square to the strap. If a rivet is used, inspect both sides of the set and check that the folded end does not rotate excessively. If the hardware finish is part of a coordinated collection, place all approved metal components next to one another under neutral lighting.

Common purchasing mistakes

A common mistake is ordering by strap width alone without checking thickness. Another is confusing a fixed frame with an adjuster. A third is selecting finish from a product photo without comparing companion hardware. In riveted assemblies, overlooking post length is another frequent problem. Finally, ordering bulk quantity before approving a real prototype can turn a small measurement error into a costly production issue.

Planning bulk orders

When quantity pricing is used for 1,000-piece or 2,500-piece orders, technical approval should come before price optimization. Confirm the strap, finish, mounting method, and complete prototype first. Once the design is approved, the same hardware specification can be recorded and reused for repeat orders.

Technical documentation

A useful bill-of-materials entry should state more than “20 mm ring.” Include the hardware type, nominal 20 mm passage, verified 2.20 × 20 × 9 mm catalog dimensions, finish, and the approved fastening method. If a specific leather, webbing, or rivet is part of the construction, record those references as well. Better documentation reduces substitution errors during purchasing and manufacturing.

Incoming quality checks

For production lots, inspection can focus on shape, finish consistency, obvious deformation, visible surface issues, and basic dimensional fit with the approved strap. If several plated parts are used in the same product, compare a sample set together. When fit is critical, periodically test the actual strap through the frame rather than relying only on a ruler measurement.

Storage and handling

Keep plated metal hardware dry, clean, and protected from aggressive chemicals. Adhesive fumes, moisture, abrasive contact, and careless bulk handling can affect surface appearance. Packaging that reduces metal-to-metal rubbing can help limit scratches. If cleaning is needed, avoid unverified harsh chemicals that may damage the finish.

Suitable project categories

This hardware may be considered for handbags, wallets, pouches, small leather goods, textile accessories, craft projects, decorative straps, and similar consumer products. No verified life-safety certification or load standard has been provided. Do not assume suitability for climbing gear, fall-protection systems, vehicle restraints, child-safety restraints, personal protective equipment, or other critical applications without appropriate engineering validation.

Why a sample matters before volume production

A frame can look correct in a technical drawing and still feel wrong with the actual strap. Material flexibility, coating thickness, seam build-up, and folding behavior are difficult to judge from dimensions alone. A sample confirms not only fit but also appearance, assembly speed, and compatibility with the chosen rivet or stitching process. For production buyers, this small step can prevent large-scale rework.

Frequently asked questions

Is this for 3/4 inch webbing?

The verified metric passage is 20 mm, approximately 0.79 in. Since 3/4 in is about 19.05 mm, some 3/4 in webbing may fit with additional clearance, but actual width and thickness should be tested before production.

Is it an adjustable buckle?

No. It is a fixed rectangular frame with no moving adjustment mechanism.

What size is the frame?

The verified catalog dimensions are 2.20 × 20 × 9 mm, with a nominal 20 mm strap passage.

Which finish can I order from current stock?

Nickel is the currently stocked finish in the live product record. Black Nickel, Gun Metal, Antique Brass, and Gold currently show zero stock.

Can I use it for leather bag straps?

Yes, it can be evaluated for 20 mm leather straps, but the finished thickness and fold construction must be tested.

Can I secure the strap with a rivet?

Yes, if the rivet post length, cap size, material, and setting system are suitable for the actual strap stack.

Are 7 mm rivets automatically compatible?

No. Seven millimeters describes only part of the rivet specification. Post length and material thickness still need to be matched.

Can I pair it with a 20 mm roller pin buckle?

Yes. They can serve different functions within the same 20 mm strap system, provided the strap is tested with both components.

What is the rated strength?

No verified load rating is available. Strength depends on the complete construction, including strap, stitching or rivets, and the finished product design.

Should I order bulk before making a sample?

A production-intent sample is strongly recommended before a large order so fit, finish, and mounting can be approved.

For bag brands and production teams

This frame is most useful when the design calls for compact, fixed 20 mm hardware with a clean rectangular shape. It can simplify a strap layout, provide a neat attachment point, and visually coordinate with other metal components. For repeat manufacturing, the greatest value comes from defining the hardware precisely and using the same approved strap and mounting specification from one run to the next.

Companion products

A 20 mm roller pin buckle can be considered when the same strap system also needs adjustment or closure. Seven-millimeter single-cap or double-cap rivet options can be evaluated when a folded strap end needs mechanical fastening. Each companion component should be selected from its own dimensions and construction requirements rather than assumed compatible by category name alone.

Final selection checklist

• Measure the finished strap width.
• Check the total thickness at the folded section.
• Confirm the strap moves through the 20 mm passage as intended.
• Verify that a fixed frame, not an adjuster, is the correct hardware type.
• Approve the finish next to all other metal parts.
• Select stitching or rivet construction using the actual material stack.
• Build and test a complete prototype.
• Record the approved specification before bulk purchasing.
