4 cm Swivel Snap Hook – Spring Gate Bag Strap Clip SB 16909

Explore dimensions, strap compatibility, swivel movement and practical selection advice for the SB 16909 spring-gate bag strap hook.

Overview and intended use

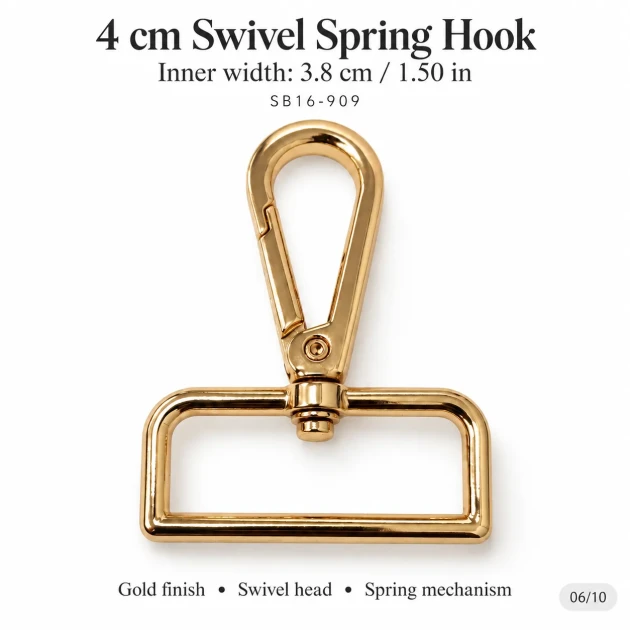

SB 16909 is a spring-gate swivel snap hook designed for removable bag strap connections. The upper part opens to attach to a suitable ring; the rectangular lower loop accepts an appropriately sized strap end. A rotating joint sits between the two sections. This arrangement can be considered for shoulder bags, crossbody bags, totes and other accessories using detachable straps. The hook must be matched to the construction and intended use of the finished item.

A connector should never be selected from appearance alone. Compare the actual strap width, its folded thickness, the attached ring geometry and the space surrounding the gate. A sample assembled with the real bag and strap is the most reliable way to assess comfort, orientation and clearance before production.

Nominal 4 cm designation and actual opening

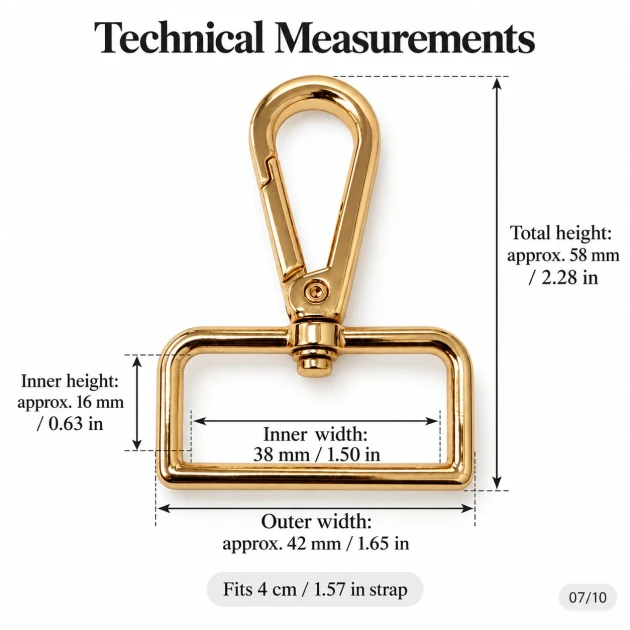

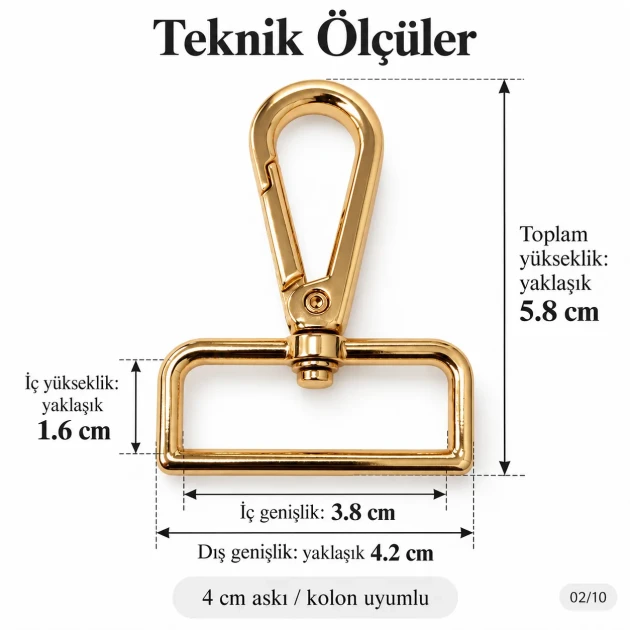

The advertised 4 cm size is a nominal product classification. The reference drawing identifies the clear inner strap opening as approximately 38 mm (1.50 inches). These are different measurements. A nominally 40 mm (1.57 inches) wide webbing may be difficult to thread neatly through a 38 mm opening, particularly when it has thick edges or a folded seam.

The same drawing indicates an approximate 16 mm (0.63 inches) inner loop height, 42 mm (1.65 inches) exterior loop width and 58 mm (2.28 inches) overall hook height. No production tolerances were supplied. For fit-critical patterns or tooling, check all dimensions on a real production sample rather than designing solely from the reference illustration.

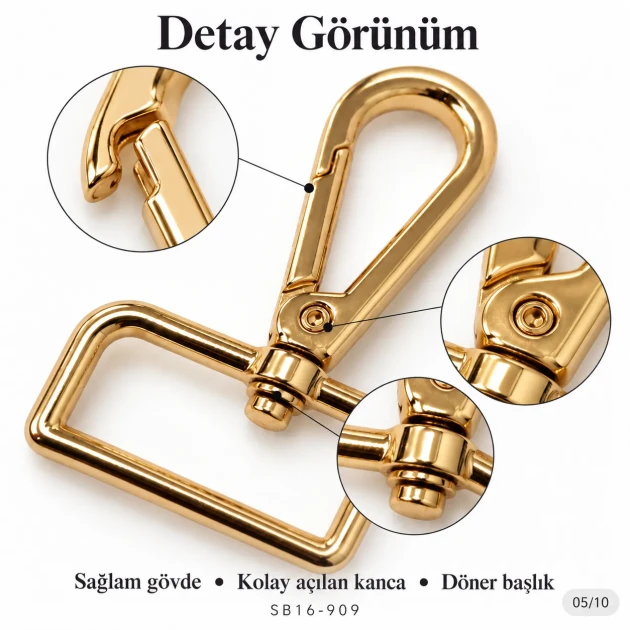

Spring-operated gate

The movable gate of this snap hook opens when pressed and returns towards its closed position through the spring mechanism. This allows the hook to be attached to and removed from a compatible bag ring without permanently opening the ring itself. On the finished assembly, check that the gate closes fully after every operation.

The companion ring must allow enough clearance for the gate tip and hook throat. Examine whether thick seams, leather layers or nearby bag components restrict the opening motion. A snapped-closed appearance alone is not a substitute for checking the actual movement and connection under the conditions expected in use.

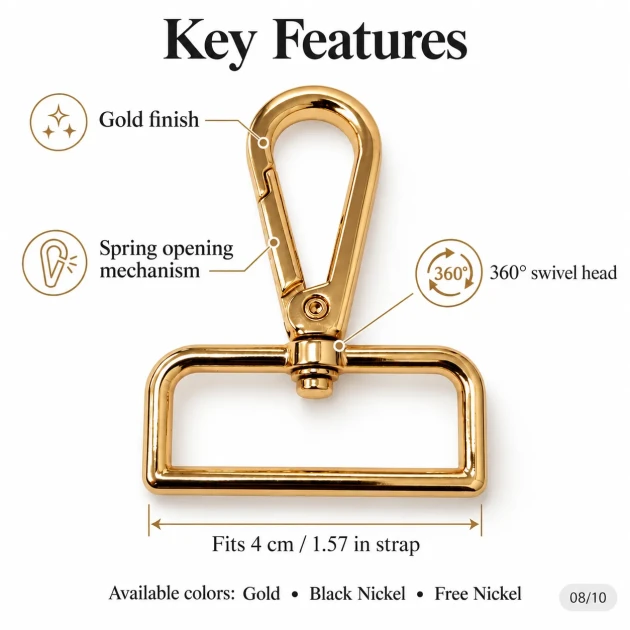

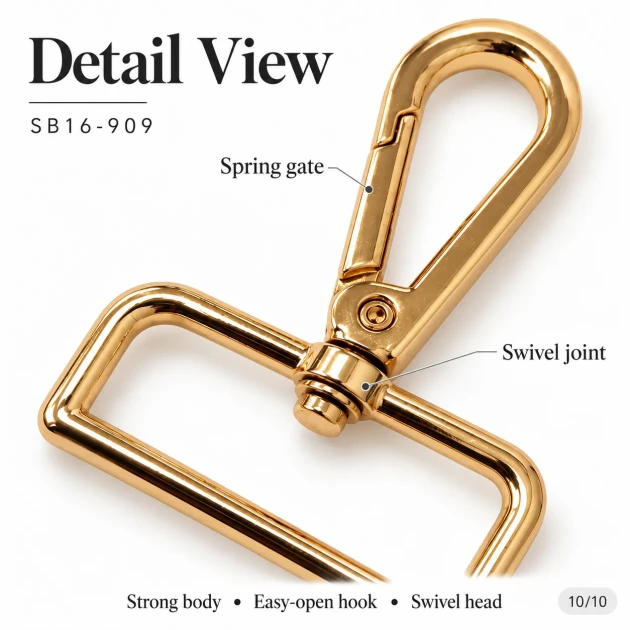

Rotating swivel joint

The swivel joint allows the upper hook and lower rectangular strap loop to change their relative orientation. The reference material describes a 360-degree rotating connection. On a shoulder or crossbody bag, this may help accommodate changes of direction as the wearer moves and may reduce unwanted strap twisting.

The movement should remain unobstructed after the strap has been sewn into the loop. Stiff webbing, bulky folded material and oversized stitches near the joint can limit articulation. The rotation feature does not establish a tested fatigue rating, allowable load or guaranteed service life; those properties require separate verification.

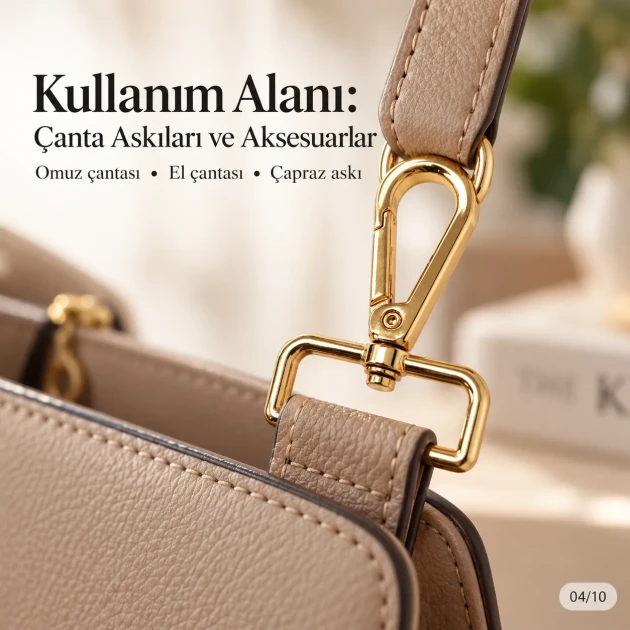

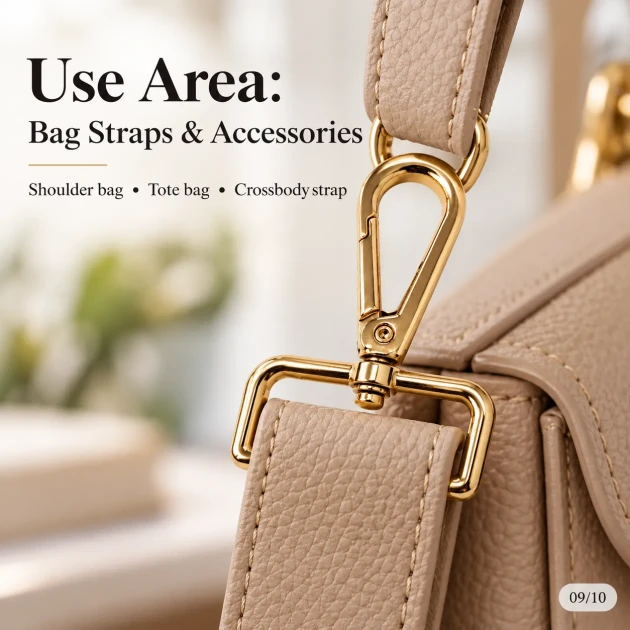

Shoulder bag and crossbody applications

For shoulder bags, evaluate where the attachment ring is fixed to the bag body and how far the hardware hangs below that point. The approximate overall length of 58 mm can influence both appearance and strap position. A removable strap should also be easy to reach and detach without forcing the spring gate.

For crossbody bags, consider how the ring changes direction as the bag moves across the body. A hook that fits an unloaded ring may still be uncomfortable to operate when the bag is full or the attachment is crowded by fabric. Produce and evaluate a sample with the actual strap and ring arrangement.

Tote bags, handbags and removable handles

The snap hook can be considered for tote bags and handbags designed with detachable carrying straps or handles. A rectangular strap loop helps connect a sewn webbing or leather-look end to the rotating hook component. Its suitability depends on the selected materials and the finishing method used on the strap end.

On smaller handbags the visible 58 mm overall height may be an important design proportion. Match the hardware scale to the bag silhouette and other fittings. Consider both functional clearance and the visual relationship with rings, zippers and adjustment hardware.

Current color options and finish selection

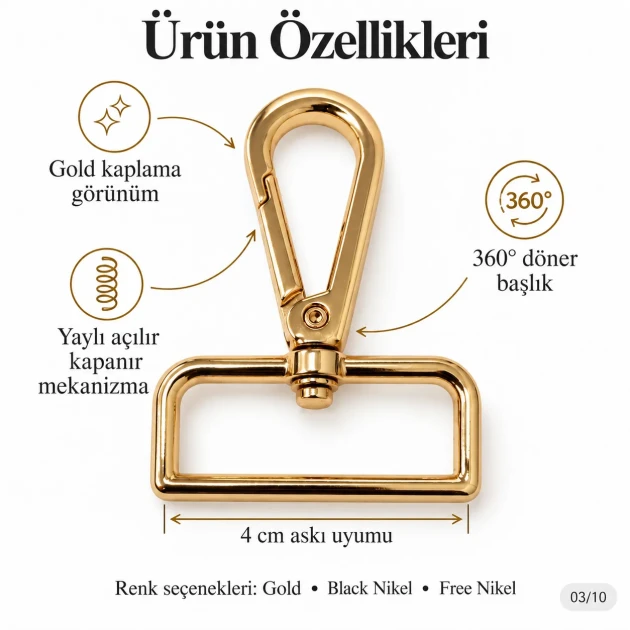

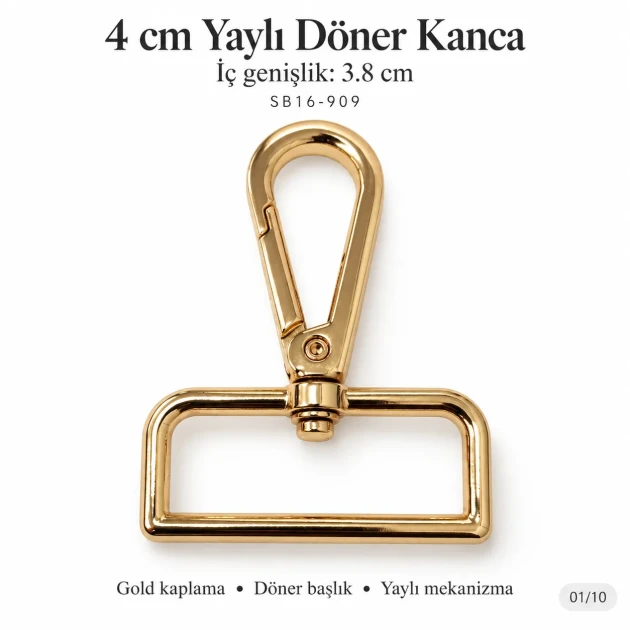

The current product record lists Gold, Nickel and Black Nickel color options. The supplied product photos illustrate a gold-colored example. The finish names describe appearance and do not by themselves certify the plating chemistry, coating thickness or resistance to environmental exposure.

Photographic lighting, display calibration and variations between manufacturing batches can change perceived color. Where a project demands consistent matching among hooks, D-rings, buckles and zipper sliders, compare physical samples in the same lighting conditions before approving a production batch.

Webbing fit and sewn strap ends

The lower rectangular frame provides the connection point for webbing or a similarly prepared strap. The actual clear width is approximately 38 mm (1.50 inches), so the finished width of the strap matters more than the nominal width printed on its label. Binding tape, woven edges or additional stitching may increase the effective width.

Before sewing, thread the real strap through the frame and check whether it lies flat rather than bunching or folding unintentionally. The seam should secure the strap while leaving enough space for the lower frame and rotating joint to move. Recheck the fit after the sewing operation because the folded end can change its behavior.

Leather and synthetic leather considerations

Leather and synthetic leather straps can be folded, bonded or stitched around a metal connector. These operations often increase local thickness. Even when the flat strip fits the 38 mm opening, the completed strap end may be too bulky to sit neatly against the frame.

A preproduction sample helps establish fold allowance, stitch placement and the position of the joint relative to the material. Avoid placing rigid seams immediately against the swivel area. The final assembly should not create sharp bends that are likely to mark or damage the strap material during movement.

Compatibility with D-rings and other anchors

A snap hook connects to a mating ring or anchor on the bag. A D-ring, O-ring or similar element may be suitable only after checking its inner dimensions, metal section thickness and orientation relative to the spring gate. Products sold under similar nominal size labels may have different usable clearances.

Check that the hook mouth can pass over the anchor and the gate can return completely to its resting position. Then move the attached strap through the angles it will encounter in use. Hardware compatibility is best verified with both parts physically present rather than inferred from product titles.

Dimensions, identification and weight

Product model and intended SKU are SB 16909. The nominal size is 4 cm; reference inner width is approximately 38 mm (1.50 in), inner height approximately 16 mm (0.63 in), external lower-loop width approximately 42 mm (1.65 in), and overall height approximately 58 mm (2.28 in). Declared individual piece weight is 16 g (approximately 0.56 oz).

The measurements come from the supplied technical references and are presented as approximate. A verified alloy specification and dimensional tolerance sheet have not been supplied. For a purchase order involving exact fit, request and approve a physical sample and record the measurement points used.

Installation checklist

Measure the selected strap in its finished condition, including edges and any reinforcing layers. Feed it through the bottom loop and examine its alignment. Establish the sewing line while keeping the rotating joint free. Before attaching the other end to the bag body, confirm that the mating ring can be engaged and disengaged conveniently.

After stitching, repeat the spring-gate and swivel checks. Inspect the contact between metal and material, looking for binding or excessive folding. If the strap cannot lie flat, evaluate the geometry again rather than forcing an oversized webbing through the opening.

Incoming quality control

Inspect received units for visible surface defects, sharp burrs, bent frames and irregular gate motion. Verify that the spring returns the gate as intended and that the swivel joint moves without obvious obstruction. For larger production batches, establish a repeatable sample-inspection procedure based on the needs of the finished bag.

No certified safe working load, corrosion-resistance class or breaking-strength result has been provided for this specific model. The hook should not be presented as climbing hardware, protective equipment or another safety-critical connector. Load-bearing performance must be determined through appropriate finished-product testing.

Production planning and identification

Retaining an approved sample identified as SB 16909 helps purchasing and production teams distinguish this design from similar swivel hooks. Record the selected finish, companion ring, finished strap width and stitching arrangement on the specification sheet. Reassess fit whenever any of these components change.

Before a production run, review the alignment and ease of opening of the assembled connection, not just the catalog photograph. Substituting a slightly different ring or webbing can change the way the gate operates, even if both pieces look similar on a supplier list.

Quantity purchasing

The product is configured with quantity-price levels starting at 250, 1,000 and 2,000 pieces in addition to its regular unit price. Pricing displayed to buyers is governed by the store's currency and customer-group settings. Review the selected color, the basket quantity and available inventory before confirming the order.

For coordinated projects involving multiple hardware components, request or inspect physical samples so that dimensions and colors match. Published content describes selection and handling rather than promising fixed prices or guaranteed delivery for a particular production batch.

Practical care

For routine handling, a soft dry cloth can be a sensible first choice to remove light marks from decorative hardware. Avoid assuming compatibility with abrasive cleaners or strong chemicals where a finish specification has not been verified. Check for debris around the spring-gate opening and swivel joint if the mechanism becomes difficult to operate.

If the hardware becomes visibly deformed or the gate stops closing completely, reassess the component before further use. Forcing the hook onto an oversized ring or bending the moving parts falls outside normal attachment and removal.

Frequently asked questions

Is the clear opening 4 cm? No. The nominal size is 4 cm but the illustrated inner width is 38 mm / 1.50 in. Does the connector swivel? Yes, the reference describes a 360-degree swivel joint. Does it have a spring gate? Yes. Which colors are currently listed? Gold, Nickel and Black Nickel.

Will 40 mm / 1.57 in webbing fit? It depends on the finished width, thickness and edges; test an actual sample. What does one piece weigh? The declared weight is 16 g / about 0.56 oz. Is the alloy verified? No specific alloy specification has been confirmed. What load will it support? A validated load-rating report has not been supplied.
