🌍 Recommendation for International Use

In countries like the USA and the UK that use inch-based systems, or when working with imported equipment, M6 metric threads are more commonly used. For compatibility with international machinery and standards, it is recommended to choose M6 or its closest inch equivalent (1/4"-20 UNC).

📌 Recommendation for Turkey

In Turkey, M8 metric threads are more commonly used in manufacturing and assembly. Choosing M8 provides easier sourcing and compatibility with locally available machines and tools.

he approximate inch (UNC) equivalents of M6 and M8 metric thread sizes help you compare diameters when working on international projects or with imported equipment. However, since the thread pitches and standards differ, metric and inch threads are not interchangeable — they only provide approximate diameter equivalence.

🔹 M6 (~6 mm diameter)
M6 outer diameter: 6 mm → 6 / 25.4 ≈ 0.236 inch
Closest UNC size: 1/4"-20 UNC
1/4" outer diameter ≈ 0.250 inch → slightly larger than M6.
20 TPI (threads per inch) → Thread pitch ≈ 1.27 mm.

🔹 M8 (~8 mm diameter)
M8 outer diameter: 8 mm → 8 / 25.4 ≈ 0.315 inch
Closest UNC size: 5/16"-18 UNC
5/16" outer diameter ≈ 0.3125 inch → very close to M8.
18 TPI → Thread pitch ≈ 1.41 mm.

🔎 Thread Pitch Comparison (approximate)
M6 standard pitch → 1.0 mm → 25.4 / 1.0 = 25.4 TPI equivalent.
M8 standard pitch → 1.25 mm → 25.4 / 1.25 = 20.32 TPI equivalent.

As you can see, while 1/4"-20 and 5/16"-18 UNC sizes are similar in diameter to M6 and M8 respectively, the thread pitches (TPI) and profiles differ. Therefore, they are not mechanically compatible — they only offer an approximate comparison.

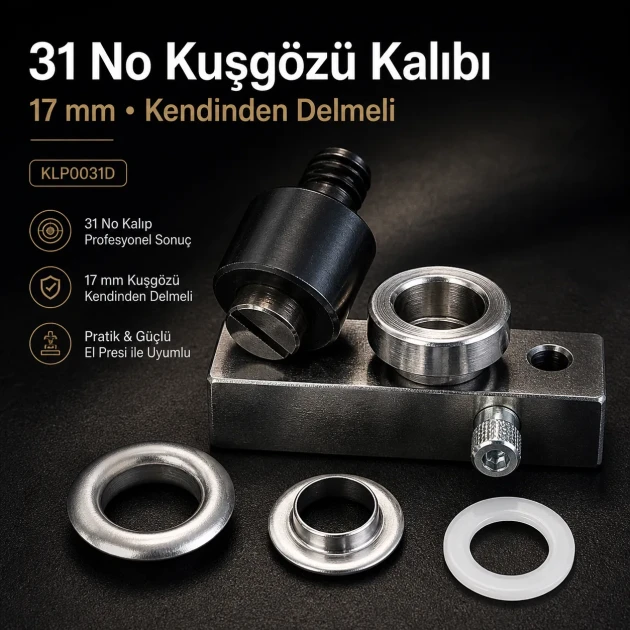

No 31 Eyelet Setting Die - Self-Piercing 17 mm KLP0031D

Eyelet Die Self-Drilling, 17 mm - 11/16" Eyelet Setting Die KLP0031D

A practical and professional mounting die set for No. 31 eyelets with a 17 mm / approx. 11/16 in inner diameter. Its self-piercing design helps speed up the installation process and supports clean eyelet setting with compatible hand presses or impact press systems.

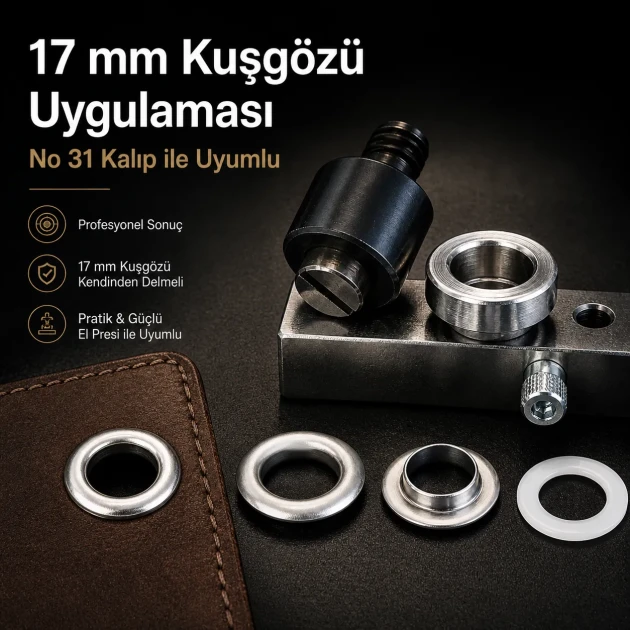

  • Compatible with No. 31 eyelets with a 17 mm / approx. 11/16 in inner diameter.
  • Self-piercing structure helps speed up the installation process.

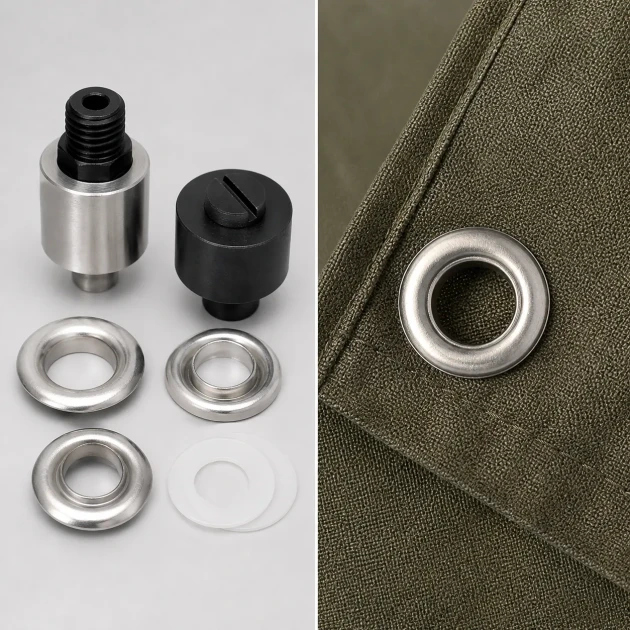

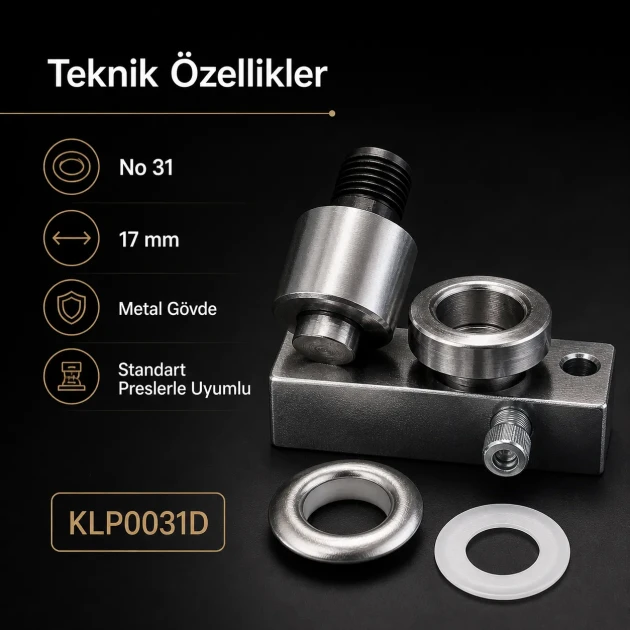

  • Includes 1 upper die and 1 lower die.

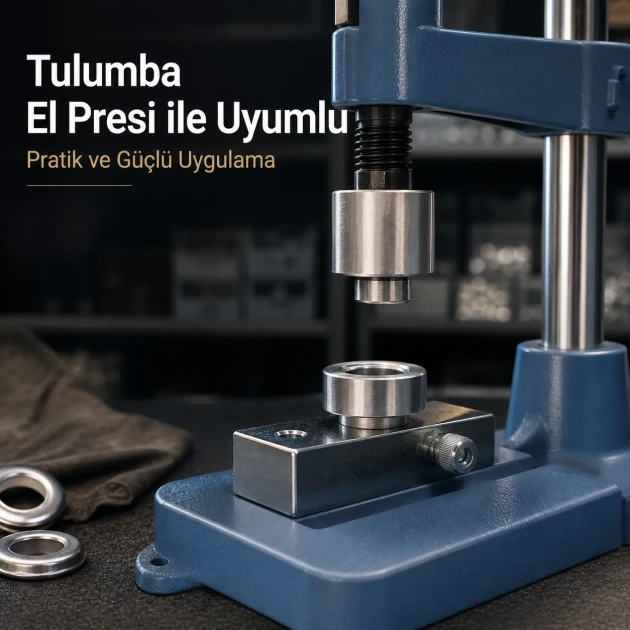

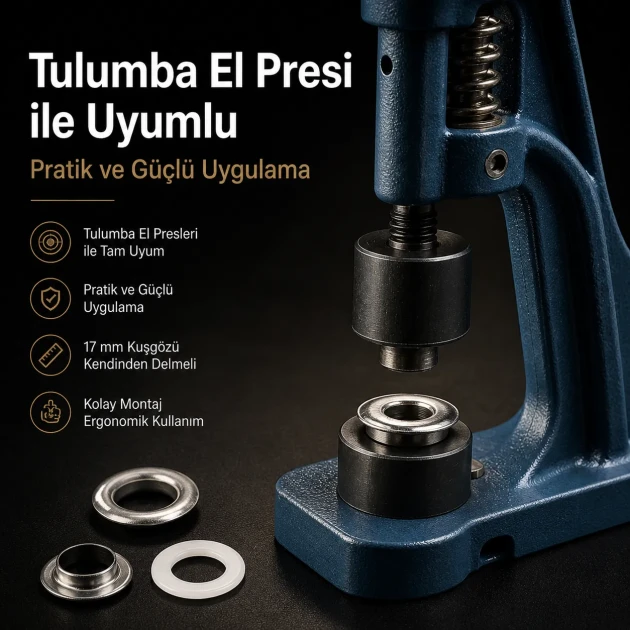

  • Suitable for standard hand presses and compatible impact press systems.

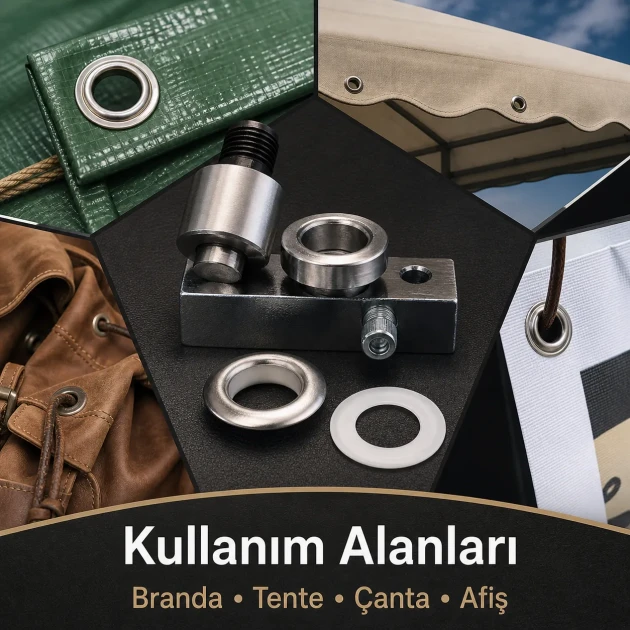

  • Ideal for tarpaulin, awning fabric, banners, bags and technical textile applications.
  • Designed to support clean, strong and professional eyelet installation.
12.56 USD
16.74 USD
Ex Tax: 10.47 USD
  • Stock Quantity: 999
  • Model: KLP0031D

Available Options

Product Reviews

No reviews yet. Be the first to write a review!

Q&A

Total Questions 0 Answered 0 Unanswered 0

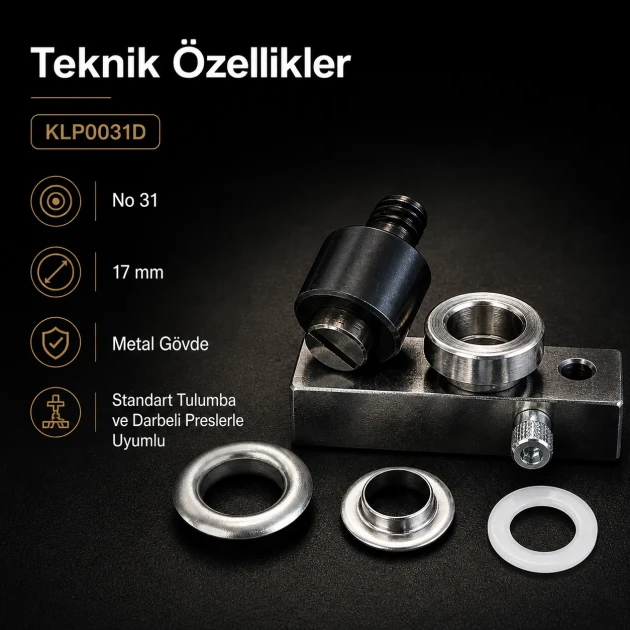

Product Information
Product Type Self-Piercing Eyelet Mounting Die Set
SIZE / DIMENSION
Size mm / Ligne 17 mm - 11/16"
Size / Number 17 mm / approx. 0.67 in / close to 11/16 in
MATERIAL
Material Metal / Iron
Aplication
Application Type Self-Piercing
Mounting Method Standard Hand Presses and Suitable Impact Press Systems
Usage Area
Most Frequently Used Area Tarpaulin, Awning Fabric, Banners, Bags, Covers, Technical Textiles

No. 31 Self-Piercing Eyelet Die Set - 17 mm / 11/16 in KLP0031D

The No. 31 self-piercing eyelet die set for 17 mm / approx. 11/16 in eyelets is designed for users who need a practical, clean and professional solution for installing large eyelets. It is suitable for No. 31 eyelet applications and helps achieve a neat installation result on compatible materials such as tarpaulin, awning fabric, bags, banners, covers, decorative textile panels and similar technical textile projects.

This product includes 1 upper die and 1 lower die. Thanks to its self-piercing structure, it helps reduce the need for a separate pre-punching step on suitable materials. With the correct press, matching eyelet and proper alignment, the cutting and setting process can be completed in a more practical and controlled way.

Main Advantages

  • Compatible with No. 31 eyelets: Designed for 17 mm / approx. 11/16 in eyelet applications.
  • Self-piercing structure: Helps reduce the need for a separate punching step on suitable materials.
  • Professional finish: Supports a cleaner and more consistent eyelet setting result.
  • Workshop-friendly: Suitable for production, repair, sampling and custom project applications.
  • Metal body: Built with a durable iron/metal construction for regular use.
  • Press compatibility: Can be used with standard hand presses and suitable impact press systems.

Package Content

Product Code KLP0031D
Model No. 31
Compatible Eyelet Size 17 mm / approx. 0.67 in / close to 11/16 in inner diameter eyelet

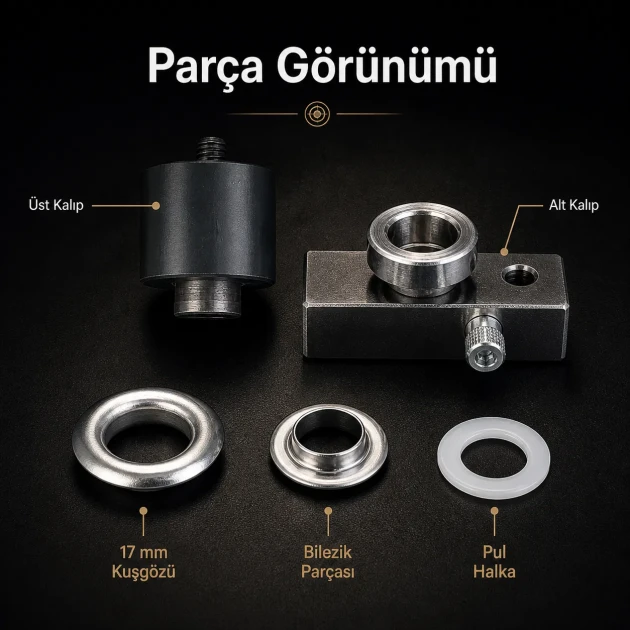

Package Content 1 upper die + 1 lower die
Product Type Self-piercing eyelet mounting die set
Material Metal / Iron
Press Compatibility Standard hand presses and suitable impact press systems

Note: This product does not include eyelets, washers or a press machine. The package includes only 1 set of mounting dies. Eyelets, washers and hand press machines should be purchased separately. Before ordering, please check your press thread size and connection type for compatibility.

Application Areas

The No. 31 - 17 mm / approx. 11/16 in eyelet die set can be used for tarpaulins, awnings, banners, bags, covers, curtains, decorative panels, leather-like materials and technical textile applications. It is especially useful when a wider eyelet opening and a stronger fastening point are required. For the best result, the eyelet size, material thickness, washer selection and press pressure should be compatible with each other.

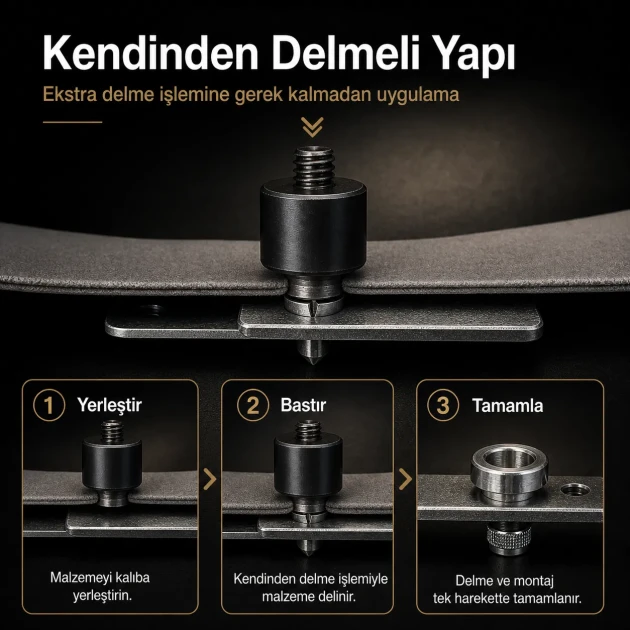

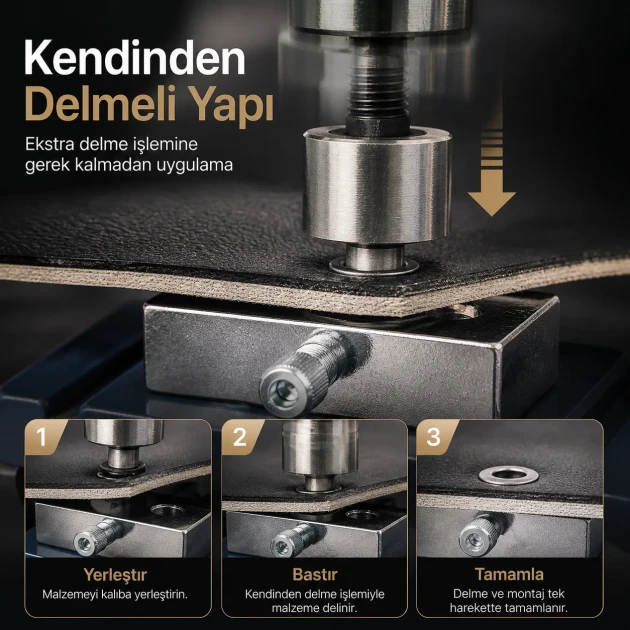

How to Use

  1. Prepare the compatible No. 31 eyelet with a 17 mm / approx. 11/16 in inner diameter and the suitable washer if needed.
  2. Install the upper and lower die correctly on your press machine.
  3. Place the material in the correct position between the dies.
  4. Press down in a controlled way to allow the eyelet to pierce and set into the material.
  5. Before regular production, test the application on the same material to adjust pressure and alignment.

Why Choose a Self-Piercing Eyelet Die?

In standard eyelet applications, the material usually needs to be punched first and the eyelet is then installed in a separate step. A self-piercing die helps simplify this process on suitable materials by supporting cutting and setting during the same press action. This can save time, improve workflow and help achieve a more consistent installation in repetitive applications.

Important Usage Notes

  • Use this die only with compatible No. 31 eyelets.
  • Always test first on very thick, hard, elastic or multi-layer materials.
  • Check your press connection size before ordering.
  • If the die alignment is incorrect, the eyelet may not close properly.
  • For a professional result, use the correct eyelet, suitable washer and balanced press pressure.

Frequently Asked Questions

Which eyelet size is this die compatible with?

This die set is compatible with No. 31 eyelets and is designed for 17 mm / approx. 0.67 in / close to 11/16 in inner diameter eyelet applications.

What does self-piercing mean?

A self-piercing die helps pierce and set the eyelet during the same press action on suitable materials, reducing the need for a separate pre-punching step.

What is included in the package?

The package includes 1 upper die and 1 lower die. It is supplied as 1 complete eyelet mounting die set.

Is the press machine included?

No. This product includes only the die set. The hand press machine, eyelets and washers are sold separately unless otherwise stated.

Which machines can this die be used with?

It can be used with standard hand presses and suitable impact press systems. Please check the connection and thread size of your press before ordering.

Where can this die be used?

It can be used for tarpaulin, awning fabric, banners, bags, covers, curtains, decorative textile panels and technical textile applications.
